ABS Module DTC Chart
Anti-Lock Control
DTC Charts

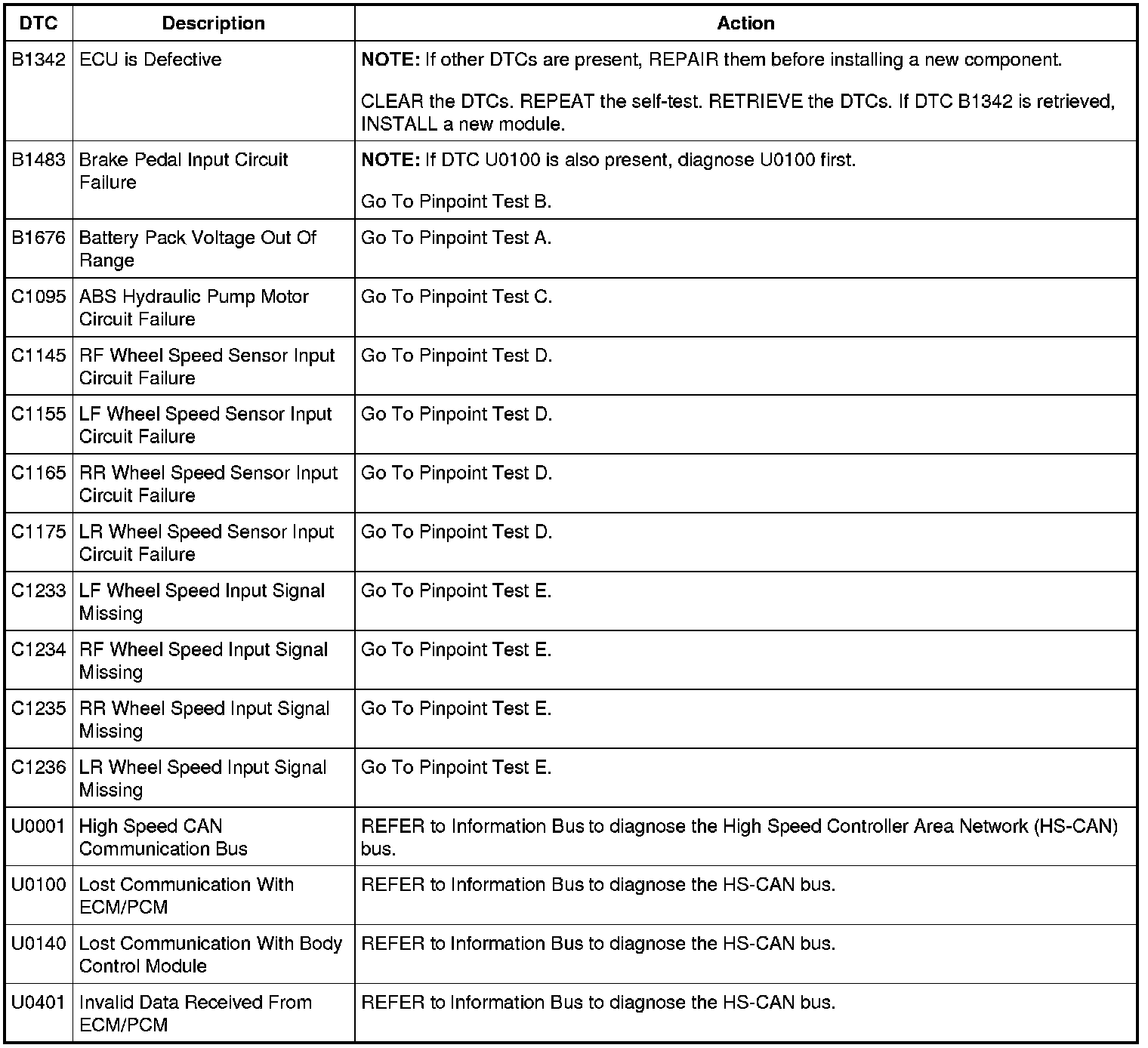

ABS Module DTC Chart
B1342-B1676 / C1095-C1236 / U0001-U0401:
