Lower End Components - Exploded View
Lower End Components - Exploded View

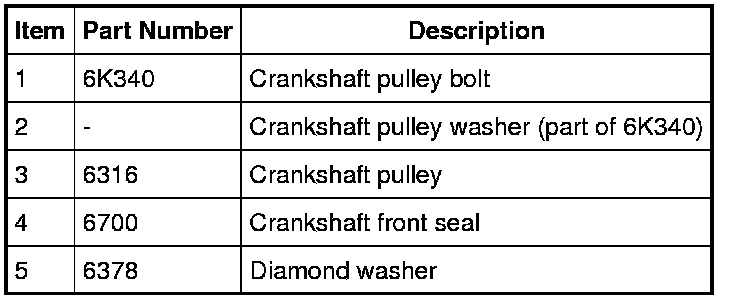

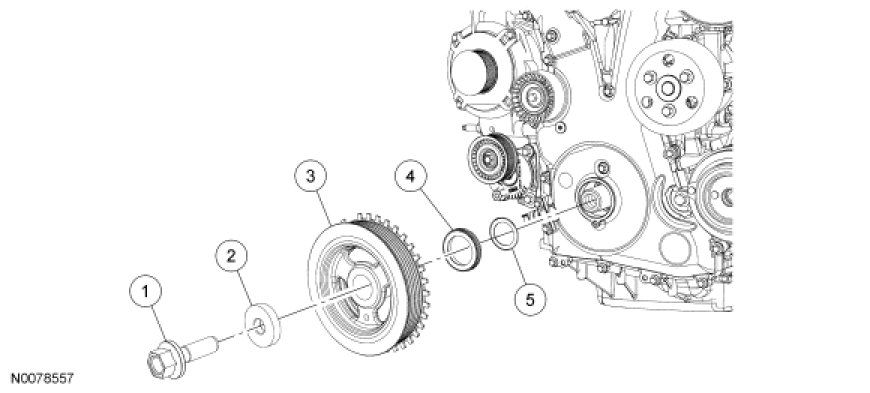

Crankshaft Pulley and Crankshaft Front Seal

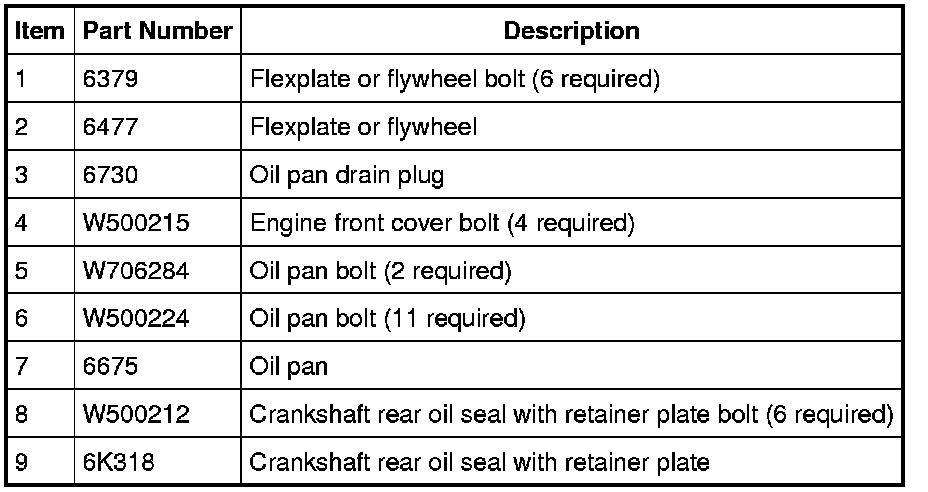

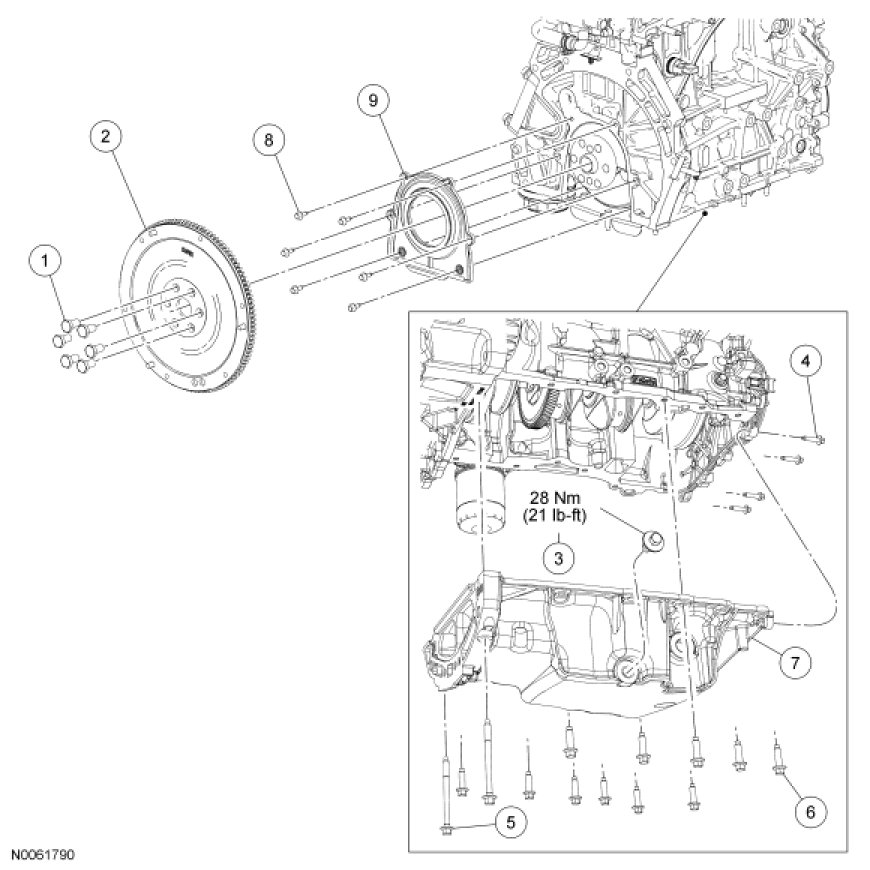

Flexplate, Flywheel and Crankshaft Rear Seal With Retainer Plate
1. For additional information, refer to the procedures.
Lower End Components - Exploded View
Crankshaft Pulley and Crankshaft Front Seal
Flexplate, Flywheel and Crankshaft Rear Seal With Retainer Plate
1. For additional information, refer to the procedures.
