DA - Intake Air Temperature (IAT) Sensor

PINPOINT TEST DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

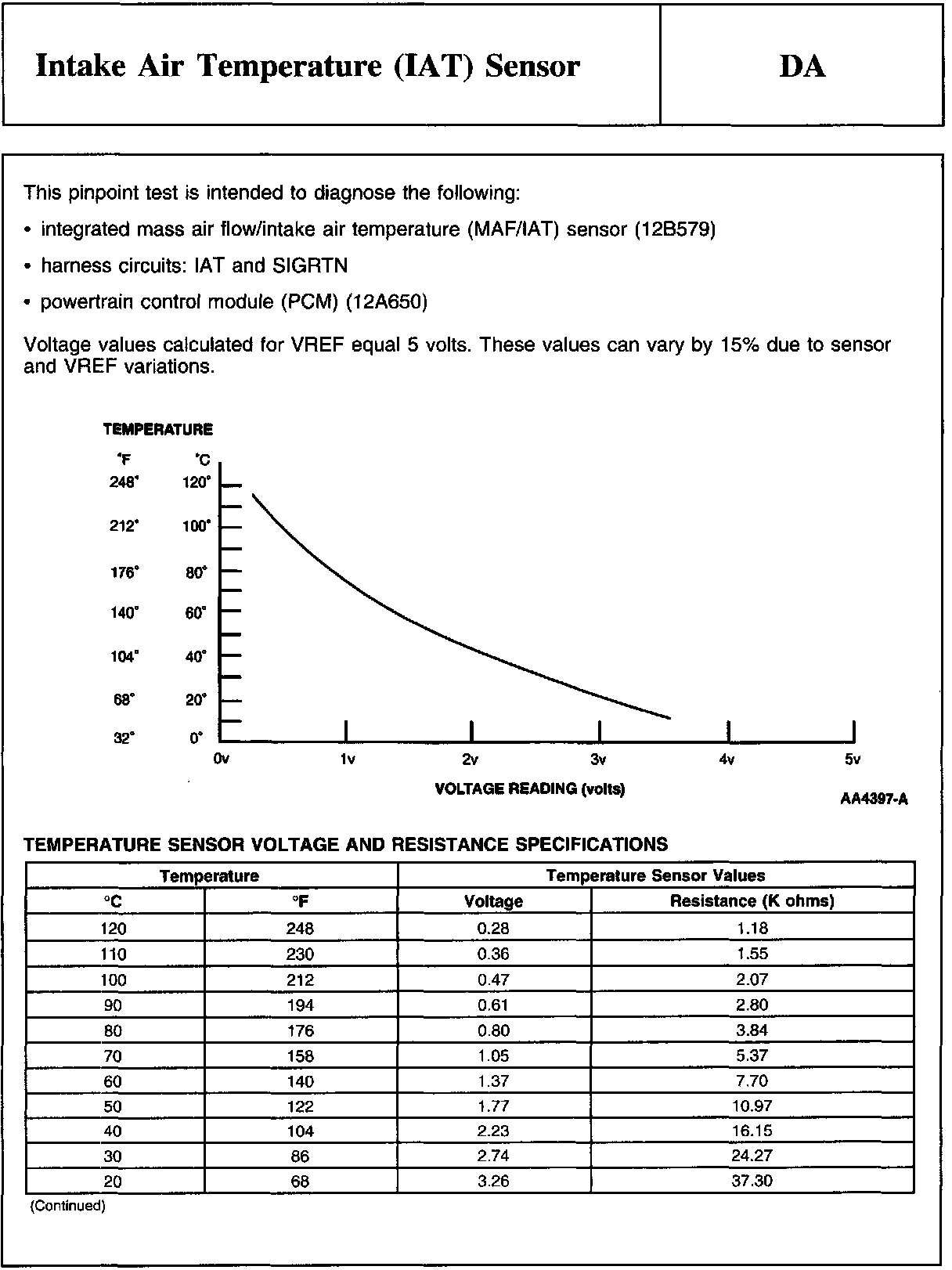

Temperature Sensor Voltage And Resistance Graph And Specifications:

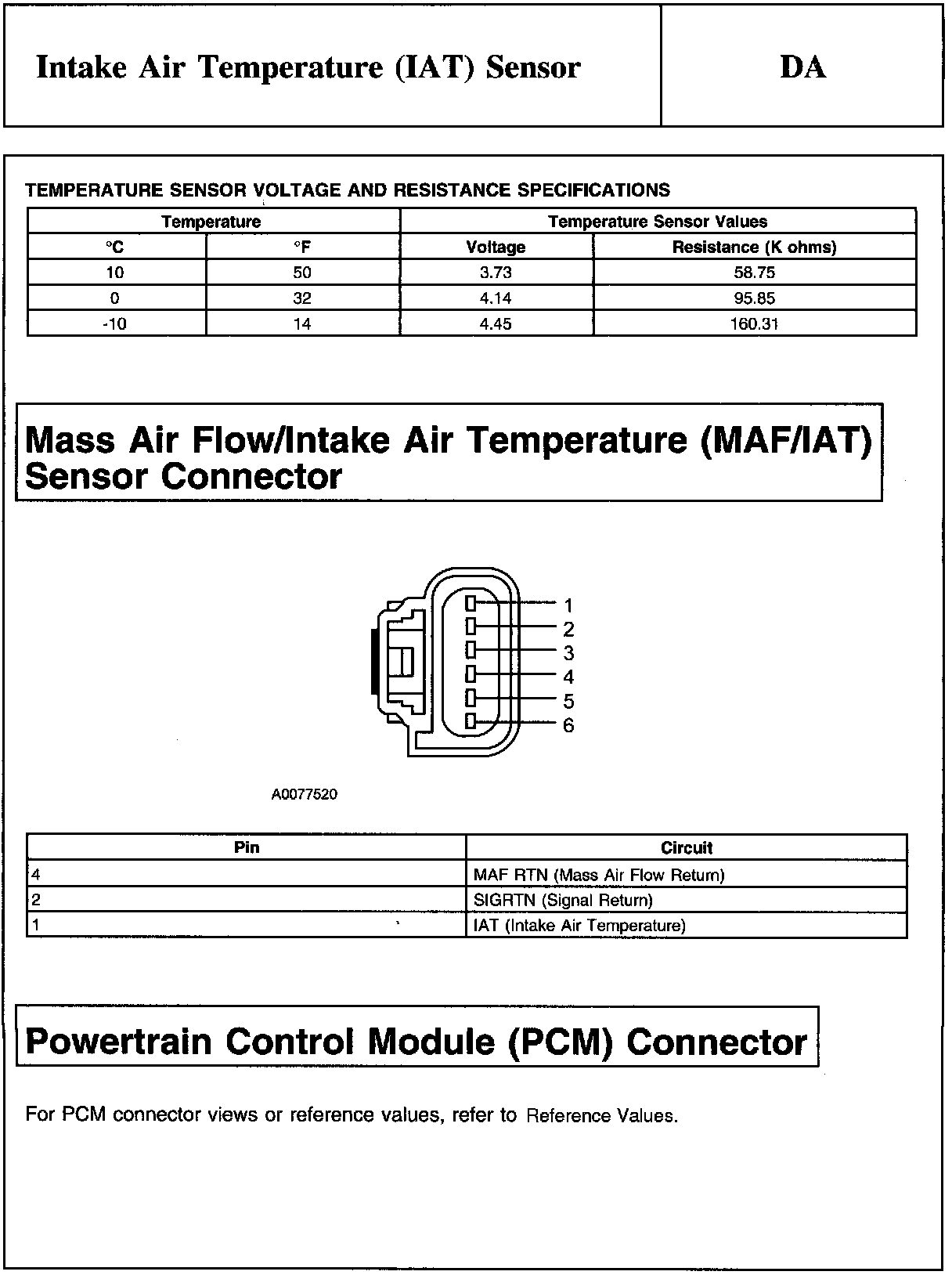

Mass Air Flow/Intake Air Temperature Sensor And Powertrain Control Module Connector:

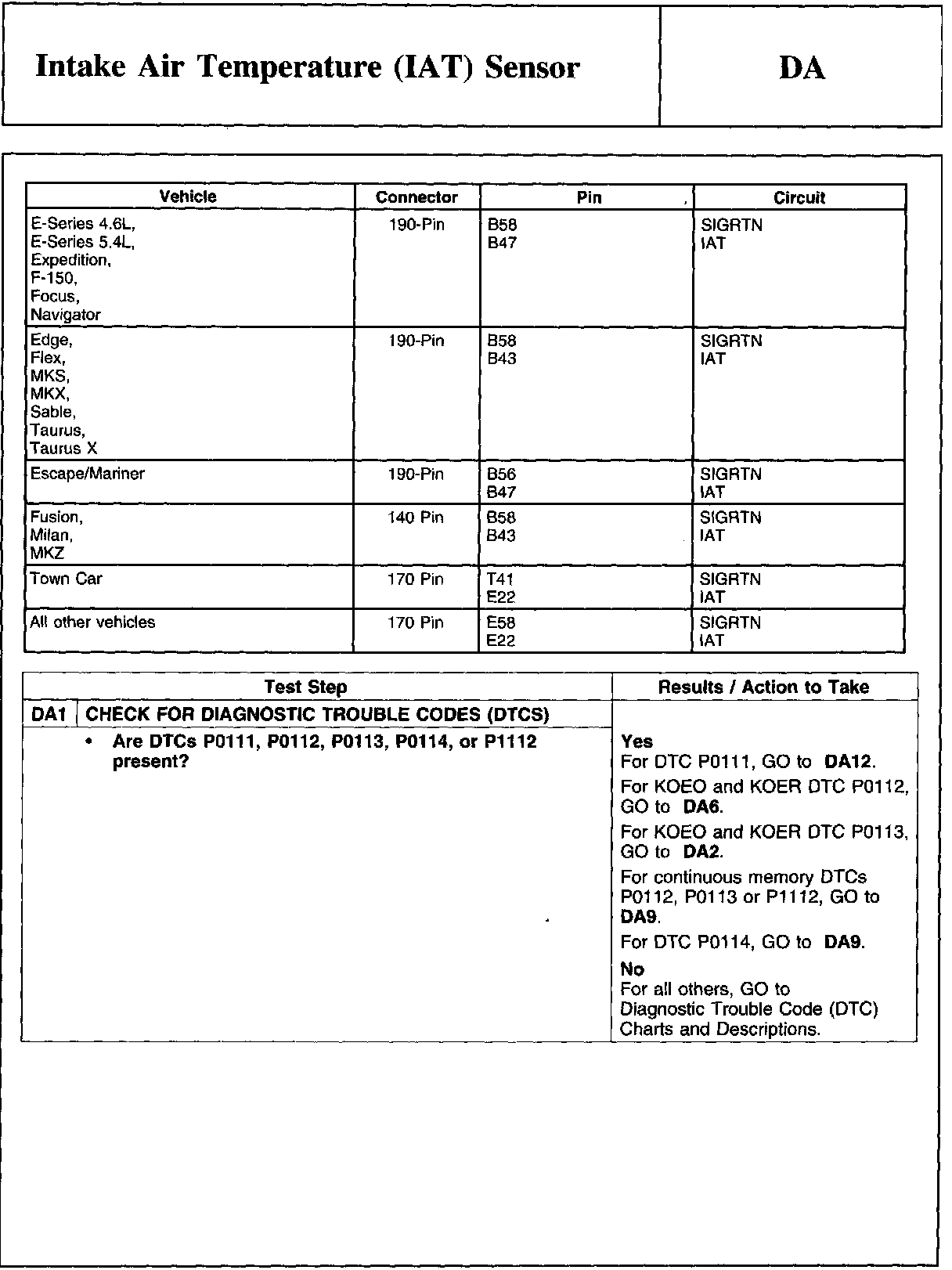

DA1:

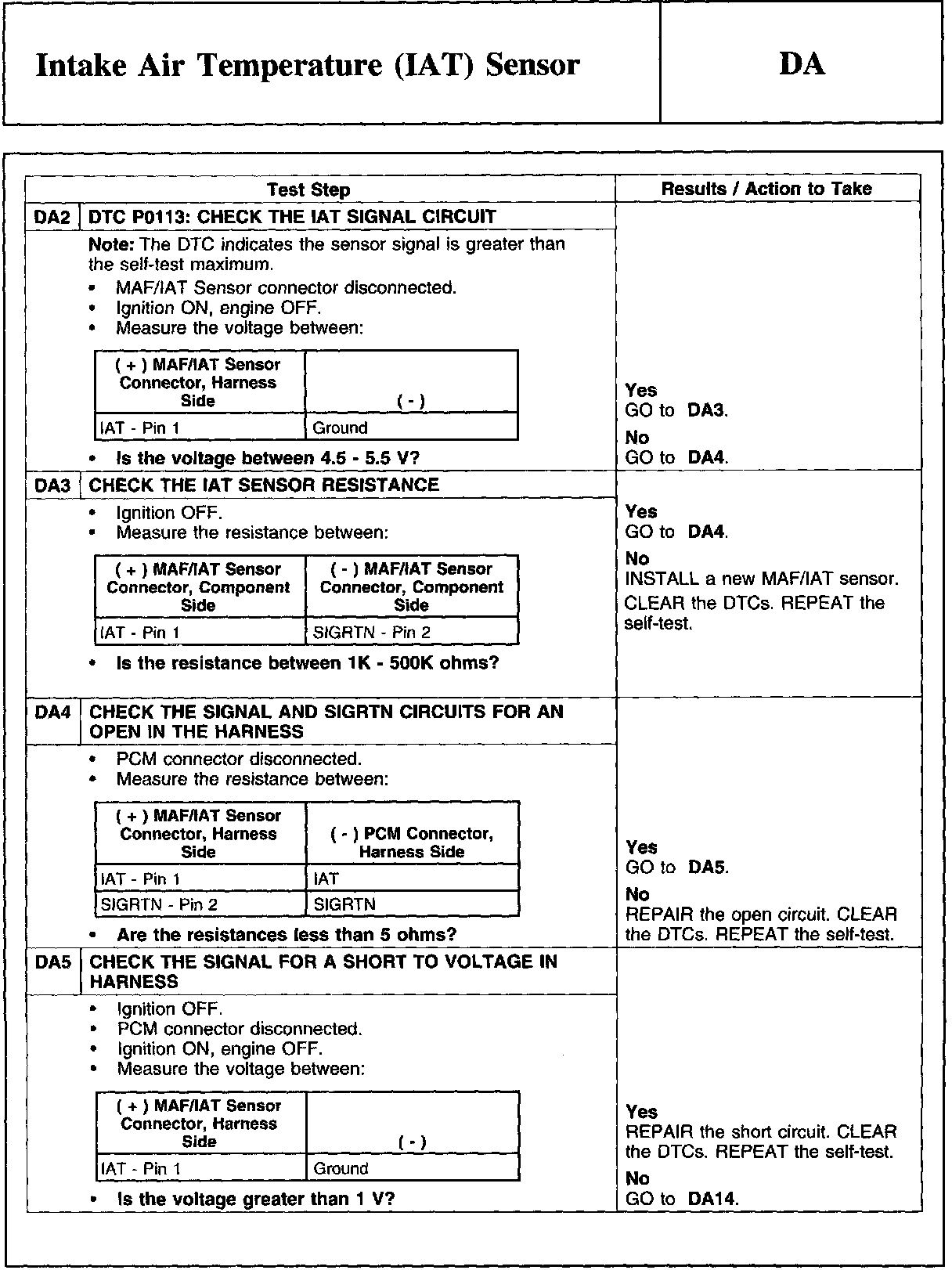

DA2-DA5:

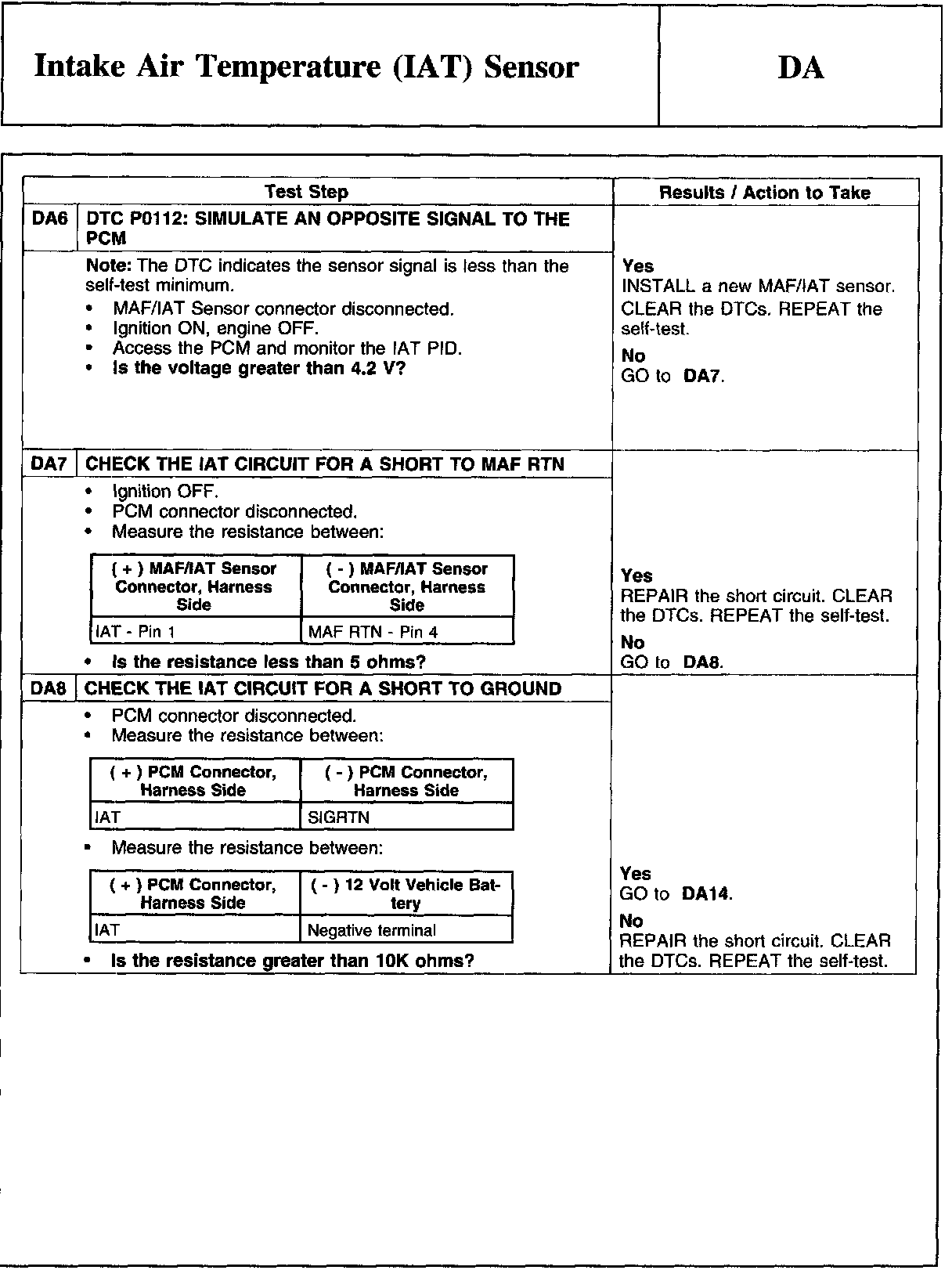

DA6-DA8:

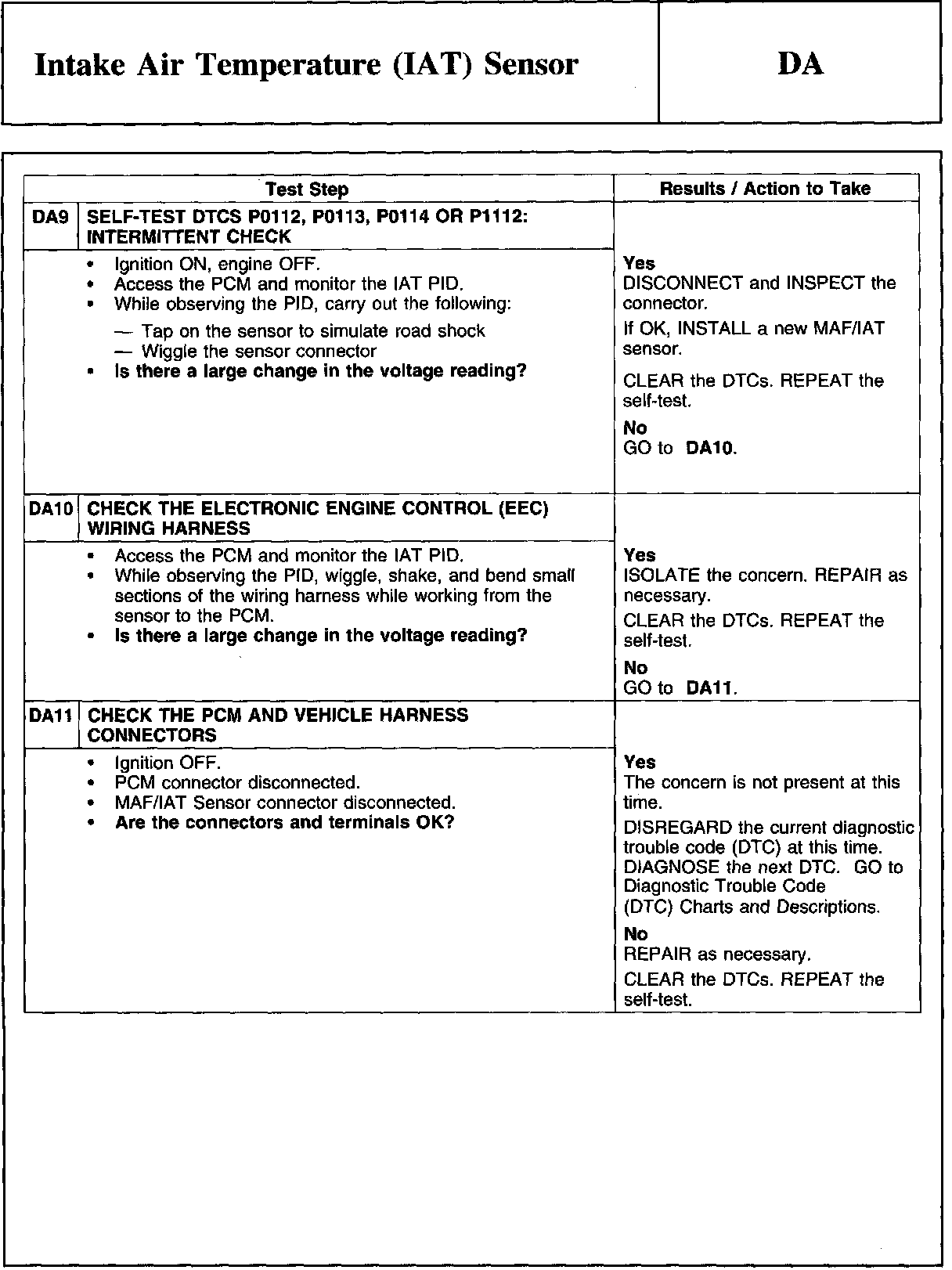

DA9-DA11:

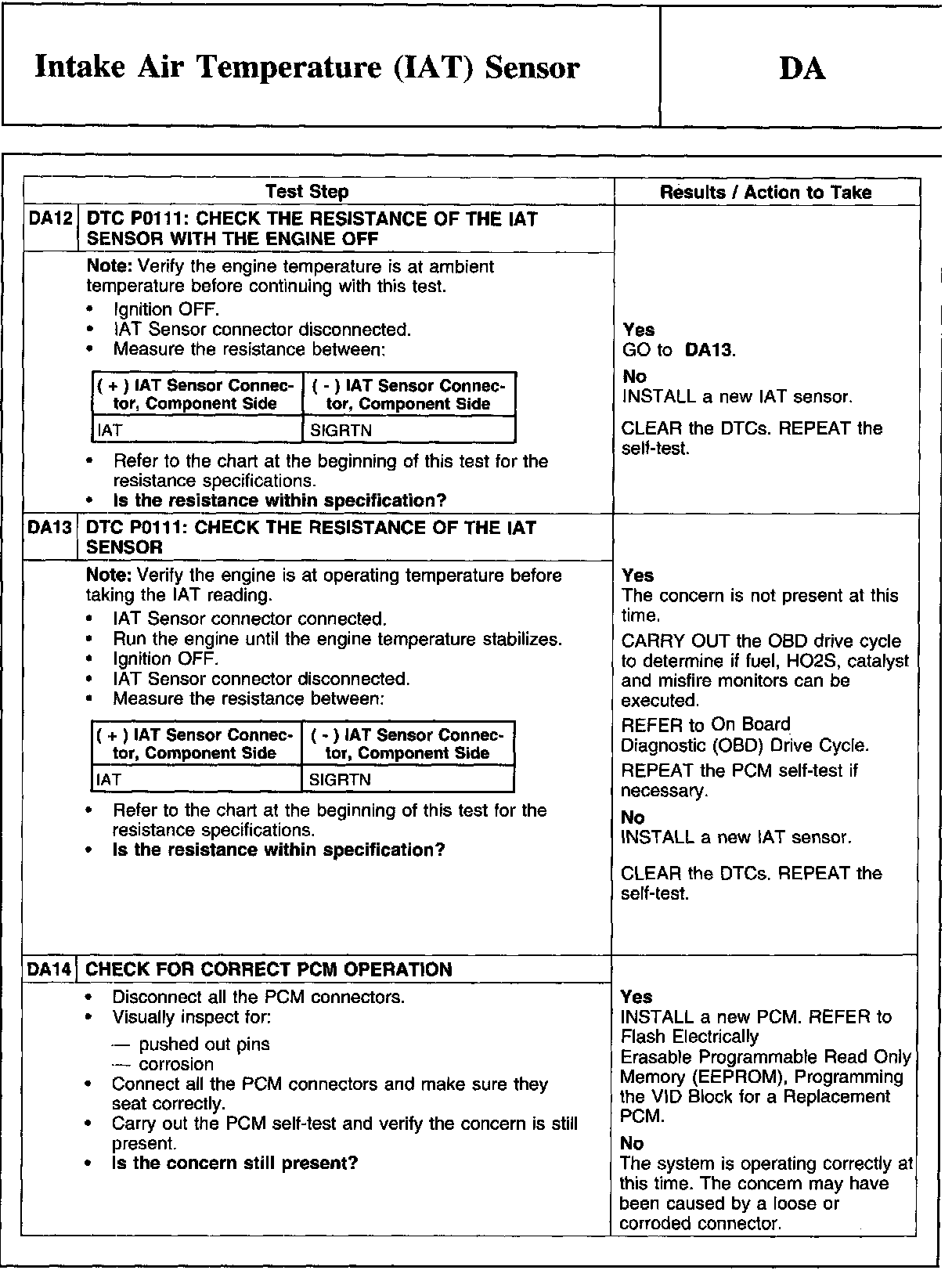

DA12-DA14:
