DX - Engine Coolant Temperature (ECT) Sensor

PINPOINT TEST DX: ENGINE COOLANT TEMPERATURE (ECT) SENSOR

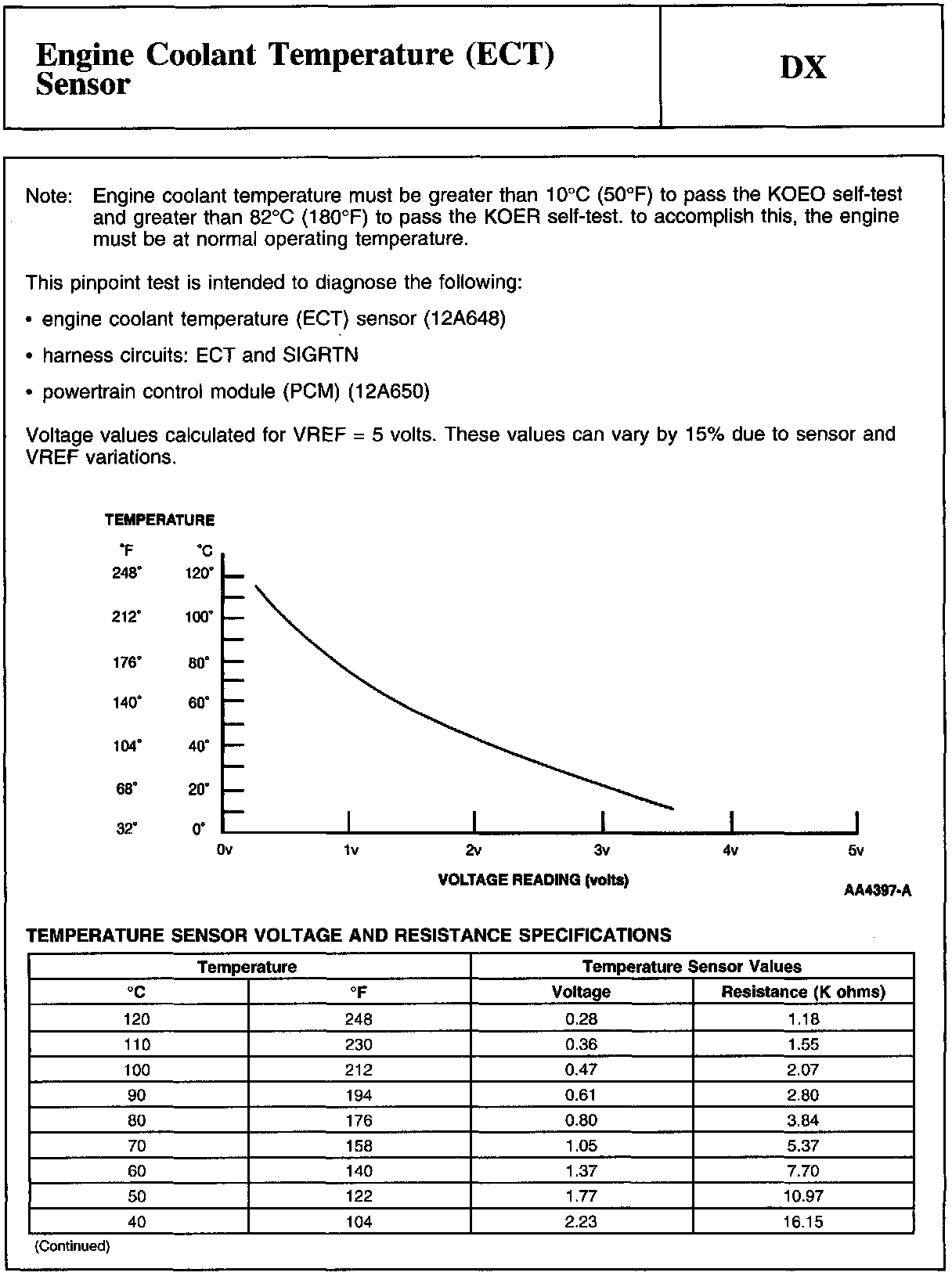

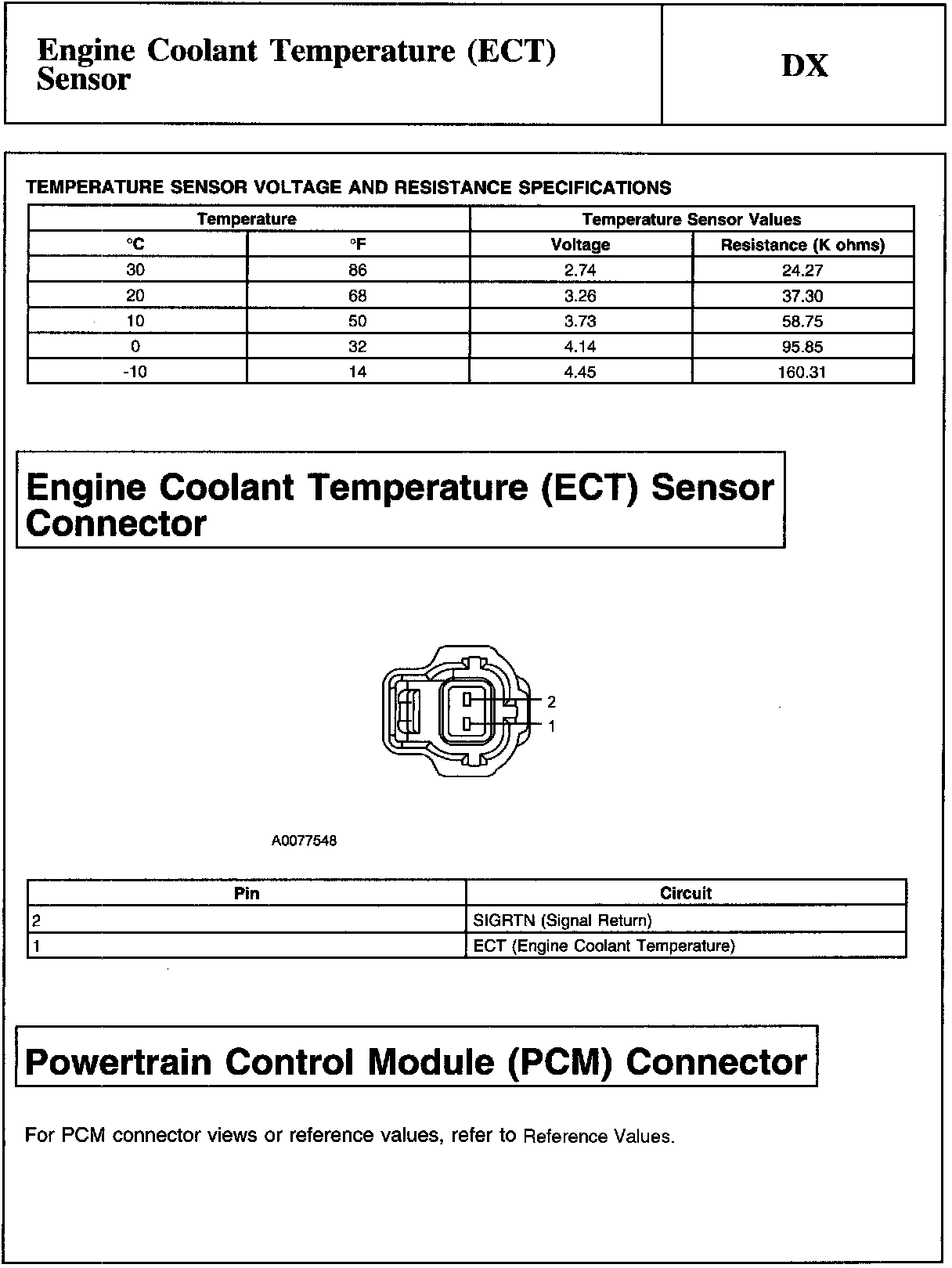

Note And Temperature Sensor Voltage And Resistance Graph And Specifications:





Engine Coolant Temperature Sensor And Powertrain Control Module Connector:

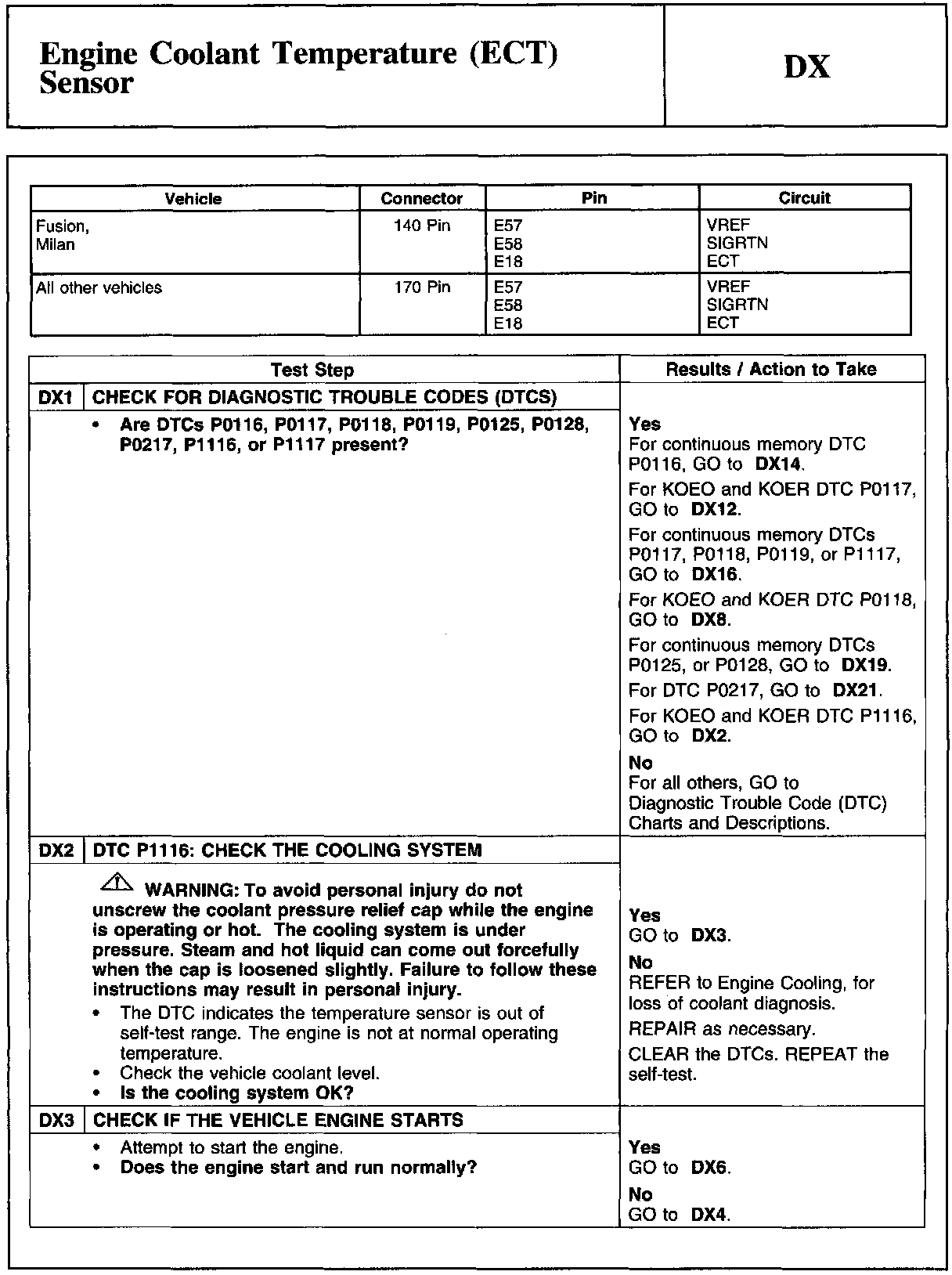

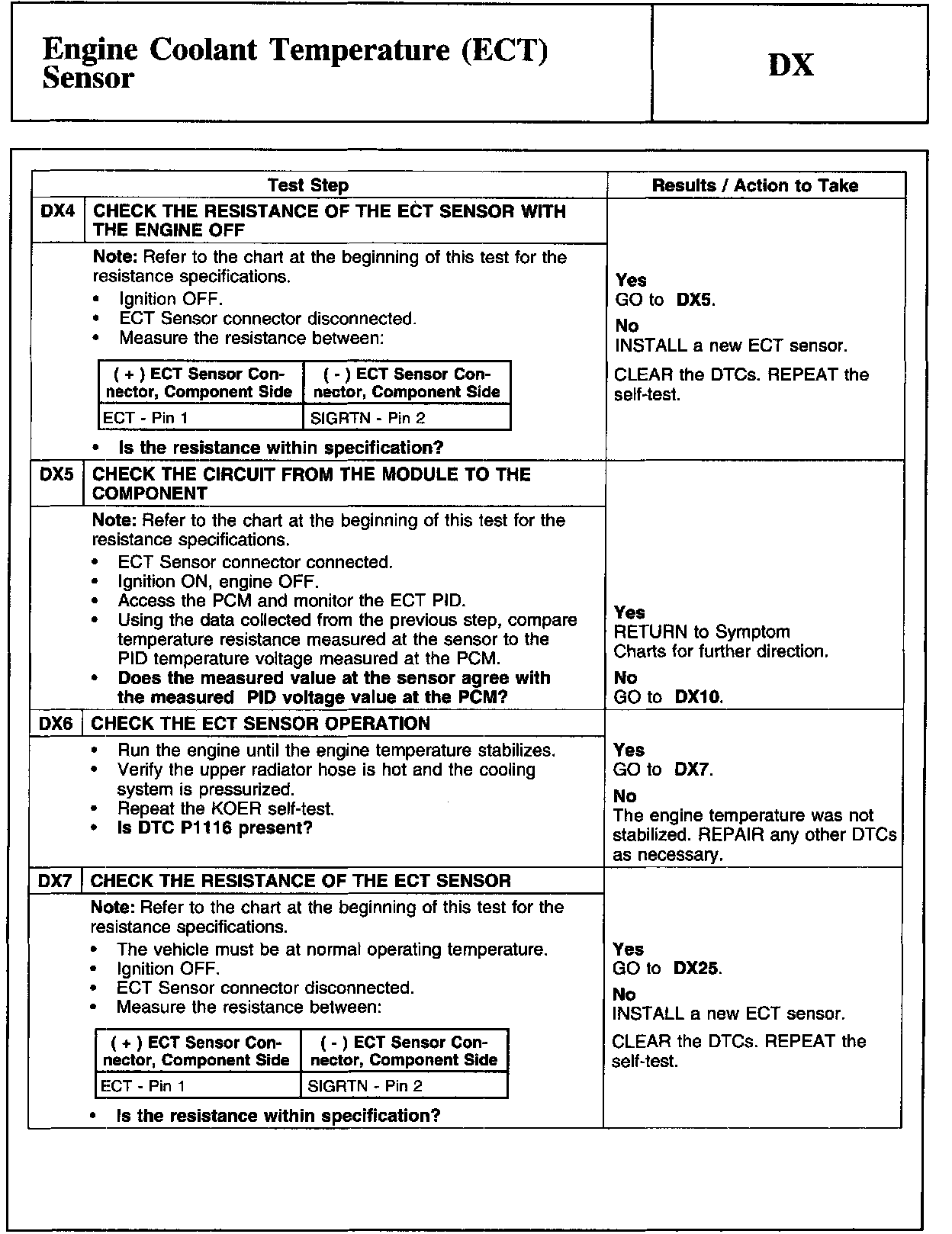

DX1-DX3:





DX4-DX7:

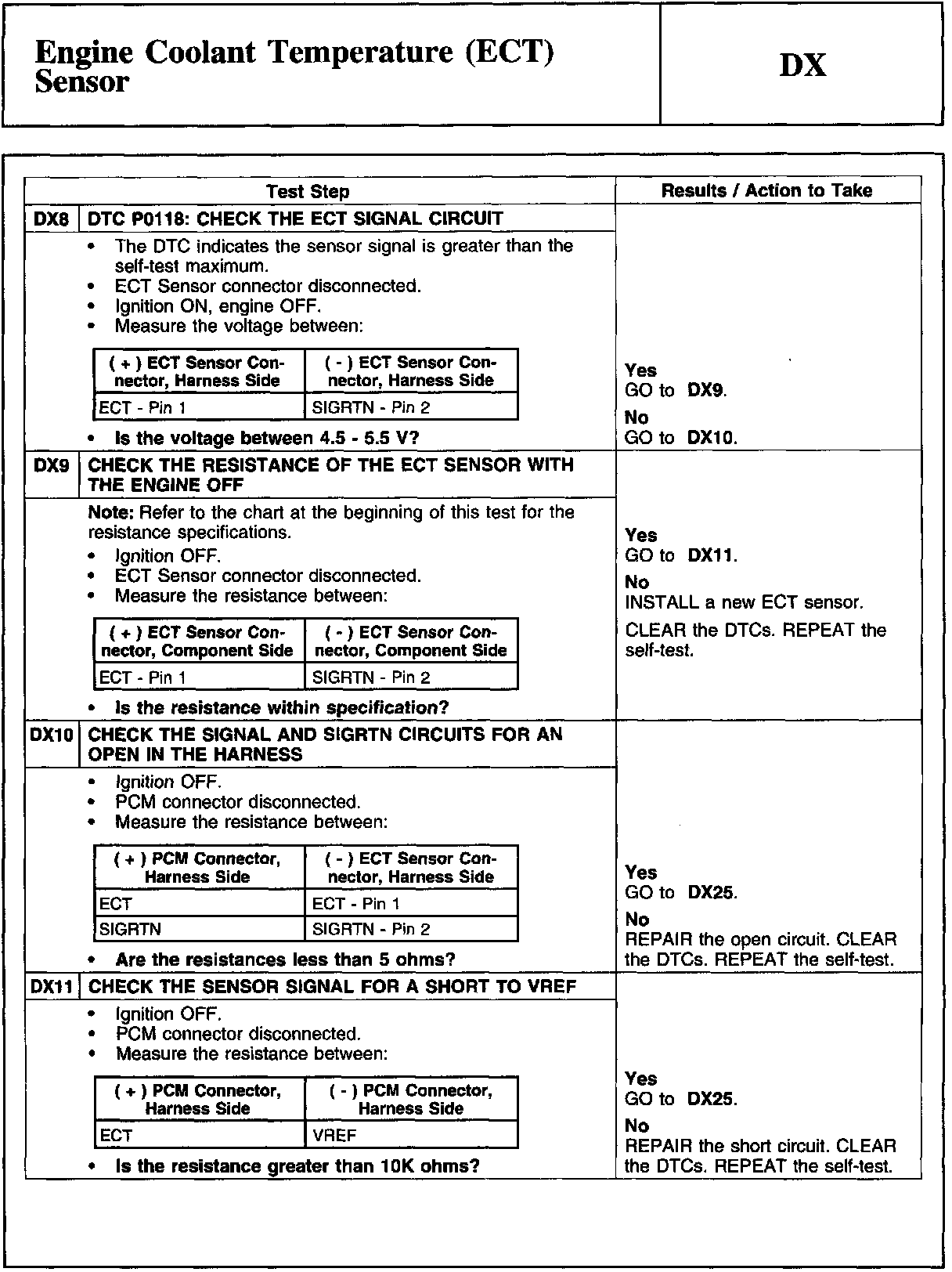

DX8-DX11:

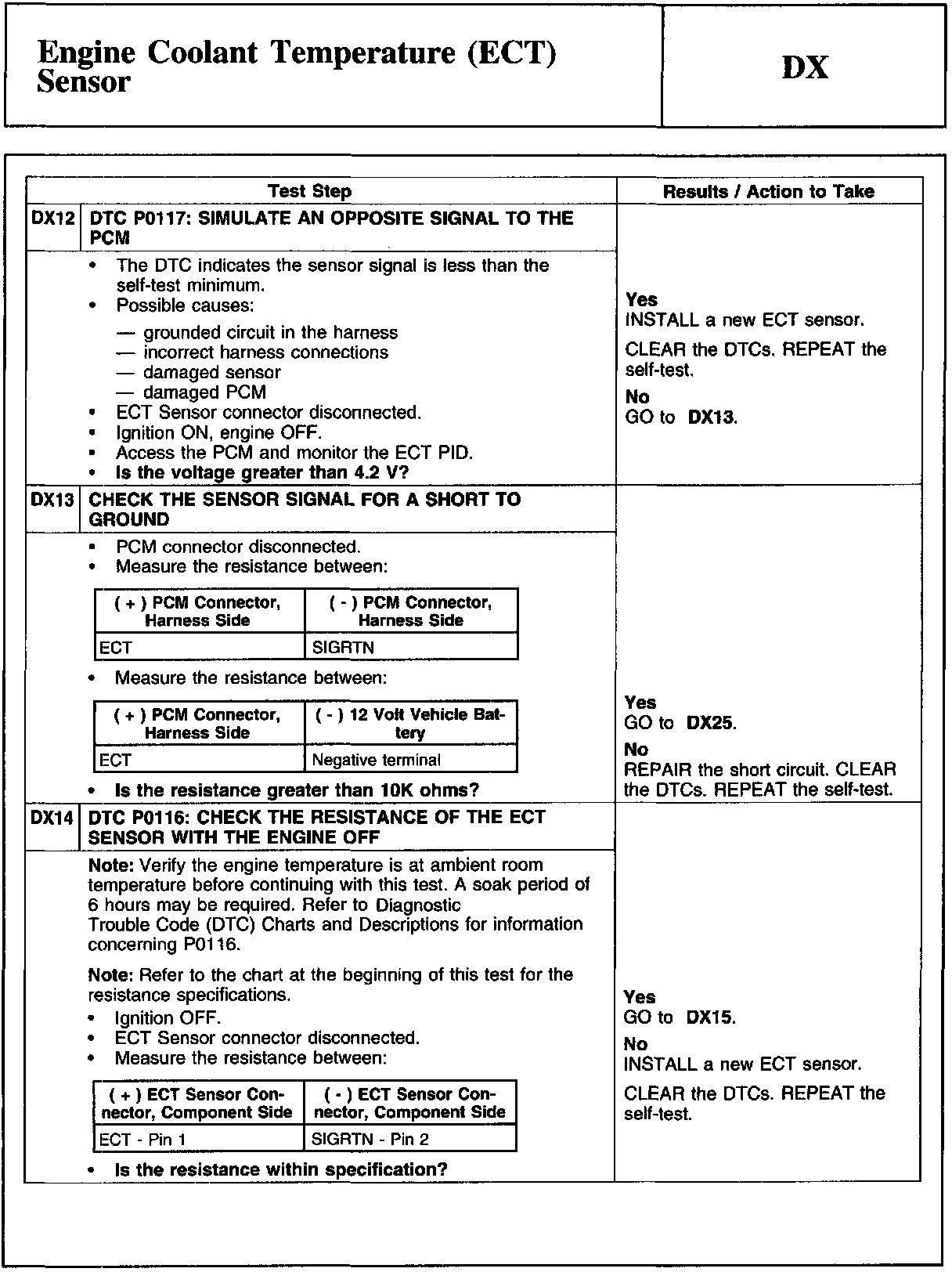

DX12-DX14:

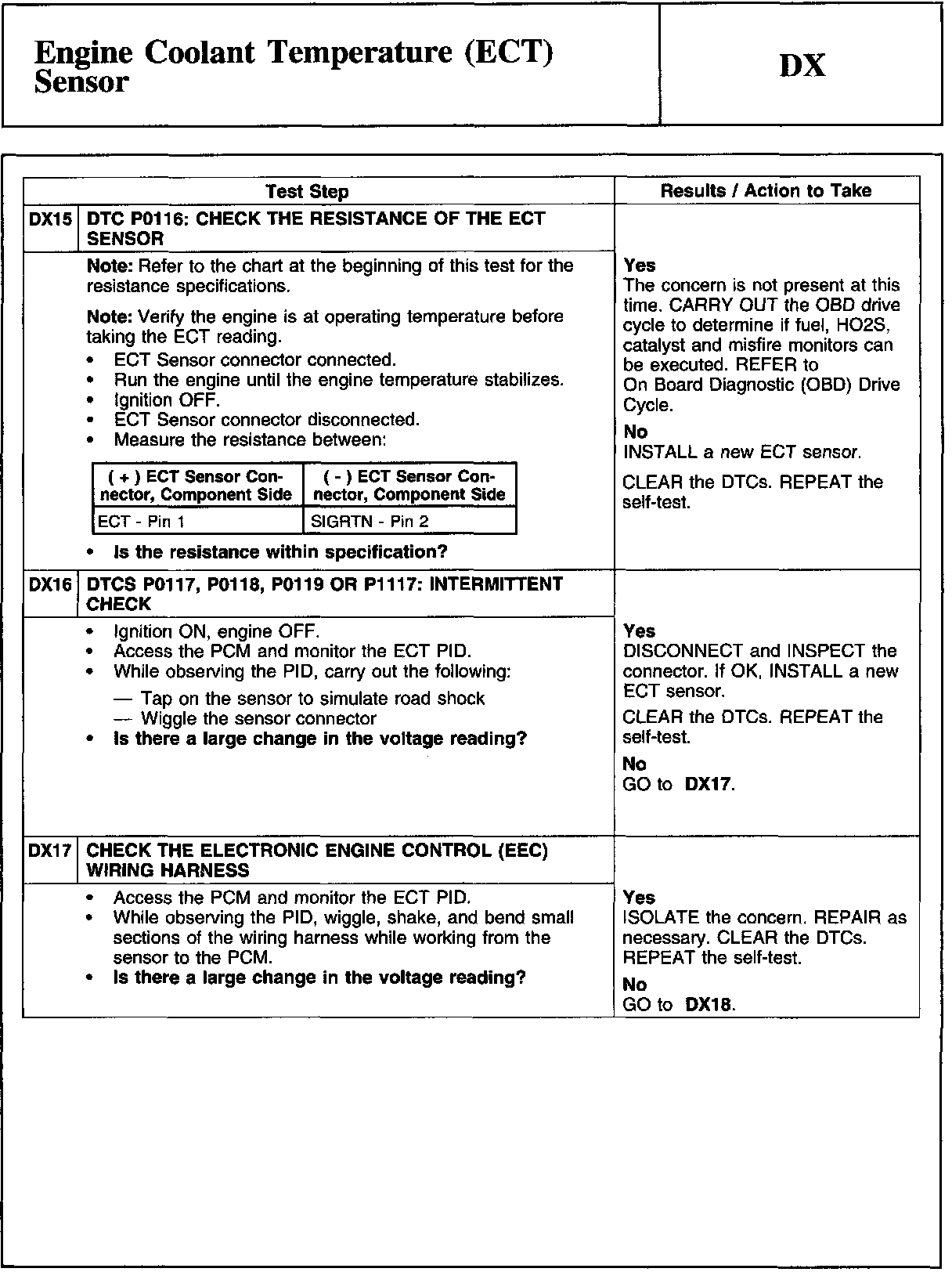

DX15-DX17:

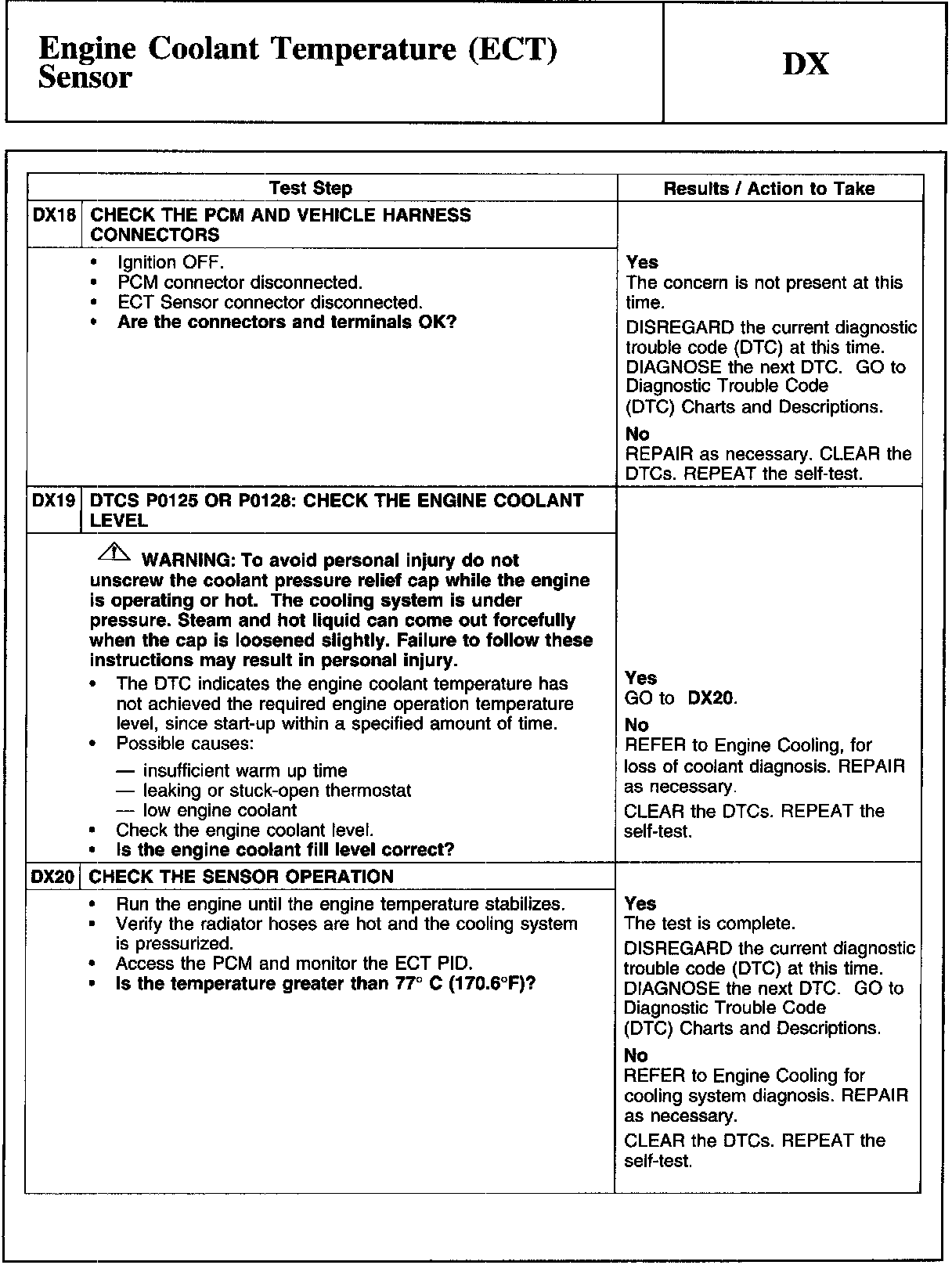

DX18-DX20:

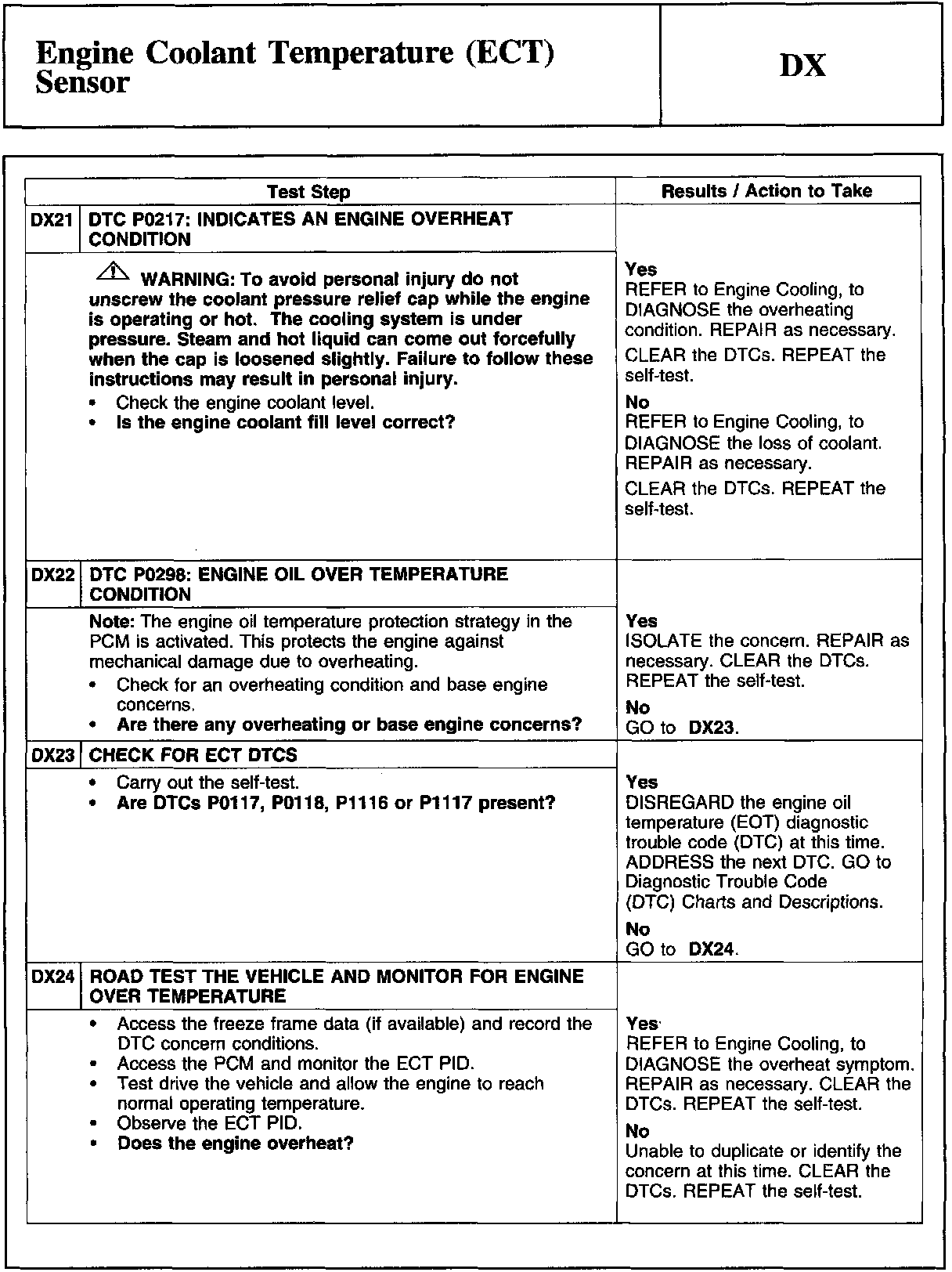

DX21-DX24:

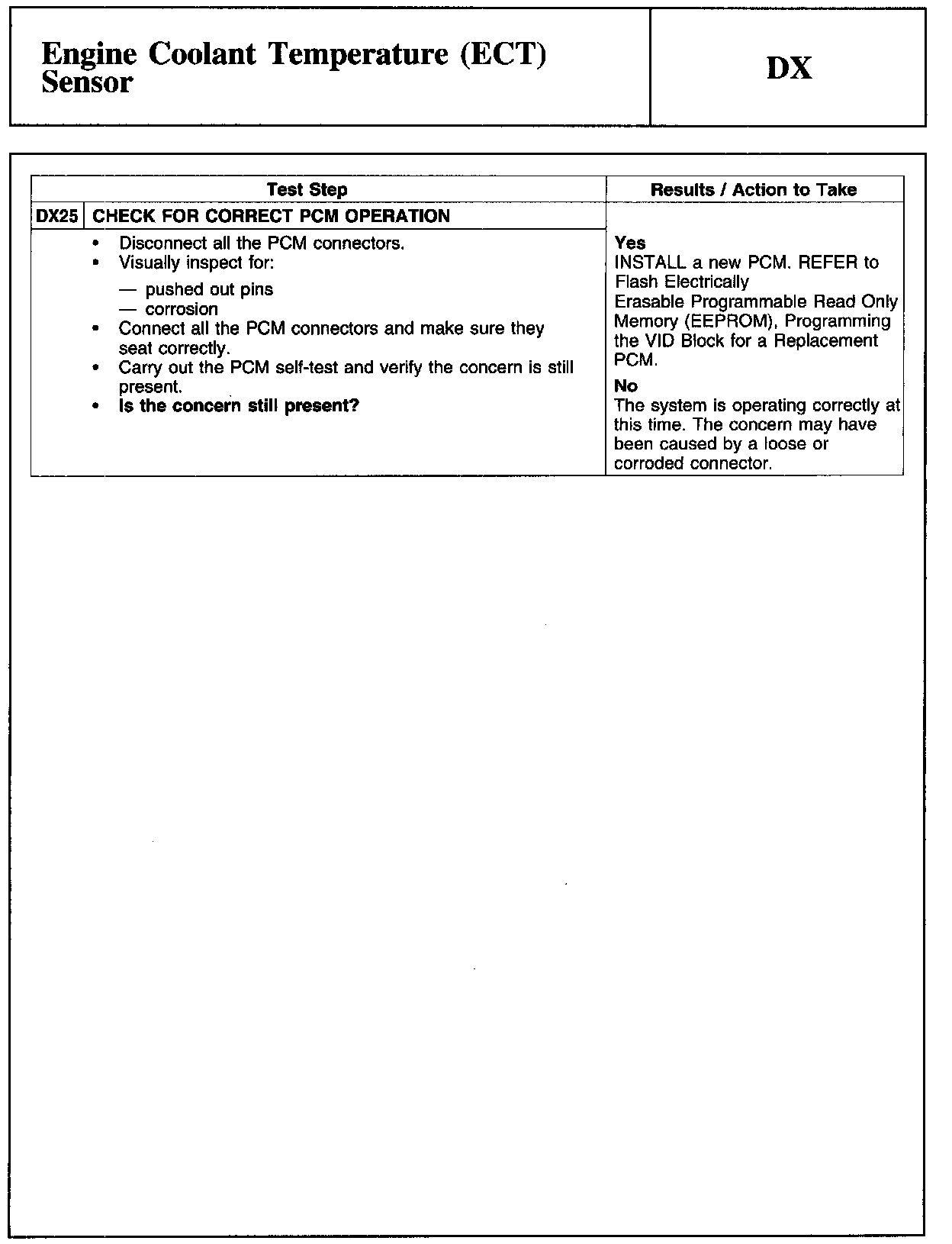

DX25:
