Wiper and Washer Systems: Service and Repair

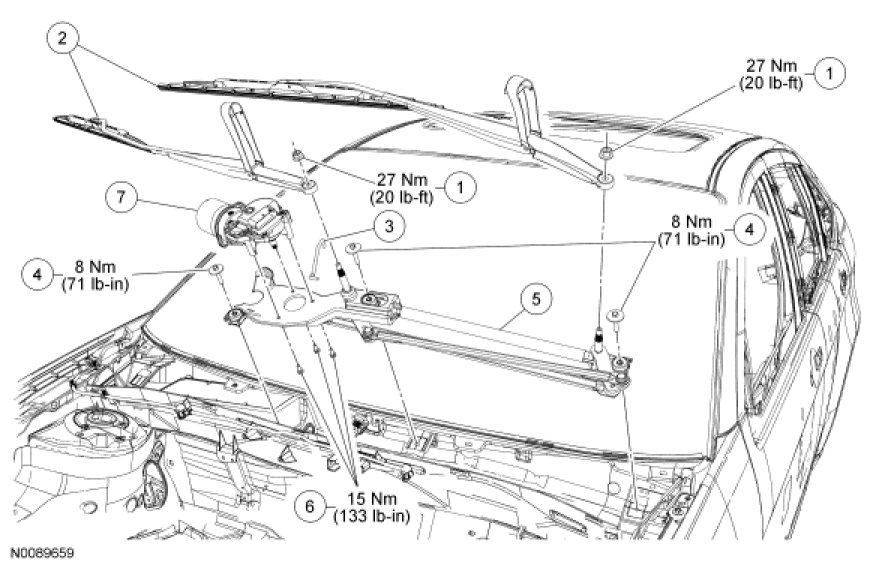

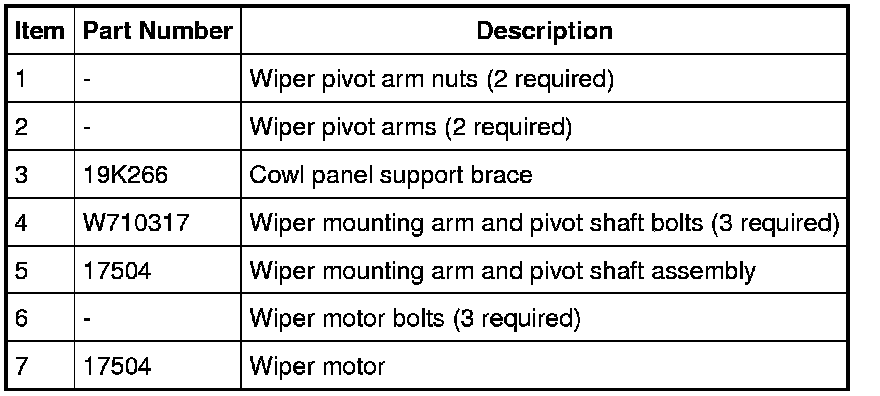

Wiper and Washer System - Exploded View

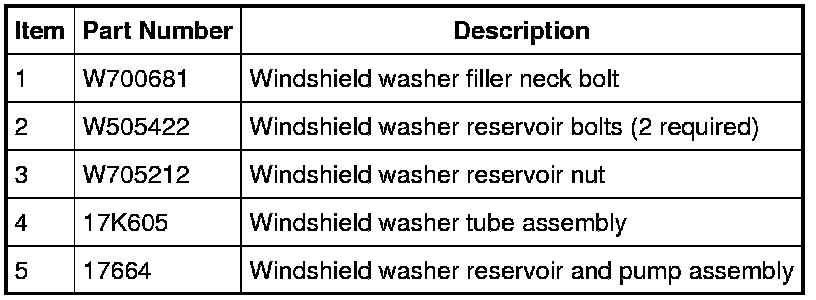

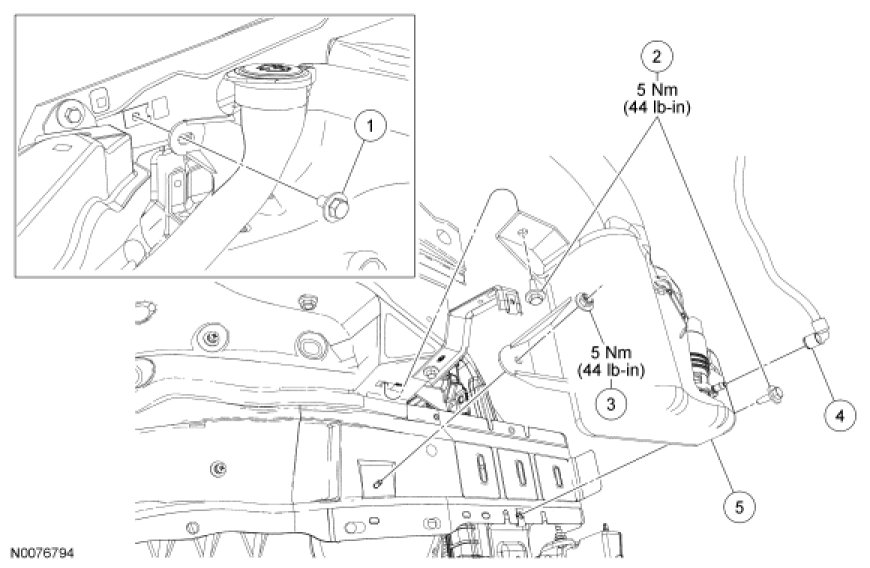

Windshield Washer Pump and Reservoir Exploded View









1. For additional information, refer to the procedures.
