Audio Control Module (ACM): Notes

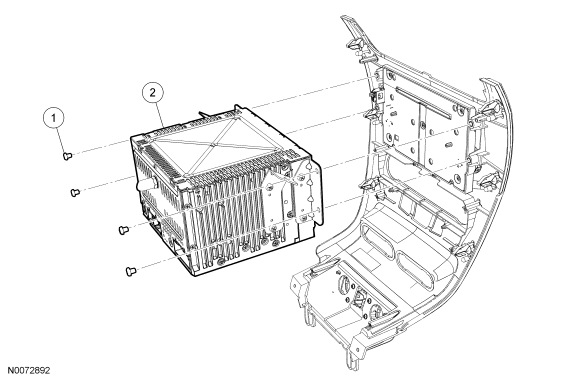

Fig 1: Identifying Audio Control Module (ACM) & Screws
GF0043610Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W790110-S Audio Control Module (ACM) screws (4 required)
2 18806 ACM
