Front Display Interface Module (FDIM): Notes

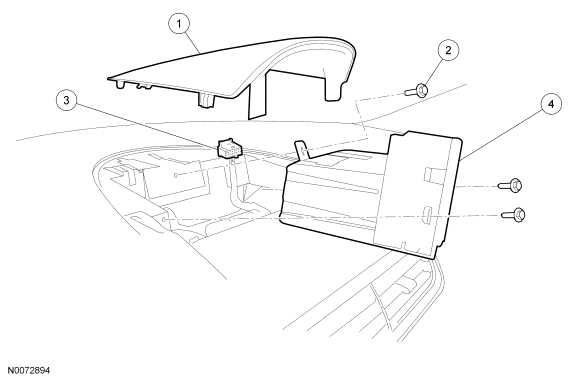

Fig 1: Identifying Front Display Interface Module Components
GF0043614Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7804302 Instrument panel upper finish panel
2 W710147-S Front Display Interface Module (FDIM) screws (3 required)
3 - FDIM electrical connector (part of 14401)
4 14D008 FDIM
