Steering Column Shaft: Notes

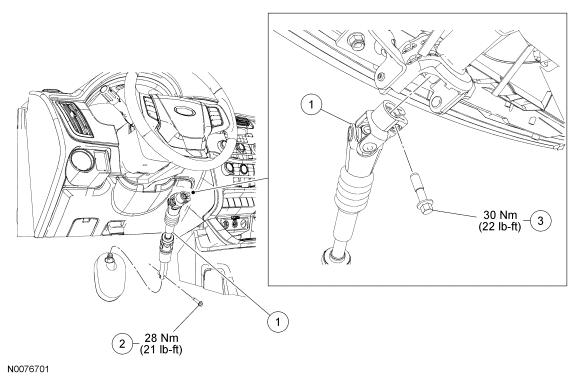

Fig 1: Steering Column Shaft Components With Torque Specifications
GF0043479Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3B676 Upper steering column shaft
2 W706229 Upper steering column shaft-to-lower steering column shaft bolt
3 W712882 Upper steering column shaft-to-steering column bolt
