Selector Lever Bezel: Installation

NOTE: Be sure that the brake shift interlock override lever is inserted in the brake shift interlock override lever guide or the brake shift interlock override button will not work correctly.

NOTE: Selector lever assembly removed for clarity.

Install the selector lever bezel on the selector lever.
- Position the brake shift interlock override in the brake shift interlock override lever guide.
- Make sure that the 3 locking tabs are locked in place.

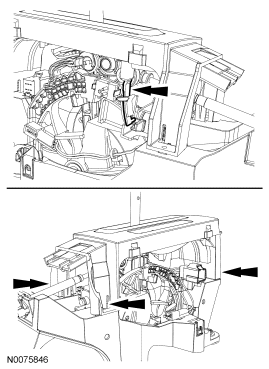

Fig 1: Identifying Selector Lever Bezel

GF0043402

Courtesy of FORD MOTOR CO.

Install the TR indicator light bulb in the selector lever bezel and rotate the TR indicator light bulb clockwise to lock it in place.

Fig 2: Identifying Indicator Light Bulb

GF0043400

Courtesy of FORD MOTOR CO.

Route the wiring harness through the selector lever bezel and position the selector lever knob and shroud onto the selector lever.

Fig 3: Positioning Selector Lever Knob

GF0043403

Courtesy of FORD MOTOR CO.

Install the 2 selector lever knob screws.
- Tighten to 2 Nm (18 lb-in).

Fig 4: Identifying Knob Screws

GF0043399

Courtesy of FORD MOTOR CO.

Slide the selector lever knob shroud up.

Fig 5: Sliding Selector Lever Knob Shroud Up

GF0043404

Courtesy of FORD MOTOR CO.

NOTE: Selector lever assembly removed for clarity.

Connect the TCS electrical connector.

Fig 6: Identifying Connector

GF0043397

Courtesy of FORD MOTOR CO.

Install the center console trim cover.

Fig 7: Identifying Center Console Trim Cover

GF0043405

Courtesy of FORD MOTOR CO.
