Selector Lever Bezel: Notes

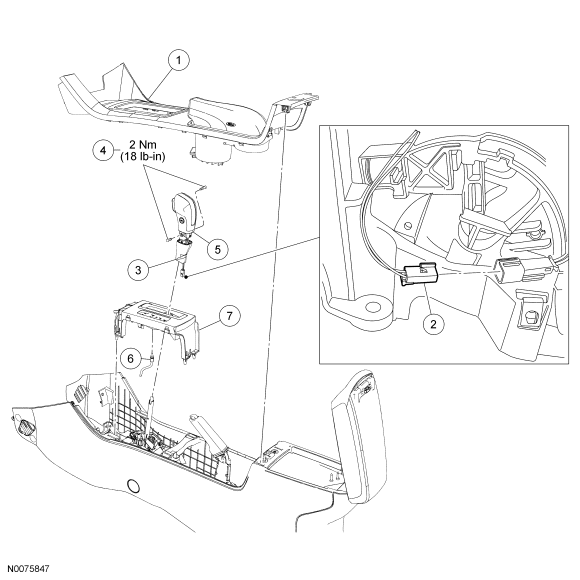

Fig 1: Selector Lever Bezel Components With Torque Specification
GF0043395Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5404567 Center console trim cover
2 7C453 Transmission Control Switch (TCS) electrical connector
3 - Selector lever knob shroud (part of 7L010)
4 W701894-S437 Selector lever knob screws
5 7L010 Selector lever knob
6 7C453 Transmission Range (TR) indicator light bulb
7 7E034 Selector lever bezel
