Selector Lever Cable: Notes

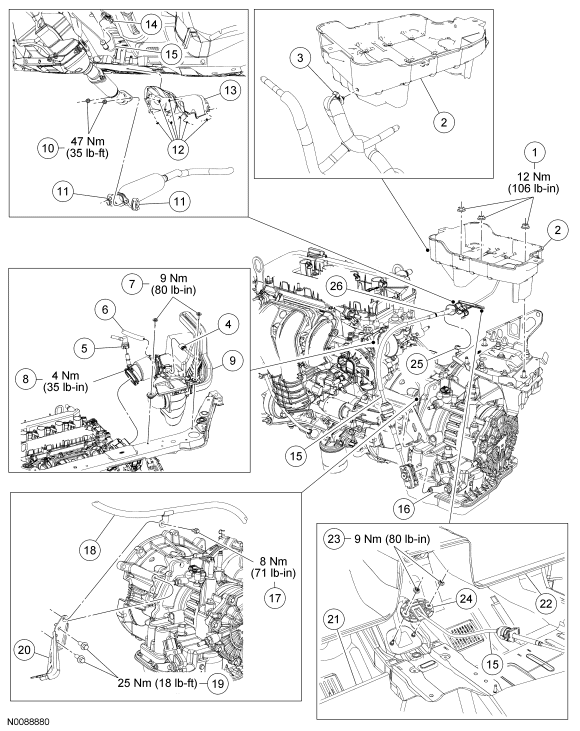

Fig 1: Selector Lever Cable Components - Partial Zero Emissions Vehicle (PZEV) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W700069 | Battery tray nuts (3 required) |
| 2 | 10723 | Battery tray |
| 3 | 14A169 | Engine wiring harness retainer |
| 4 | 14A464 | Mass Air Flow (MAF) sensor electrical connector |
| 5 | 6758 | Tube assembly - crankcase vent |
| 6 | - | Vacuum hose - brake booster |
| 7 | 9C632 | Air Cleaner (ACL) inlet tube clamp |
| 8 | 9C632 | ACL outlet tube clamp |
| 9 | 9C662 | ACL assembly |
| 10 | W705443 | Exhaust nuts |
| 11 | 5A262 | Exhaust hangers |
| 12 | W709729 | Exhaust heat shield retainers |
| 13 | A11468 | Exhaust heat shield |
| 14 | 4560 | Selector lever cable retainer |
| 15 | 7E395 | Selector lever cable |
| 16 | 7210 | Manual control lever |
| 17 | W505252 | Transmission fluid filler tube bolt |
| 18 | 7A228 | Transmission fluid filler tube |
| 19 | W500023 | Selector lever cable bracket bolts |
| 20 | 7B229 | Selector lever cable bracket |
| 21 | 5411454 | Carpet |
| 22 | 5401688 | Insulation |
| 23 | W702751 | Selector lever cable grommet nuts |
| 24 | - | Selector lever cable grommet (part of 7E395) |
| 25 | 7E364 | Selector lever cable retaining bracket |
| 26 | - | Selector lever cable alignment mark (part of 7E395) |

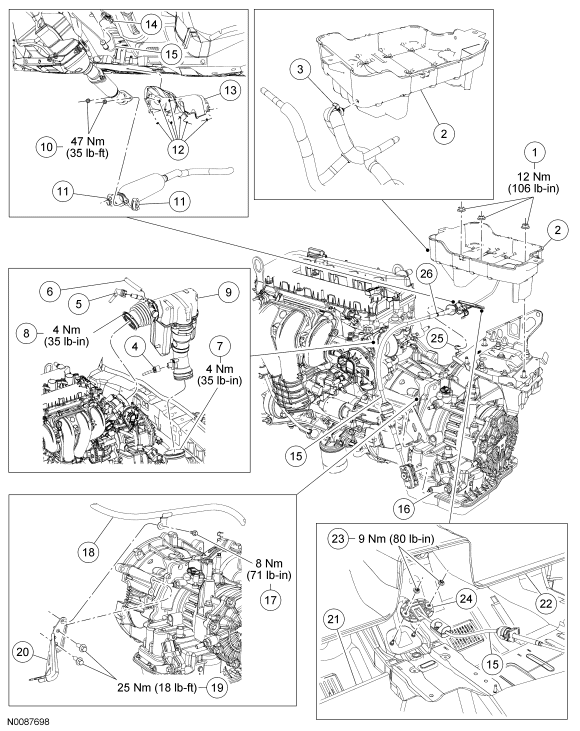

Fig 2: Selector Lever Cable Components - Non-Partial Zero Emissions Vehicle (PZEV) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W700069 | Battery tray nuts (3 required) |
| 2 | 10723 | Battery tray |
| 3 | 14A169 | Engine wiring harness retainer |
| 4 | 14A464 | Mass Air Flow (MAF) sensor electrical connector |
| 5 | 6758 | Tube assembly - crankcase vent |
| 6 | - | Vacuum hose - brake booster |
| 7 | W701389 | Air Cleaner (ACL) assembly bolts |
| 8 | 9C632 | ACL outlet tube clamp |
| 9 | 9C662 | ACL assembly |
| 10 | W705443 | Exhaust nuts |
| 11 | 5A262 | Exhaust hangers |
| 12 | W709729 | Exhaust heat shield retainers |
| 13 | A11468 | Exhaust heat shield |
| 14 | 4560 | Selector lever cable retainer |
| 15 | 7E395 | Selector lever cable |
| 16 | 7210 | Manual control lever |
| 17 | W505252 | Transmission fluid filler tube bolt |
| 18 | 7A228 | Transmission fluid filler tube |
| 19 | W500023 | Selector lever cable bracket bolts |
| 20 | 7B229 | Selector lever cable bracket |
| 21 | 5411454 | Carpet |
| 22 | 5401688 | Insulation |
| 23 | W702751 | Selector lever cable grommet nuts |
| 24 | - | Selector lever cable grommet (part of 7E395) |
| 25 | 7E364 | Selector lever cable retaining bracket |
| 26 | - | Selector lever cable alignment mark (part of 7E395) |
