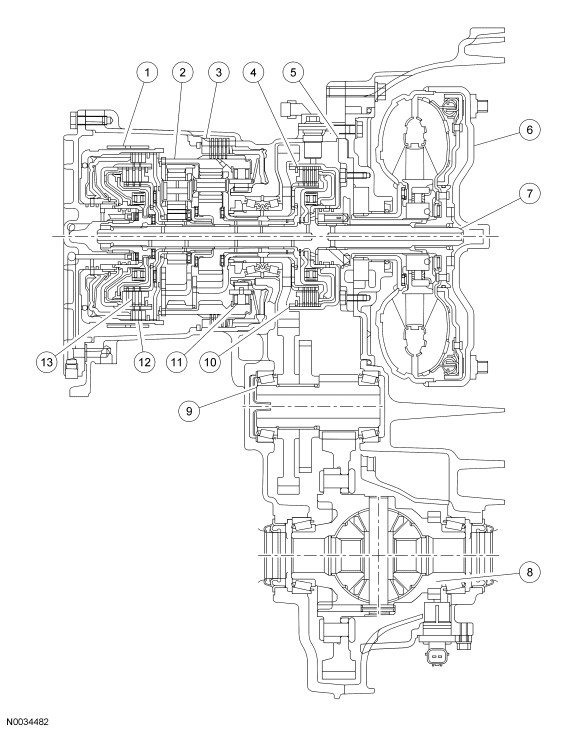

Main Components and Functions: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Intermediate/Overdrive (O/D) band |
| 2 | - | Front ring gear planetary gear sets |
| 3 | - | Low/reverse clutch |
| 4 | - | Forward clutch |
| 5 | - | Pump and stator support |
| 6 | - | Torque converter |
| 7 | - | Transmission input shaft |
| 8 | - | Differential |
| 9 | - | Transfer shaft assembly |
| 10 | - | Final drive input gear |
| 11 | - | Low One-Way Clutch (OWC) |
| 12 | - | Reverse clutch |
| 13 | - | Direct clutch |
