Transaxle Description: Notes

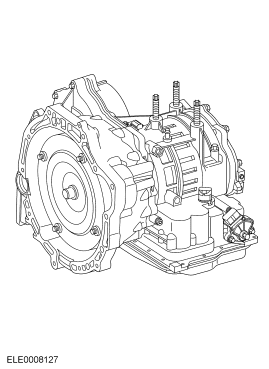

The 4F27E is a fully automatic, electronically controlled 4-speed transaxle designed for Front Wheel Drive (FWD) vehicles.
Its abbreviated designation 4F27E means:
- 4 - 4-speed transmission
- F - FWD
- 27 - originally designed for maximum input torque after torque converter: 365 N.m (270 lb-ft)
- E - fully electronically controlled
The individual ratios are achieved through 2 planetary gear sets, connected one behind the other.
The individual components of the planetary gear sets are driven or held by means of 3 multi-plate clutches, a multi-plate brake, a brake band and a roller One-Way Clutch (OWC).
The torque is transmitted to the final drive assembly through an intermediate gear stage.
The selector lever gives the driver a choice of P, R, N, D and L.
With the selector lever in the D it is possible to operate an Overdrive (O/D) switch on the selector lever to prevent the transaxle from shifting into 4th gear. The default gear for this transaxle is 3rd gear.
To minimize fuel consumption, the torque converter lock-up clutch is closed by the PCM in 3rd and 4th gears depending on the throttle position and vehicle speed.
The transaxle has electronic synchronous shift control, which guarantees extremely smooth gear shifting over the entire life of the transaxle.
A hydraulic emergency operating program maintains limited operation in the event of failure of important electrical components.
The transaxle can be tested using a scan tool through the Data Link Connector (DLC) in the passenger compartment.
| Gear Ratio (Typical shown in illustration, ratios are model dependent) | |
|---|---|
| 1st | 2.816:1 |
| 2nd | 1.498:1 |
| 3rd | 1.000:1 |
| 4th | 0.726:1 |
| Reverse | 2.649:1 |
