Direct and Reverse Clutch Assembly: Notes

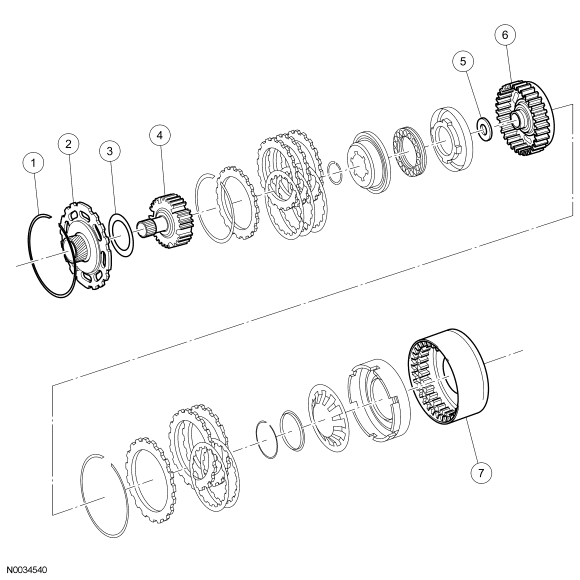

Fig 1: Identifying Direct And Reverse Clutch Assembly Components
GF0039850Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7D483 Snap ring
2 7A019 Rear sun gear assembly
3 7C041 Thrust bearing assembly
4 7H351 Direct clutch hub assembly
5 7H335 Direct clutch thrust bearing
6 7D483 Direct clutch cylinder assembly
7 7D044 Intermediate and Overdrive (O/D) band assembly
