Forward Clutch: Notes
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Spring Washer | 307-209 | |
| Dial Indicator Gauge With Holding Fixture | 100-002 (TOOL-4201-C) |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft MERCON® LV Automatic Transmission Fluid XT-10-QLV |
MERCON® LV |

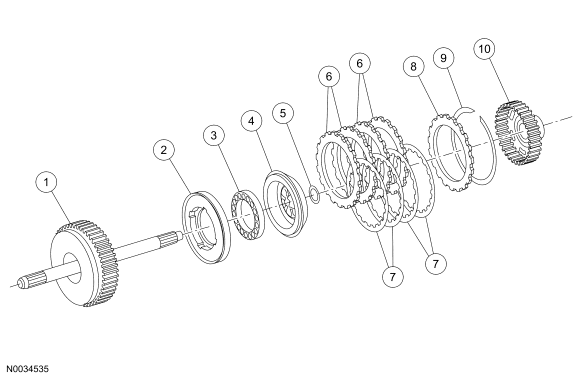

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F207 | Shaft assembly - turbine |
| 2 | 7A262 | Piston assembly - forward clutch |
| 3 | 7F235 | Spring assembly - forward piston return |
| 4 | 7H360 | Piston - forward clutch balance |
| 5 | 7H365 | Ring - forward clutch balance piston snap thrust bearing |
| 6 | 7B442 | Steel plates - forward clutch separator |
| 7 | 7B164 | Friction plate assembly - forward clutch |
| 8 | 7B066 | Plate - forward clutch pressure |
| 9 | 7D483 | Retaining ring |
| 10 | 7B067 | Hub - forward clutch cylinder |
