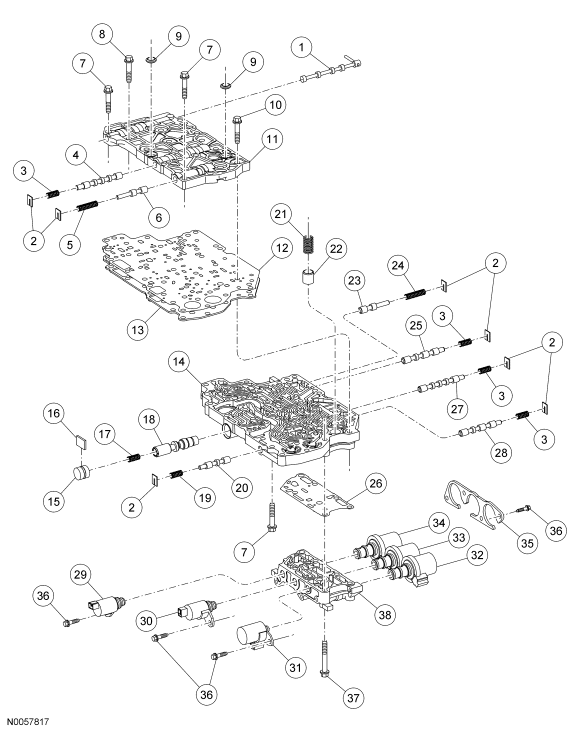

| 1 |
7D142 |
Valve assembly - manual control |
| 2 |
7F194 |
Plates - spring retainer (7 required) |
| 3 |
7H140 |
Springs - bypass clutch control (4 required) |
| 4 |
7G179 |
Valve - bypass clutch control |
| 5 |
7K720 |
Spring modulation valve |
| 6 |
7G408 |
Valve - line pressure modulator (and converter relief) |
| 7 |
W500100 |
Bolts M6 x 40 (3 required) |
| 8 |
W705271 |
Bolt M6 x 30 (5 required) |
| 9 |
7N266 |
Seals - valve body |
| 10 |
W705271 |
Bolt M6 x 60 (5 required) |
| 11 |
7A092 |
Body - control valve upper |
| 12 |
7C155 |
Gasket/plate assembly - control valve body |
| 13 |
7A008 |
Gasket - control body separator |
| 14 |
7A101 |
Body - control valve lower |
| 15 |
7R294 |
Stop - main regulator valve |
| 16 |
7F445 |
Retainer plate - main regulator valve |
| 17 |
7A270 |
Spring - main fluid pressure regulator valve |
| 18 |
7C338 |
Valve - main fluid pressure regulator |
| 19 |
7G411 |
Spring - solenoid regulator valve |
| 20 |
7H392 |
Valve - solenoid regulator valve |
| 21 |
7D400 |
Spring - intermediate servo accumulator |
| 22 |
7D398 |
Piston - intermediate servo accumulator |
| 23 |
7G408 |
Valve - converter pressure relief |
| 24 |
7G316 |
Spring - converter regulator valve |
| 25 |
7M040 |
Valve - lock up control |
| 26 |
7Z490 |
Gasket - solenoid body |
| 27 |
7G179 |
Valve - low reverse shift |
| 28 |
7M040 |
Valve - 3-4 shift |
| 29 |
7H148 |
Shift Solenoid B (SSB) (on/off) valve |
| 30 |
7H148 |
Shift Solenoid A (SSA) (on/off) valve |
| 31 |
7G383 |
Main regulator valve Variable Force Solenoid (VFS)Pressure Control Solenoid A (PCA) |
| 32 |
7G484 |
Pulse-Width Modulation (PWM) solenoid valve Shift Solenoid C (SSC) |
| 33 |
7G484 |
PWM solenoid valve Shift Solenoid E (SSE) |
| 34 |
7G484 |
PWM solenoid valve Shift Solenoid D (SSD) |
| 35 |
7H185 |
Bracket - shift control solenoid hold down |
| 36 |
W500211 |
Screws M6 x 15 (7 required) |
| 37 |
W500012 |
Screw M6 x 72 (2 required) |
| 38 |
7G391 |
Body - solenoid shift throttle pressure |
