Output Shaft Speed (OSS) Sensor: Notes

MATERIAL

Item Specification
Motorcraft MERCON® LV Automatic Transmission Fluid
XT-10-QLV		 MERCON® LV

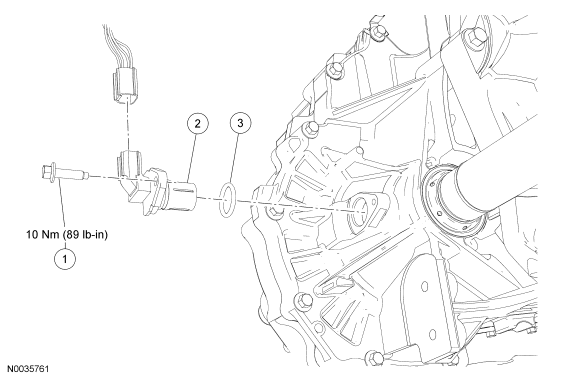

Fig 1: Output Shaft Speed (OSS) Sensor Components With Torque Specification
GF0039724Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500214-S439 Bolt
2 7H103 Output Shaft Speed (OSS) sensor
3 W706315-S300 O-ring
