Satellite Digital Audio Receiver System (SDARS) Module: Notes

NOTE: Not all vehicles are equipped with a subwoofer.

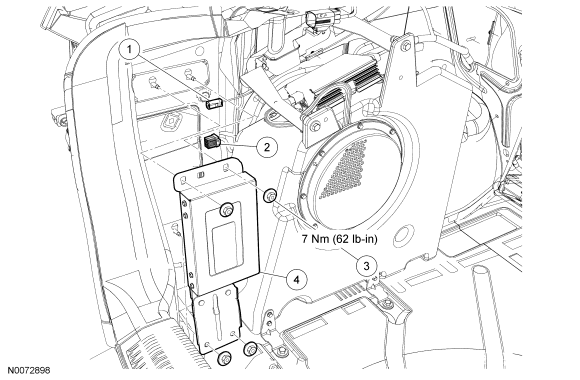

Fig 1: SDARS Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Satellite radio antenna electrical connector (part of 18812)
2	-	Satellite Digital Audio Receiver System (SDARS) module electrical connector (part of 14A005)
3	W710771-S	SDARS module nuts (4 required)
4	18C960	SDARS module
