Fuel Rail: Notes
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

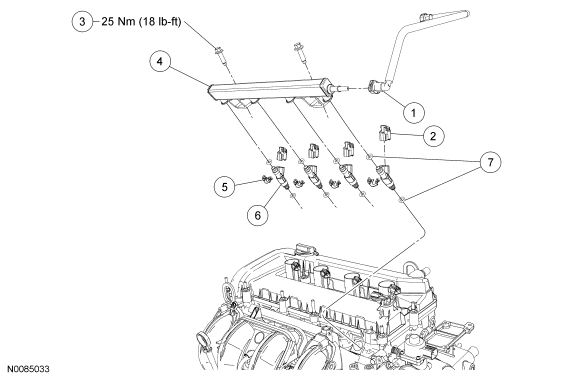

| Item | Part Number | Description |
|---|---|---|
| 1 | 9288 | Fuel tube quick connect coupling |
| 2 | 14A464 | Fuel injector electrical connector (4 required) (part of 12B637) |
| 3 | W500224 | Fuel rail bolt (2 required) |
| 4 | 9H487 | Fuel rail |
| 5 | 9C995 | Fuel injector clip (4 required) |
| 6 | 9F593 | Fuel injector (4 required) |
| 7 | 9U509 | Fuel injector O-ring seal (2 required per injector) |
