Throttle Body: Notes

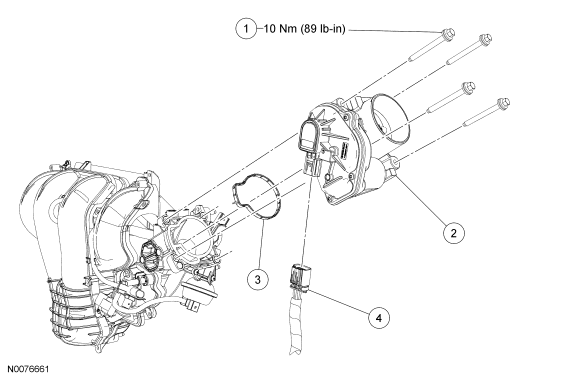

Fig 1: Exploded View Of Throttle Body Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713443	Throttle body (TB)-to-upper intake manifold bolt (4 required)
2	9F991	TB
3	9E936	TB gasket
4	14A464	Electronic throttle control (ETC) electrical connector (part of 12C508)
