Child Safety Seat Tether Anchor - LATCH: Notes

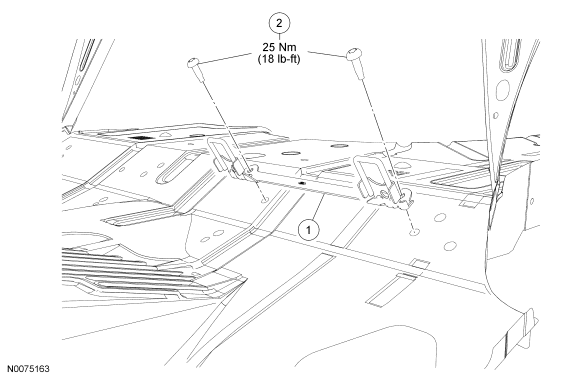

Fig 1: Child Safety Seat Tether Anchor - LATCH Components With Torque Specification
GF0042967Courtesy of FORD MOTOR CO.
Item Part Number Description
1 613D46 Lower anchors and tethers for children (2 required)
2 W705708 Lower anchors and tethers for children bolts (2 required)
