Child Safety Seat Tether Anchor: Notes

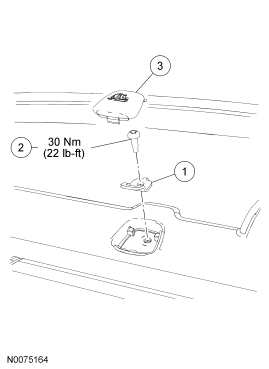

Fig 1: Child Safety Seat Tether Anchor Components With Torque Specification
GF0042966Courtesy of FORD MOTOR CO.
Item Part Number Description
1 613D74 Center child safety seat tether anchor
2 W705708 Child safety seat tether anchor bolt
3 613E54 Center child safety seat tether anchor trim cover
