Safety Belt Buckle - Rear: Notes

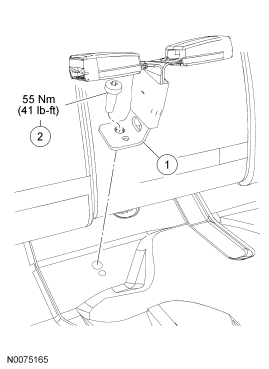

Fig 1: Safety Belt Buckle - Rear Components With Torque Specification
GF0042962Courtesy of FORD MOTOR CO.
Item Part Number Description
1 60044 Safety belt buckle assembly
2 - Safety belt buckle bolt (part of 60044)
