Safety Belt Shoulder Height Adjuster: Notes

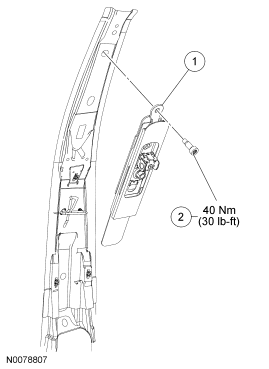

Fig 1: Safety Belt Shoulder Height Adjuster Components With Torque Specification
GF0042965Courtesy of FORD MOTOR CO.
Item Part Number Description
1 602B82 Safety belt shoulder height adjuster
2 - Safety belt height adjuster bolt (part of 602B82)
