Selector Lever: Removal

  1. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
  2. Move the selector lever to the PARK position and remove the selector lever cable from the selector lever.
    1. Remove the selector lever cable eyelet from the ball stud.
    2. Squeeze the tabs and remove the selector lever cable from the selector lever assembly.

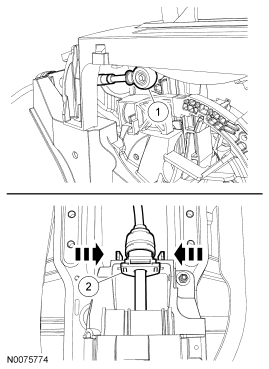

    3. Fig 1: Identifying Cable Eyelet And Tabs
    GF0043392Courtesy of FORD MOTOR CO.
  3. Disconnect the selector lever assembly electrical connector.
    4. Fig 2: Identifying Connector
    GF0043393Courtesy of FORD MOTOR CO.
  4. Remove the 4 nuts and the selector lever assembly.
    5. Fig 3: Identifying Selector Lever Nuts
    GF0043028Courtesy of FORD MOTOR CO.
