Communications Network: Notes
Vehicle communication utilizes both high speed (HS) and medium speed (MS) controller area network (CAN) communications. CAN in-vehicle networking, is a method for transferring data among distributed electronic modules via a serial data bus. Without serial networking, intermodule communication requires dedicated, point to point wiring resulting in bulky, expensive, complex, and difficult to install wiring harnesses. Applying a serial data network reduces the number of wires combining the signals on a single network. Information is sent to individual control modules that control each function.

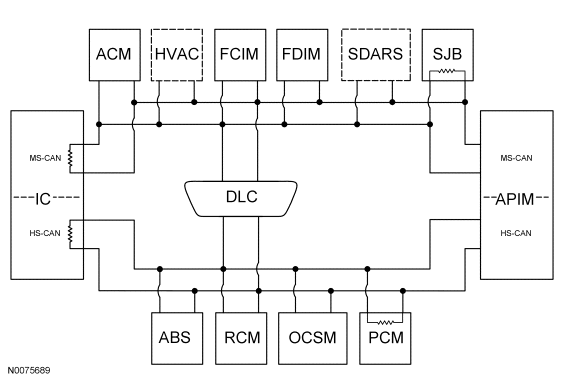

The vehicle has 2 module communication networks:
- High speed (HS) CAN
- Medium speed (MS) CAN
Both networks are connected to the data link connector (DLC). This makes diagnosis and testing of these systems easier by allowing one scan tool to be able to diagnose and control any module on both networks from one connector. The DLC can be found under the instrument panel.
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS | HS-CAN | No |
| Accessory protocol interface module (APIM) (if equipped) | HS-CAN/MS-CAN | No |
| Audio control module (ACM) | MS-CAN | No |
| Front controls interface module (FCIM) | MS-CAN | No |
| Front display interface module (FDIM) | MS-CAN | No |
| HVAC module (if equipped) | MS-CAN | No |
| Instrument cluster (IC) (gateway module) | HS-CAN MS-CAN |
Yes Yes |
| Occupant classification system module (OCSM) | HS-CAN | No |
| PCM | HS-CAN | Yes |
| Restraints control module (RCM) | HS-CAN | No |
| Satellite digital audio receiver system (SDARS) module (if equipped) | MS-CAN | No |
| Smart junction box (SJB) | MS-CAN | Yes |
