Safety Belt Retractor - Front: Notes
NOTE:

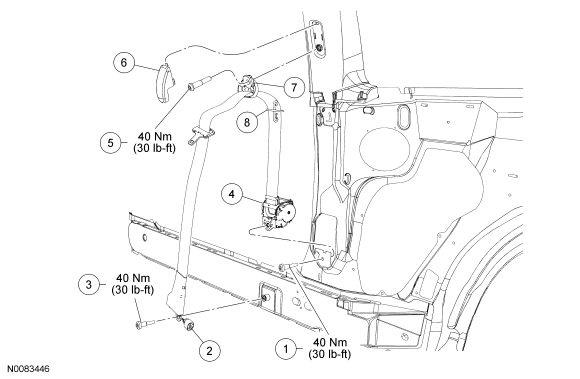

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W712978 | Safety belt retractor bolt |
| 2 | - | Belt Tension Sensor (BTS) electrical connector (part of 611B08 only) |
| 3 | - | Safety belt anchor bolt (part of 611B08 RH/ 611B09 LH) |
| 4 | 611B08 RH/ 611B09 LH | Safety belt and retractor |
| 5 | - | D-ring bolt (part of 611B08 RH/ 611B09 LH) |
| 6 | 60262 | D-ring cover |
| 7 | - | D-ring (part of 611B08 RH/ 611B09 LH) |
| 8 | - | Safety belt guide loop (part of 611B08 RH/ 611B09 LH) |
