Steering Column: Notes

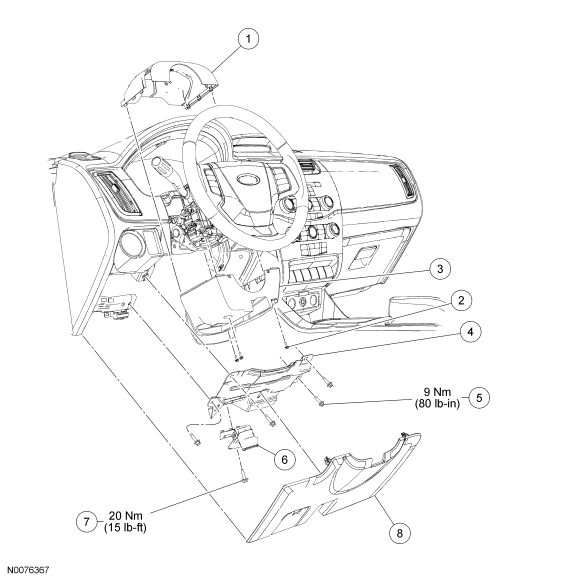

Fig 1: Steering Column Components (1 Of 3) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	W713494	Lower steering column shroud screw (3 required)
3	3530	Lower steering column shroud
4	54017A28	Steering column opening cover reinforcement
5	W701928	Steering column opening cover reinforcement bolt (4 required)
6	16916	Hood release handle and cable
7	W505424	Hood release handle bolt
8	5404459	Steering column opening cover

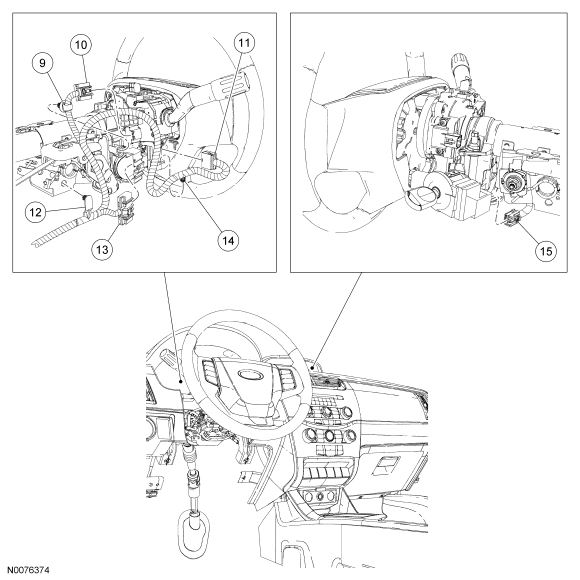

Fig 2: Steering Column Components (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	-	Wiring harness retainer (part of 14401)
10	-	Multi-function switch electrical connector (part of 14401)
11	-	Clockspring electrical connector (part of 14401)
12	-	Wiring harness retainer (part of 14401)
13	-	Ignition switch electrical connector (part of 14401)
14	-	Wiring harness retainer (part of 14401)
15	-	Passive anti-theft system (PATS) transceiver electrical connector (part of 14401)

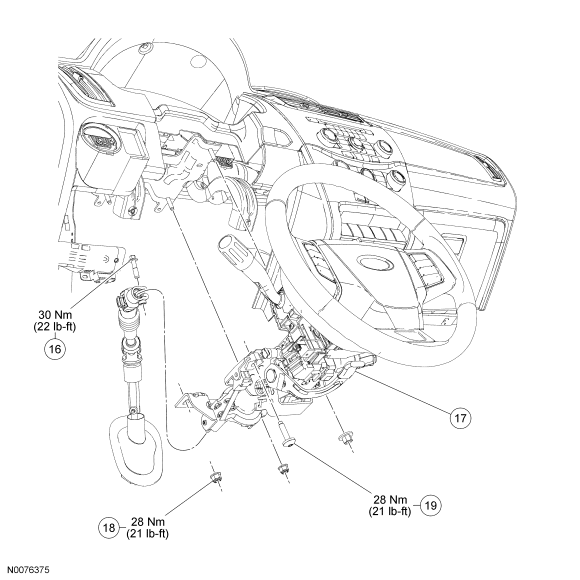

Fig 3: Steering Column Components (3 Of 3) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
16	W712882	Upper steering column shaft-to-steering column bolt
17	3C529	Steering column
18	N806423	Steering column nut (3 required)
19	W712250	Steering column bolt
