Steering Gear Boot: Notes

SPECIAL TOOLS - STEERING GEAR BOOT

Illustration Tool Name Tool Number
GF0001283Courtesy of FORD MOTOR CO.
Boot Clamp Pliers 205-D067 (D87P-1098-A) or equivalent
MATERIAL - STEERING GEAR BOOT

Item Specification
Premium Long-Life Grease
XG-1-C or XG-1-K (US); CXG-1-C (Canada)
ESA-M1C75-B

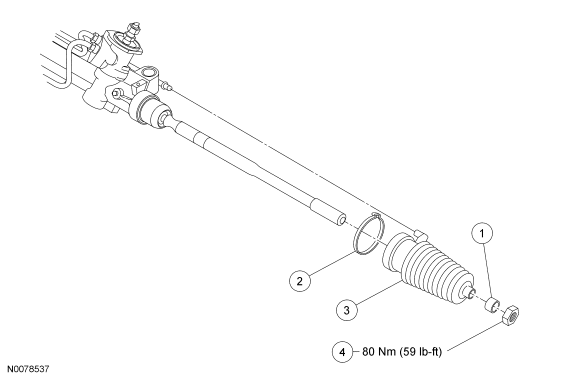

Fig 1: Steering Gear Boot Replacement Components With Torque Specifications
GF0043474Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3C650 Outer bellows boot clamp
2 3K662 Inner bellows boot clamp
3 3K661 Steering gear bellows boot
4 W302403 Tie-rod jam nut
