Audio Control Module (ACM) - Fusion, Milan

Audio Control Module (ACM) - Fusion, Milan









Removal and Installation

NOTE: It is not necessary to remove the Audio Control Module (ACM) to retrieve the part number. For additional information, refer to Audio Unit Part Number Retrieval Audio Unit Part Number Retrieval.

1. NOTE: Module configuration is only required if a new ACM is being installed.

Upload the ACM configuration information to the scan tool.

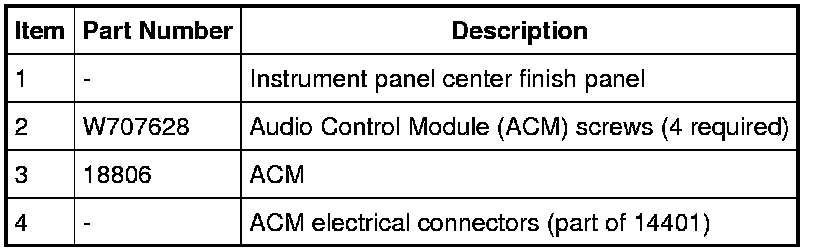

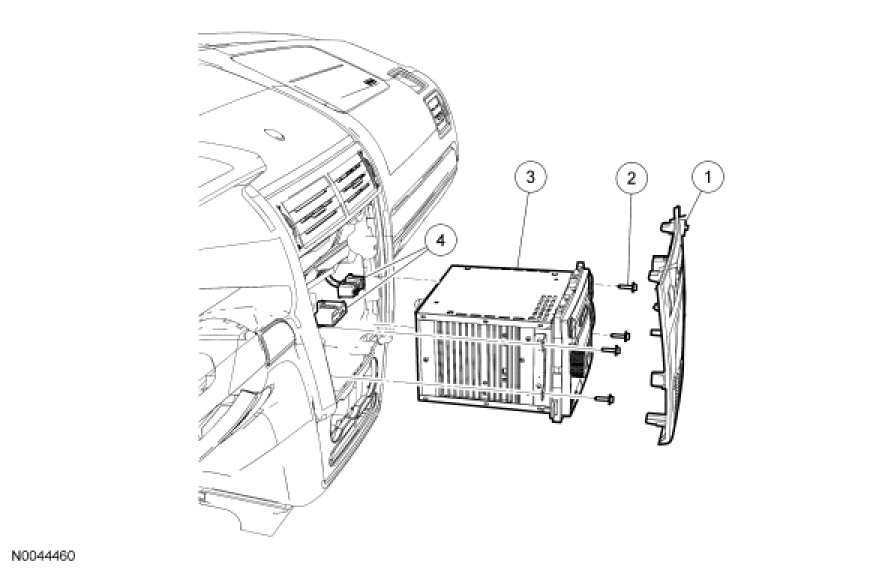

2. Remove the instrument panel center finish panel.
- Disengage the clips.

3. Remove the 4 screws and the ACM.
- Disconnect the electrical connectors and the antenna lead-in cable.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM.
