Audio Digital Signal Processing (DSP) Module

Audio Digital Signal Processing (DSP) Module









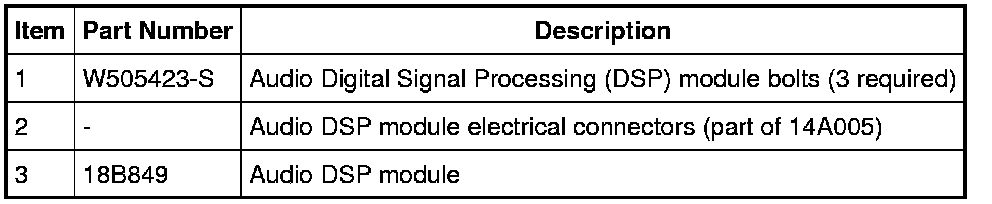

Removal and Installation

1. NOTE: Module configuration is only required if a new audio Digital Signal Processing (DSP) module is being installed.

Upload the audio DSP module configuration information to the scan tool.

2. Remove the 4 pushpins and the RH luggage compartment trim panel.

3. Disconnect the audio DSP module electrical connectors.

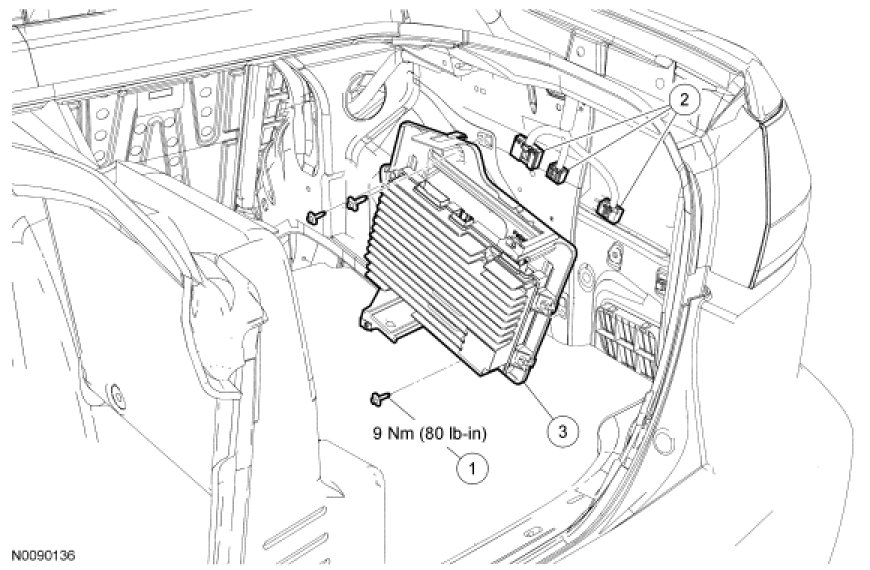

4. Remove the 3 bolts and the audio DSP module.
- To install, tighten to 9 Nm (80 lb-in).

5. To install, reverse the removal procedure.
- Download the configuration information to the audio DSP module.
