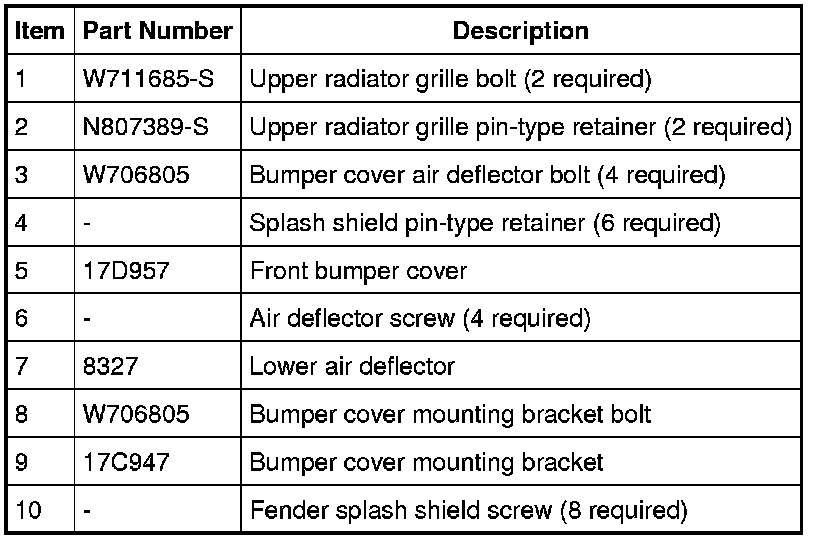

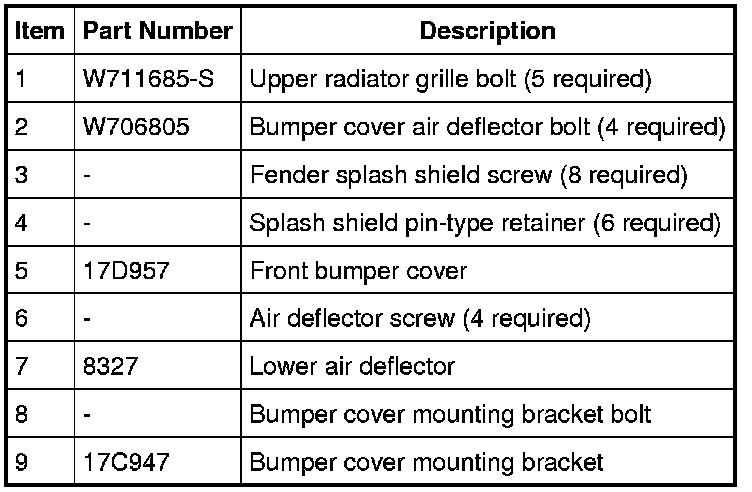

Bumper - Exploded View, Front




Bumper - Exploded View, Front

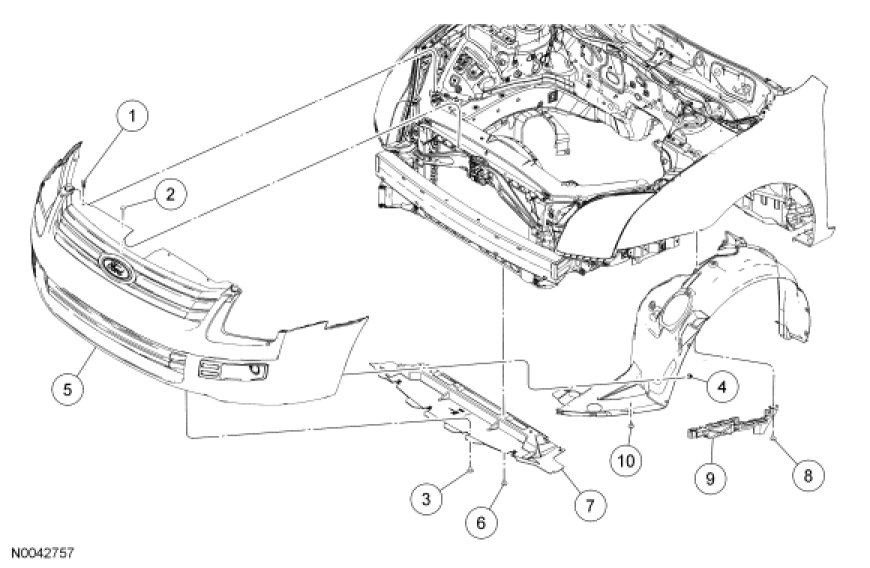

Fusion

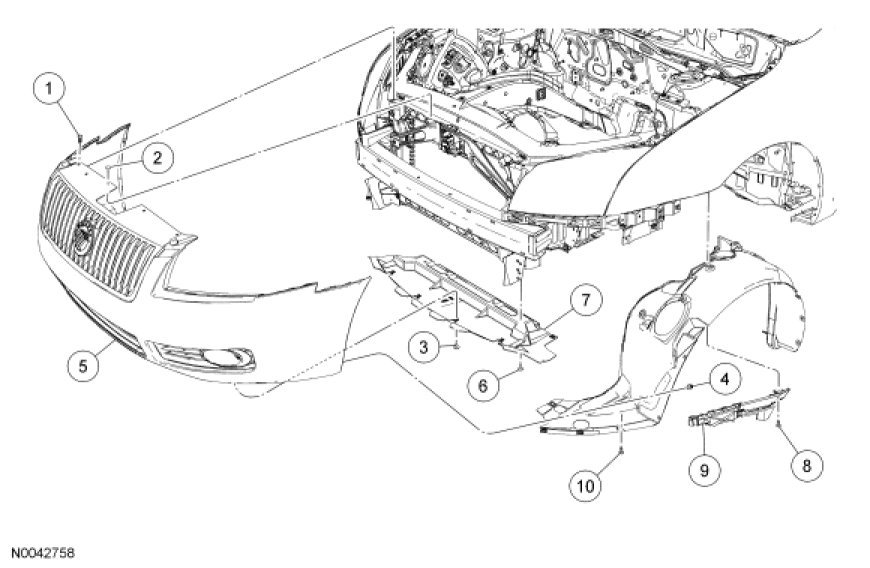

Milan

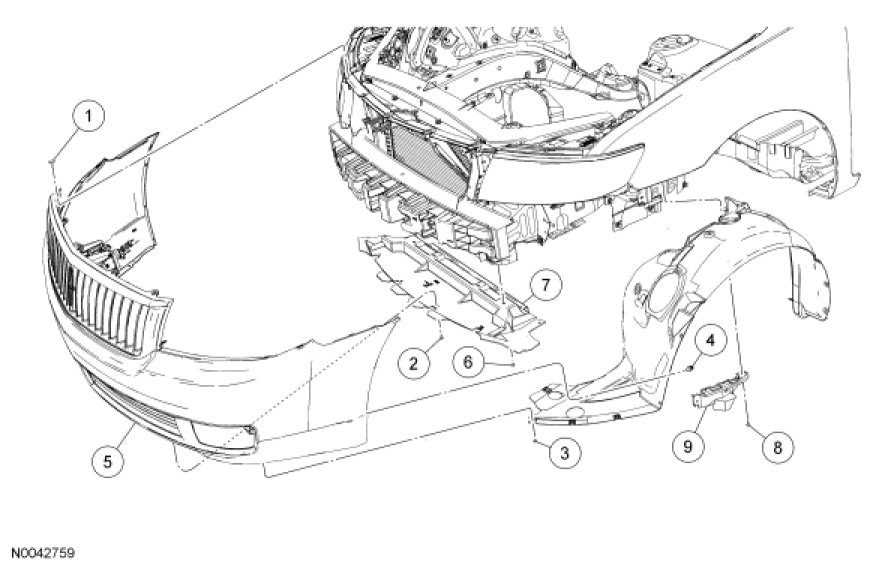

MKZ









1. For additional information, refer to the procedures.
