Ford
>>
2009
>>
Fusion AWD L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Multimedia Inside Mirror Unit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

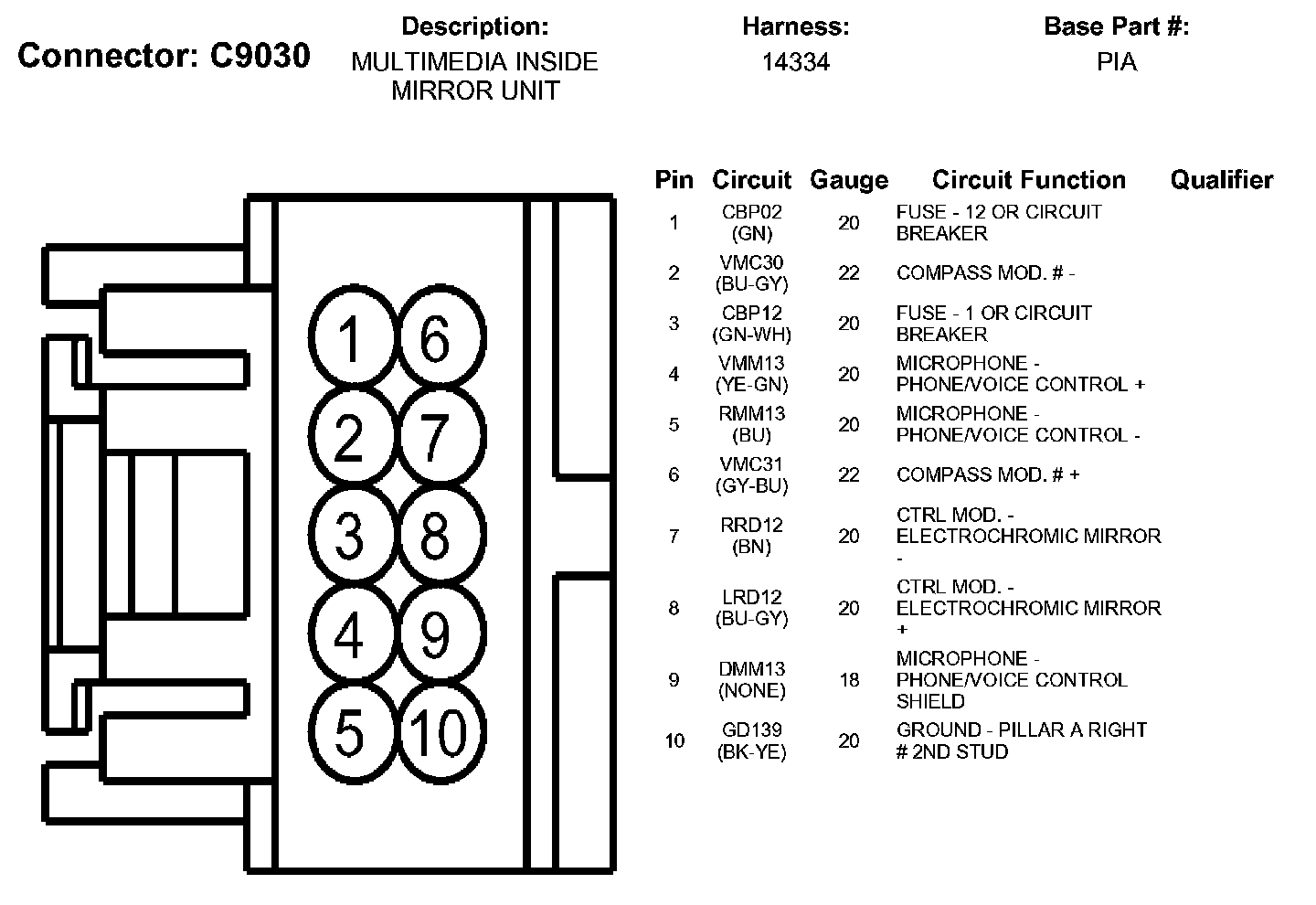

Multimedia Inside Mirror Unit
