Blower Motor Switch

Blower Motor Switch

Removal and Installation

1. Remove the climate control assembly. For additional information, refer to Heating Ventilation Air Conditioning (HVAC) Module Heating Ventilation Air Conditioning (HVAC) Module.

2. Pull and remove the blower motor switch knob.

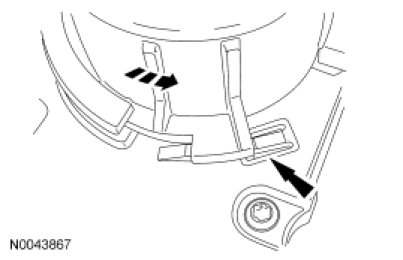

3. Depress the tab and rotate the blower counterclockwise to remove.





4. To install, reverse the removal procedure.
