DU - Intake Air Temperature 2 (IAT2) Sensor

PINPOINT TEST DU: INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR

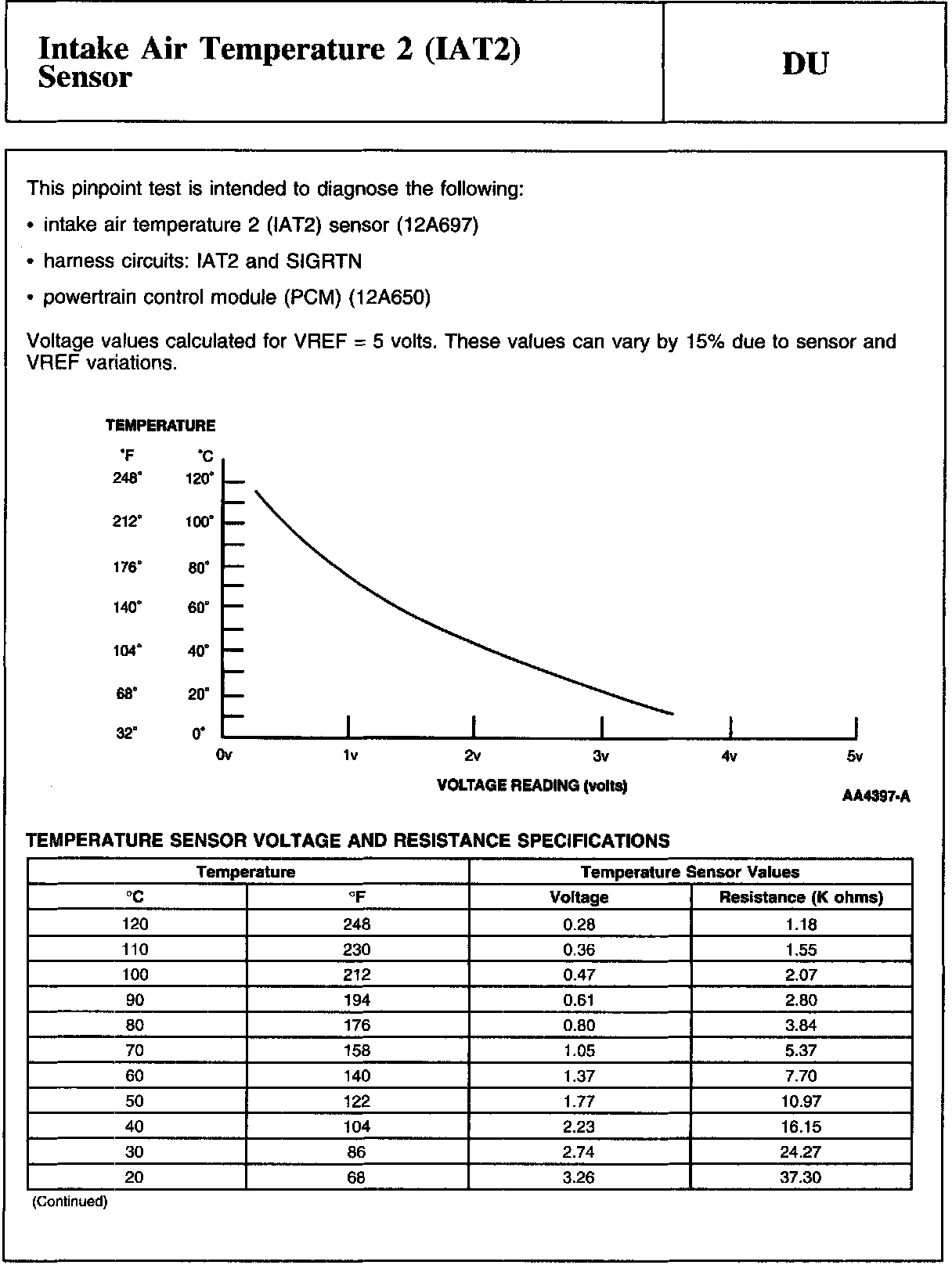

Temperature Sensor Voltage And Resistance Graph And Specifications:

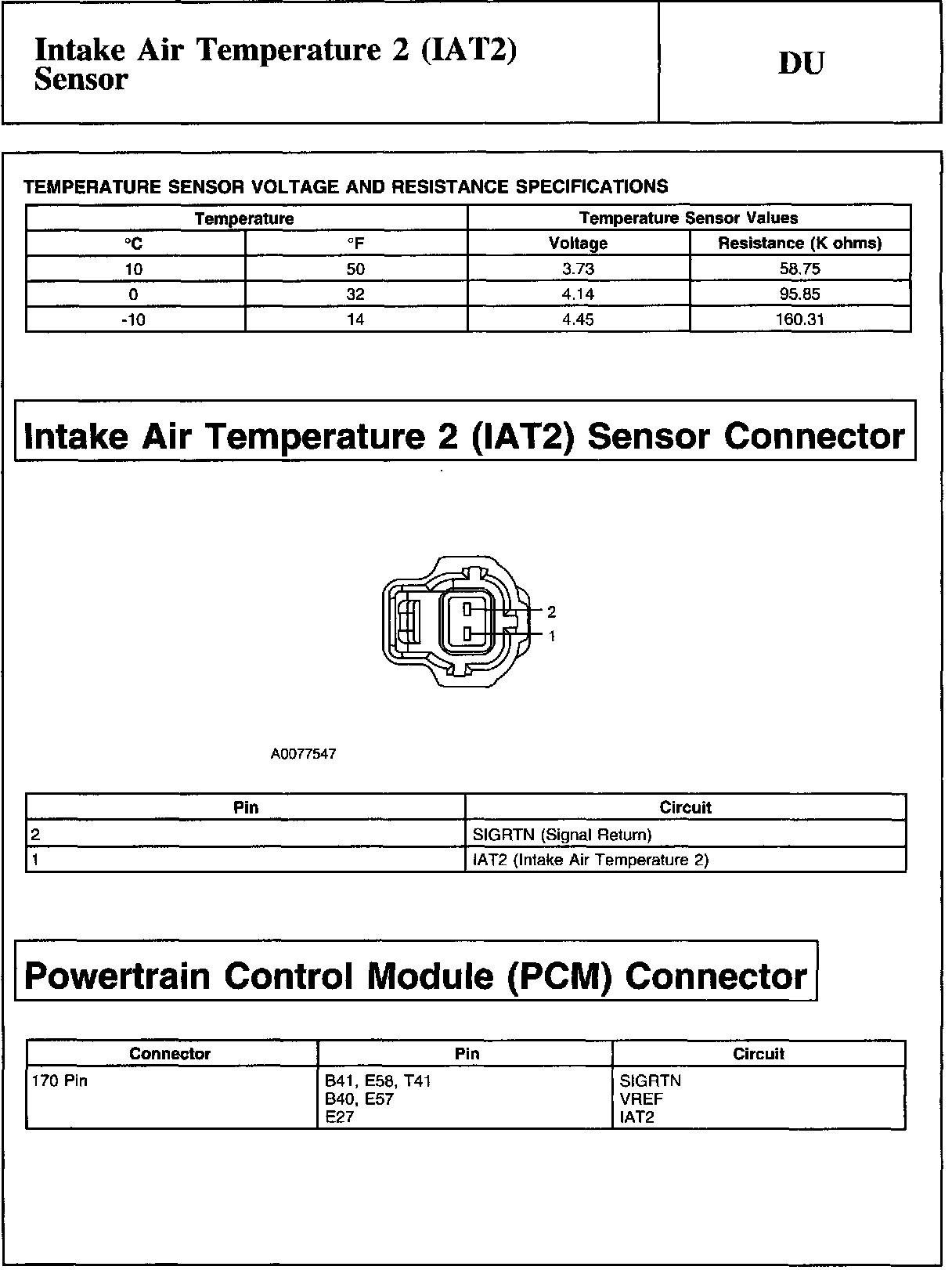

Intake Air Temperature 2 Sensor And Powertrain Control Module Connector:

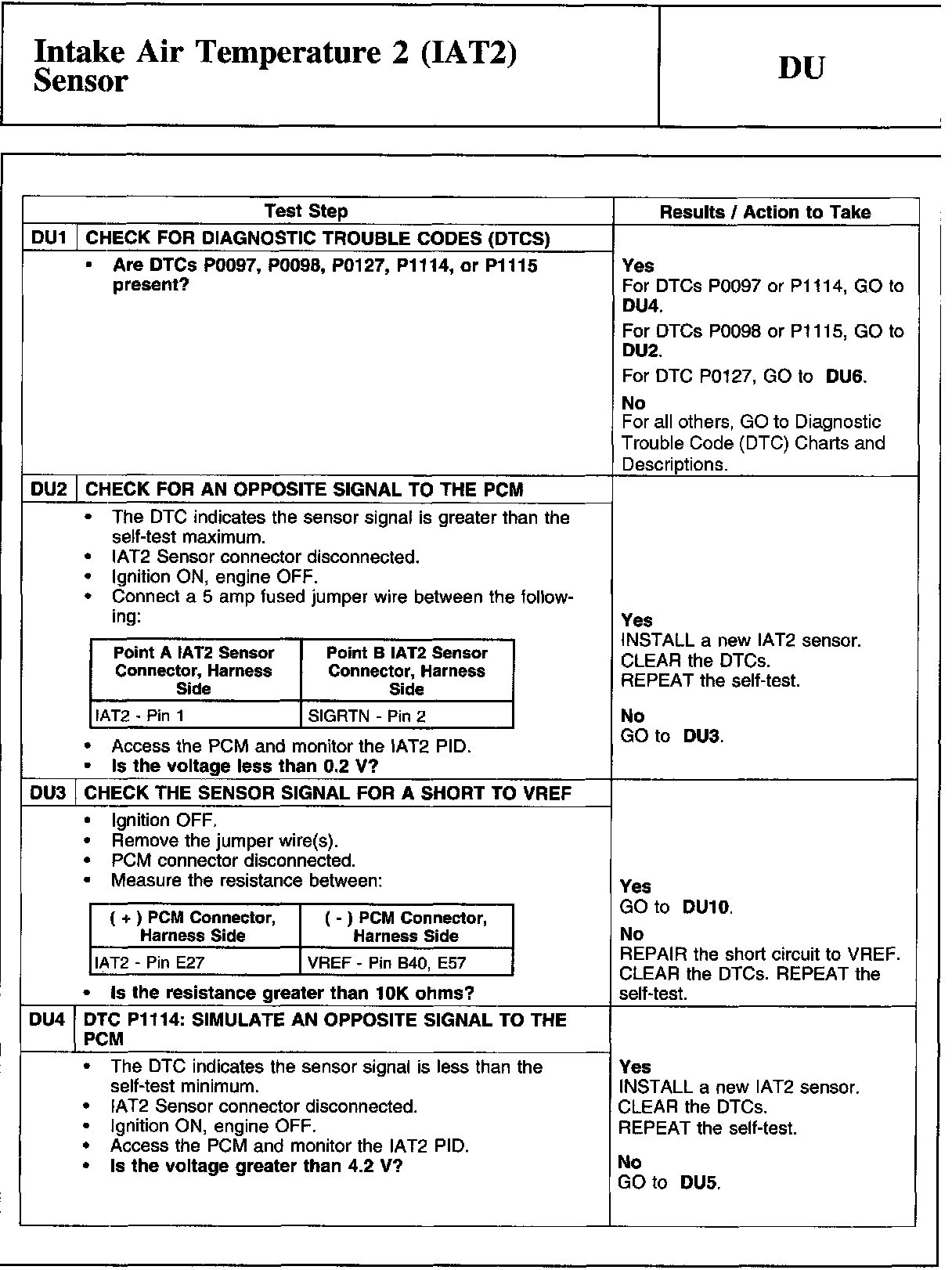

DU1-DU4:

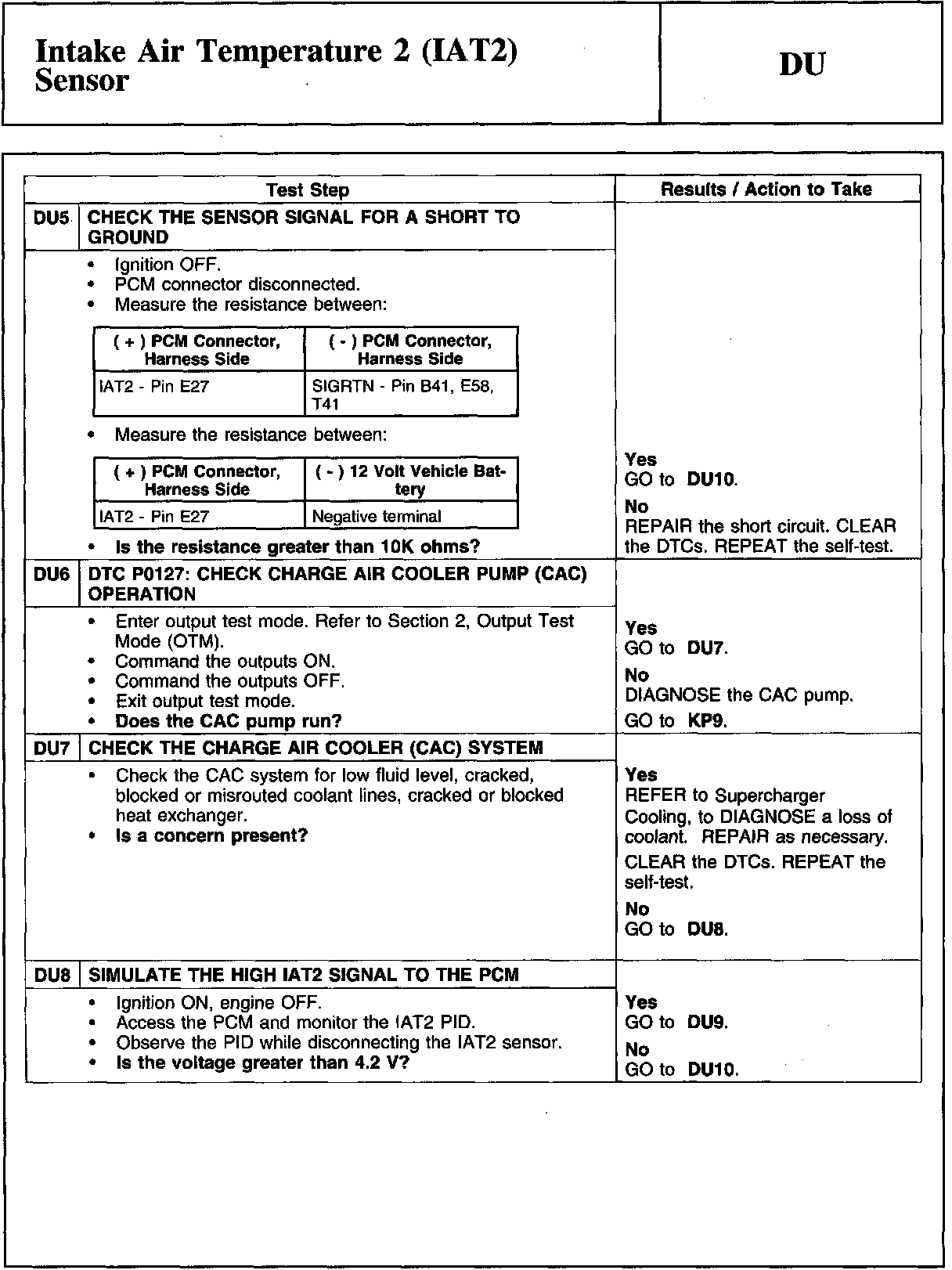

DU5-DU8:

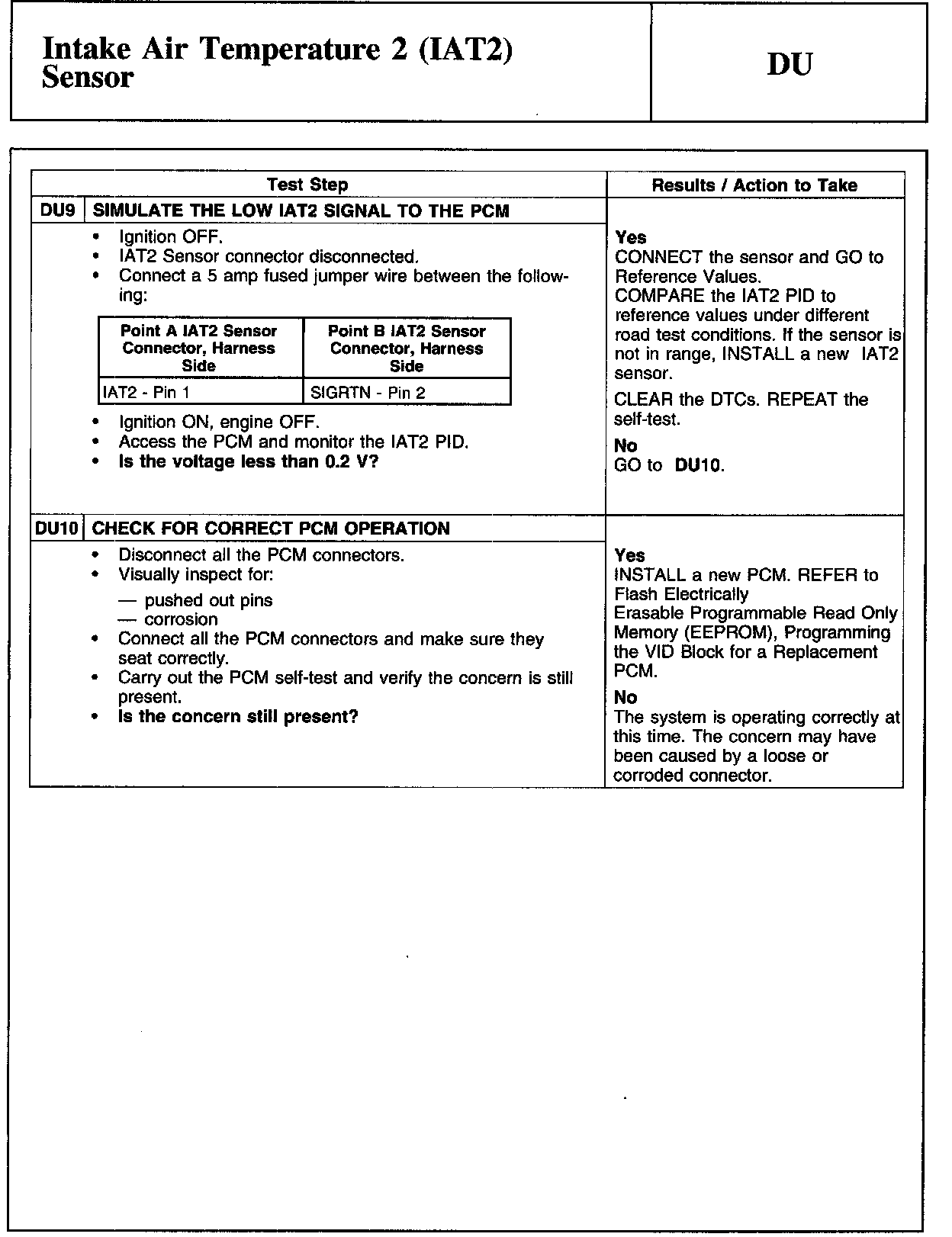

DU9-DU10:
