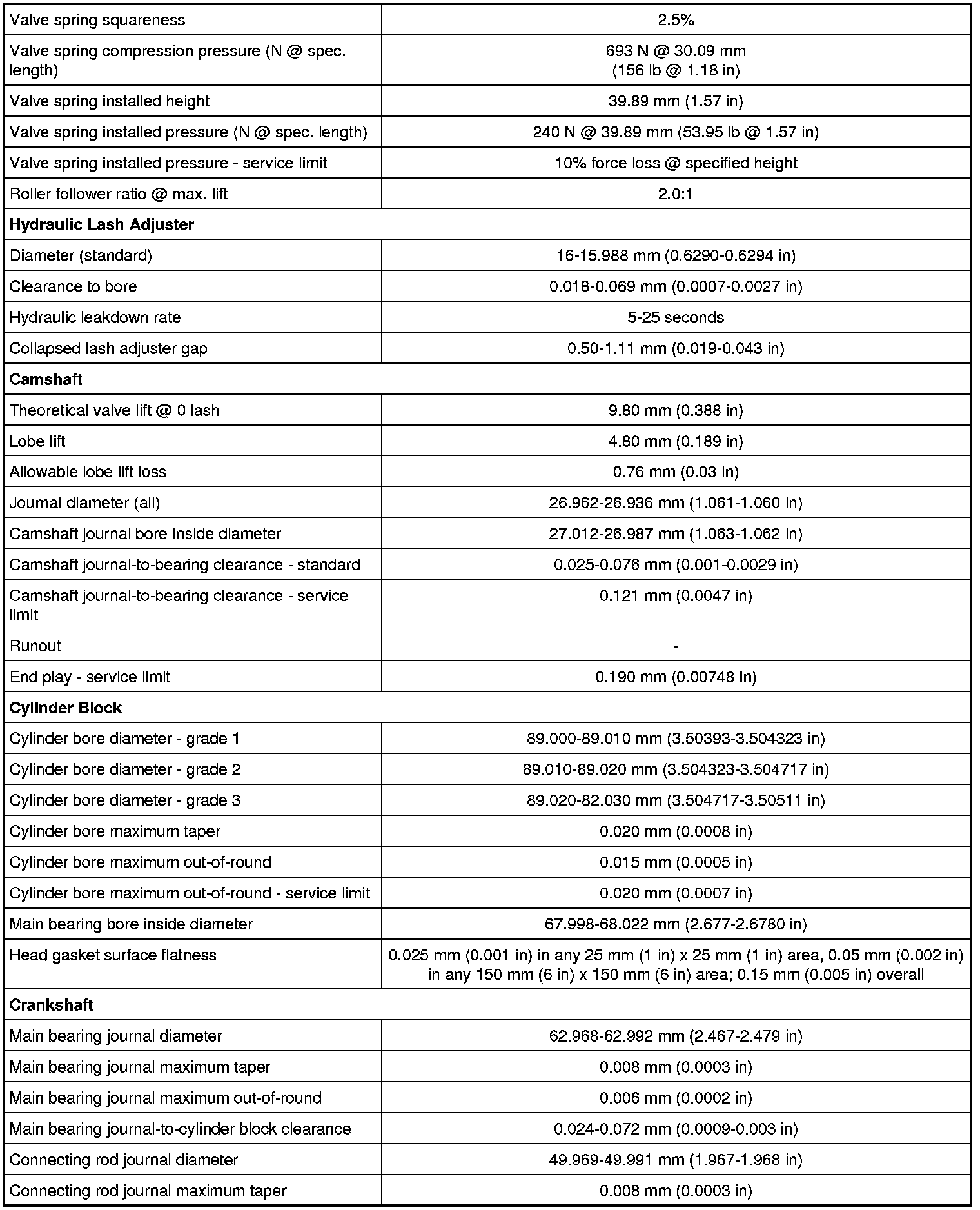

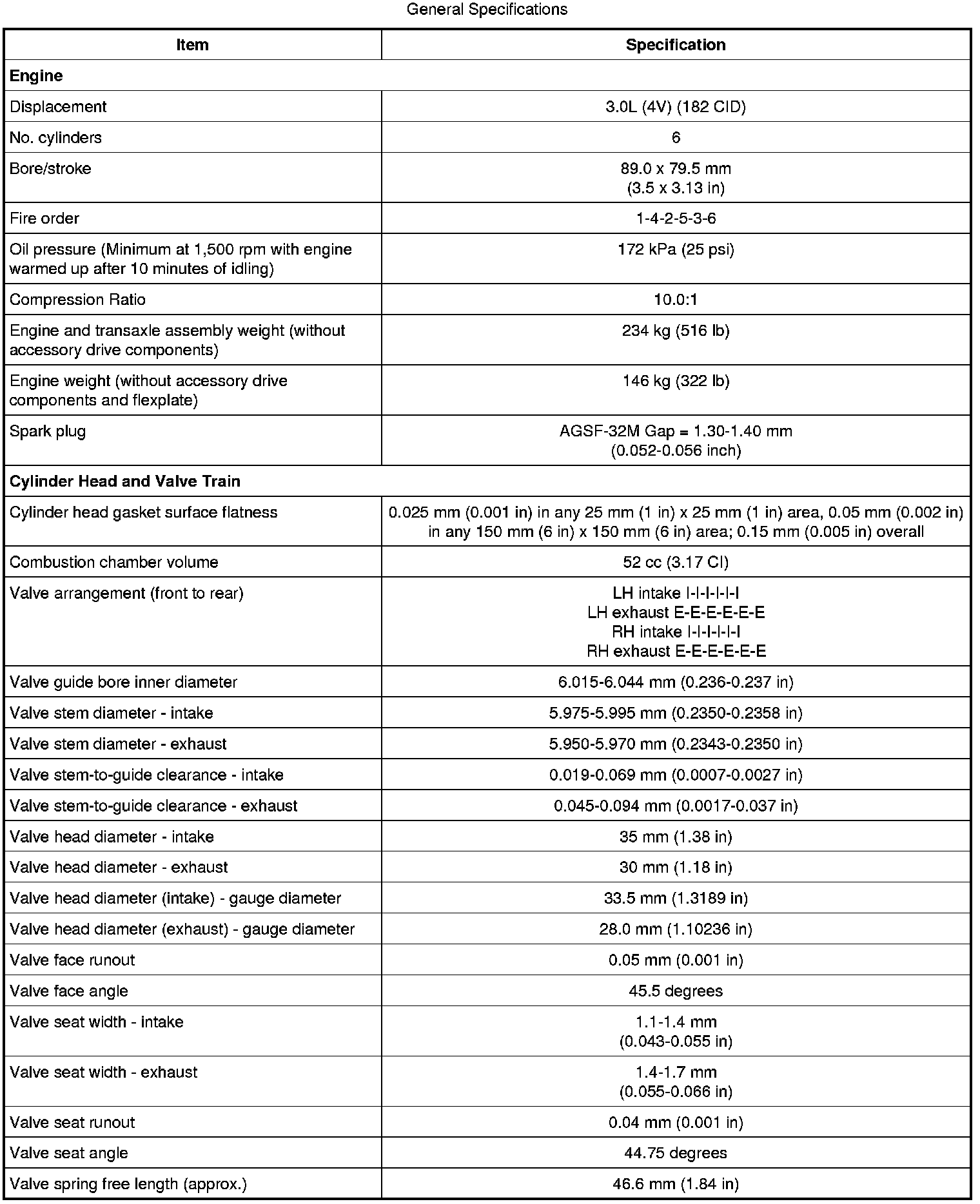

System Specifications

a Specification 82.4 mm (3.2441 in) diameter gauge

Crankshaft Pulley

Install the bolt and washer. Using the Strap Wrench to hold the crankshaft pulley, tighten the bolt in 4 stages:
Stage 1: Tighten to 120 Nm (89 lb-ft).
Stage 2: Loosen one full turn.
Stage 3: Tighten to 50 Nm (37 lb-ft).
Stage 4: Tighten an additional 90 degrees.
