Intake Manifold

Intake Manifold

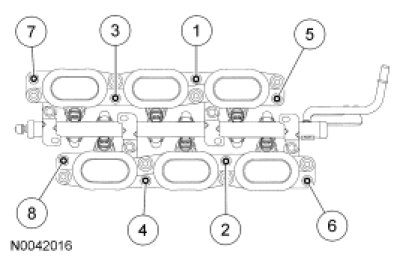

Position the lower intake manifold and install the 8 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).

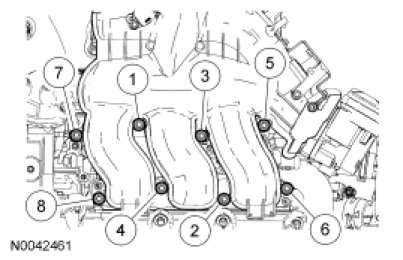

Position the upper intake manifold and install the 8 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).





Throttle Body

NOTE: Install a new TB gasket.
Install the gasket, TB and 4 bolts.
Tighten to 10 Nm (89 lb-in).
