Oil Pan, Engine

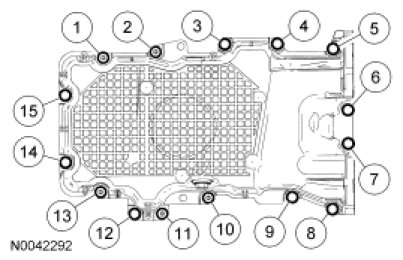

Tighten the
oil pan
-to-engine bolts and stud bolts in the sequence shown to
25 Nm (18 lb-ft).
