Timing Cover

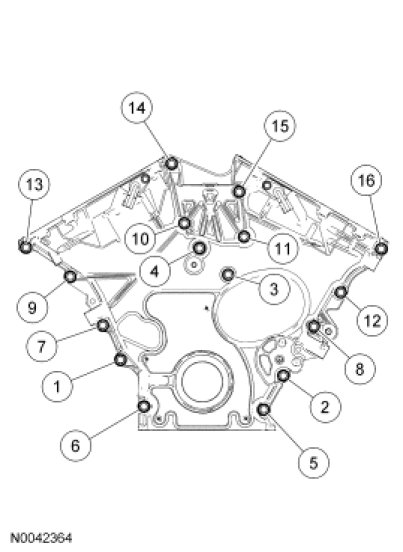

Position the engine front cover and install the 14 bolts and the 2 stud bolts.
Tighten in the sequence shown to 25 Nm (18 lb-ft).
