Alternator: Service and Repair

Generator - 3.0L

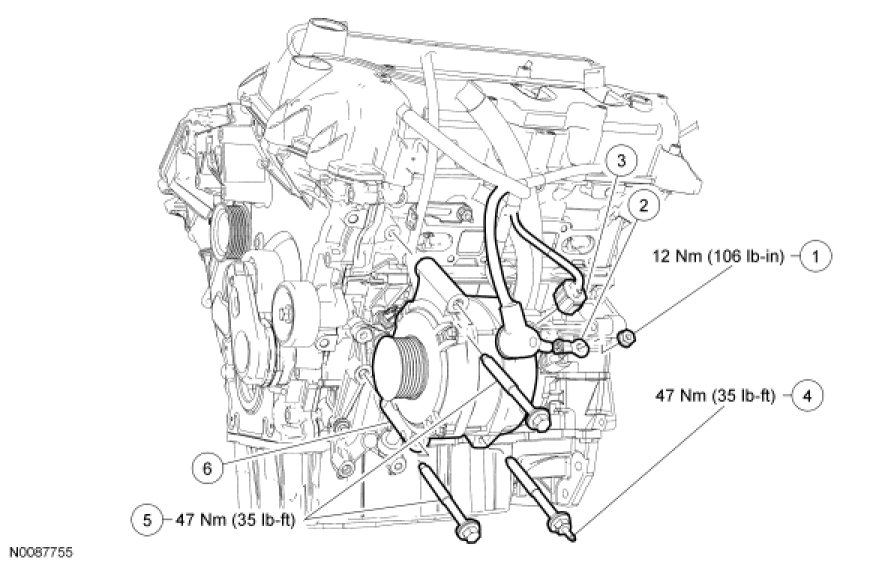

Removal and Installation

1. Remove the A/C compressor.

2. Disconnect the battery.

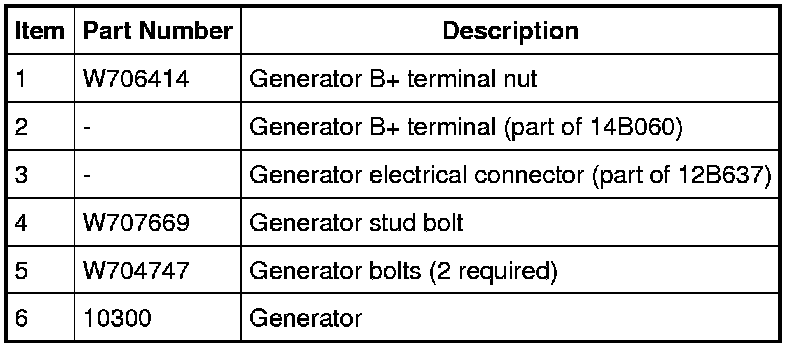

3. Position the generator protective cover aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 12 Nm (106 lb-in).

4. Disconnect the generator electrical connector.

5. Remove the 3 bolts and the generator.
- To install, tighten to 47 Nm (35 lb-ft).

6. To install, reverse the removal procedure.
