Accessory Protocol Interface Module (APIM)

Accessory Protocol Interface Module (APIM)

NOTE: Fusion, Milan shown, MKZ similar.

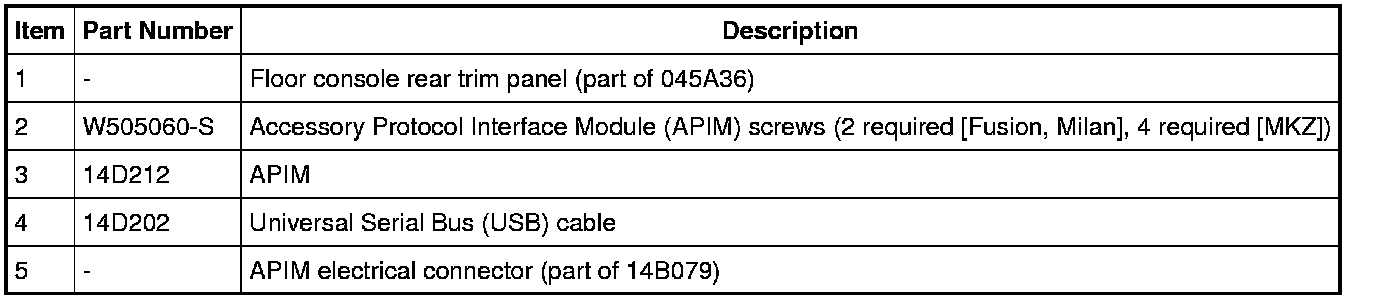

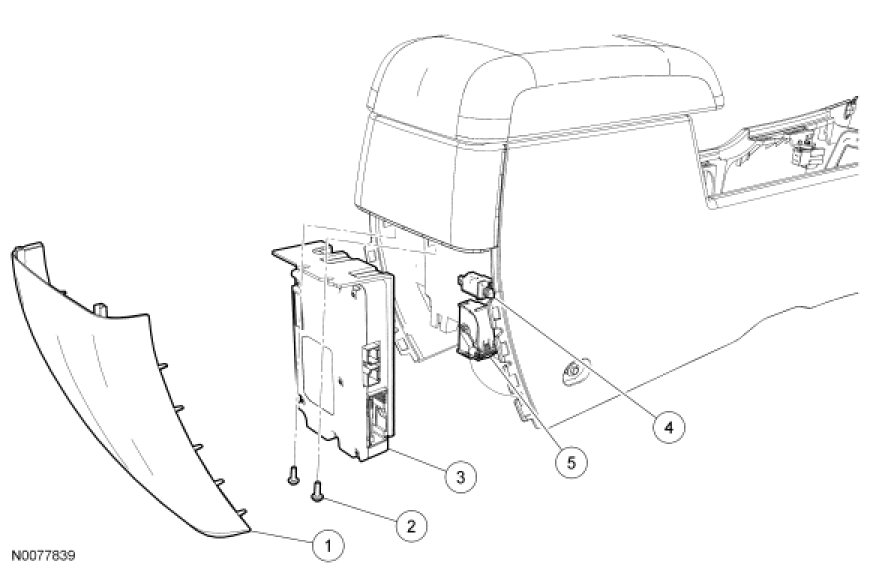

Removal and Installation

1. NOTE: It is necessary to record the current Accessory Protocol Interface Module (APIM) software and hardware level when a new APIM is being installed to make sure that the new component is the same version as the component being replaced.

Retrieve and record the current APIM software and hardware level. For additional information, refer to Accessory Protocol Interface Module (APIM) Software Level Check Accessory Protocol Interface Module (APIM) Software Level Check.

2. Remove the floor console.

3. Remove the floor console rear trim panel by pulling straight back to disengage the clips.

4. NOTE: For Fusion, Milan, the APIM is removed as an assembly with the bracket.

Remove the 2 screws (Fusion, Milan) or 4 screws (MKZ) and the APIM.
- Disconnect the APIM electrical connector.

- Disconnect the Universal Serial Bus (USB) cable.

5. To install, reverse the removal procedure.
- If a new APIM is being installed, program the APIM to the correct software level.
