Splice Locations

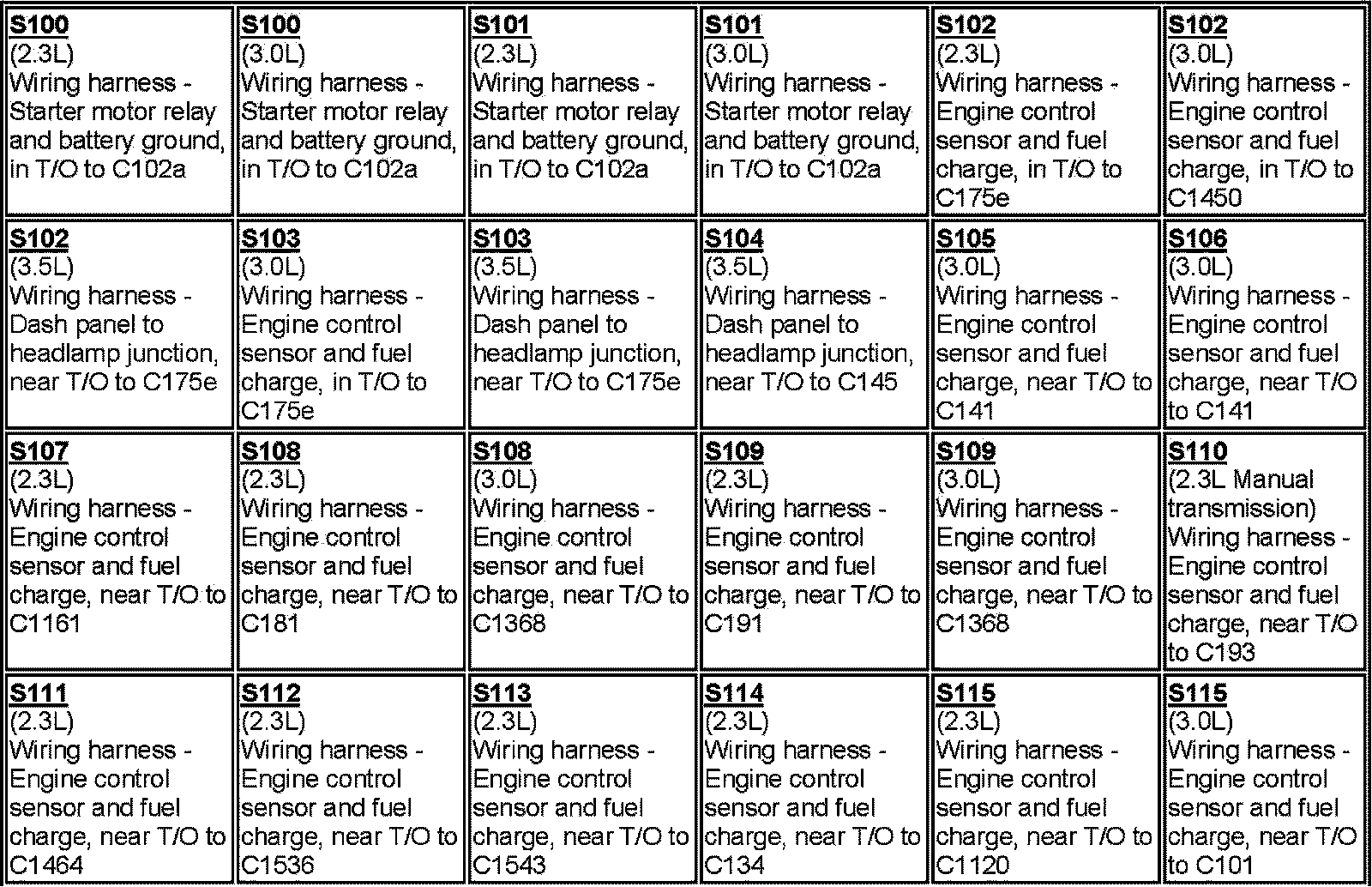

S100-S115:

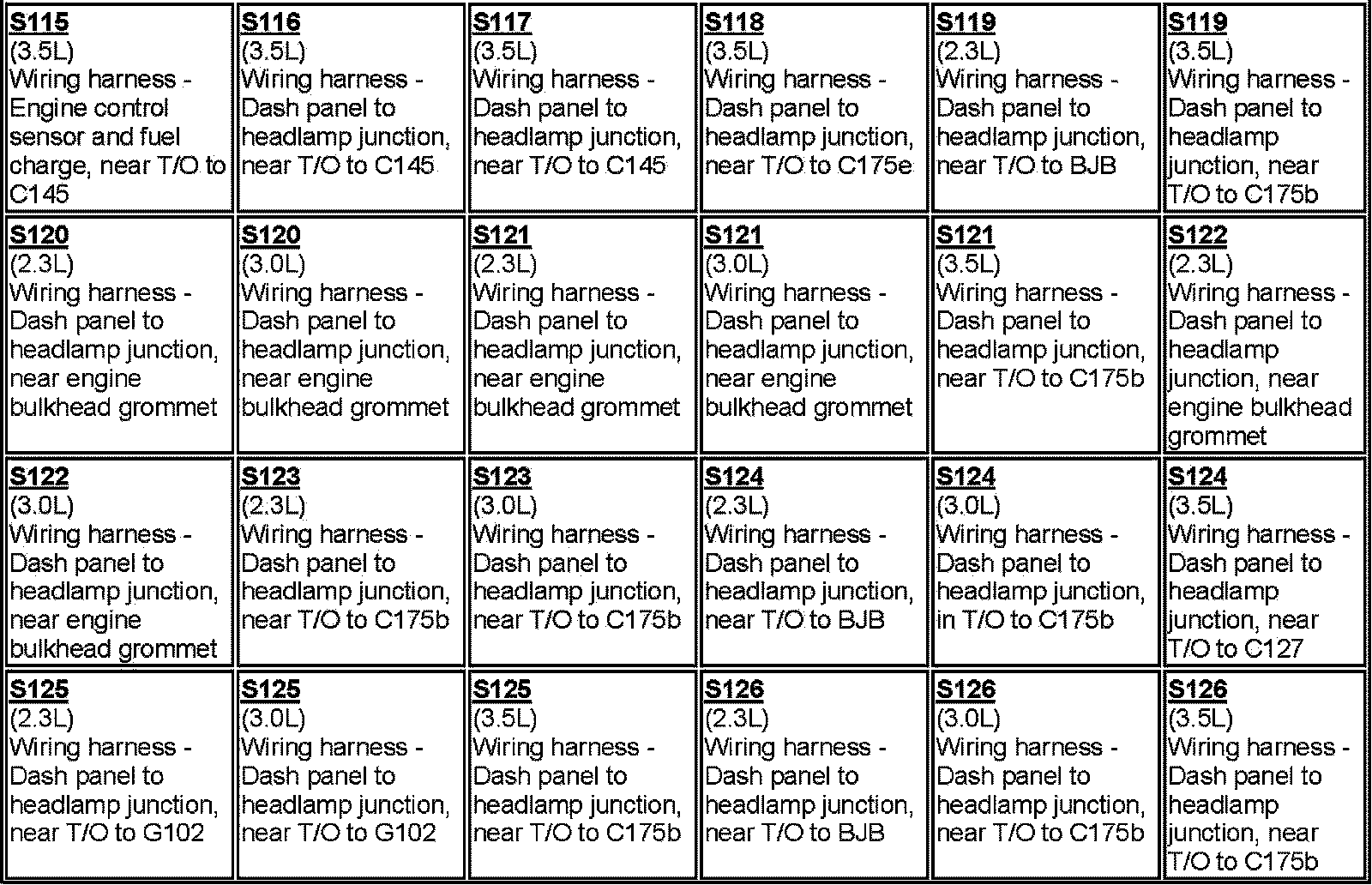

S115-S126:

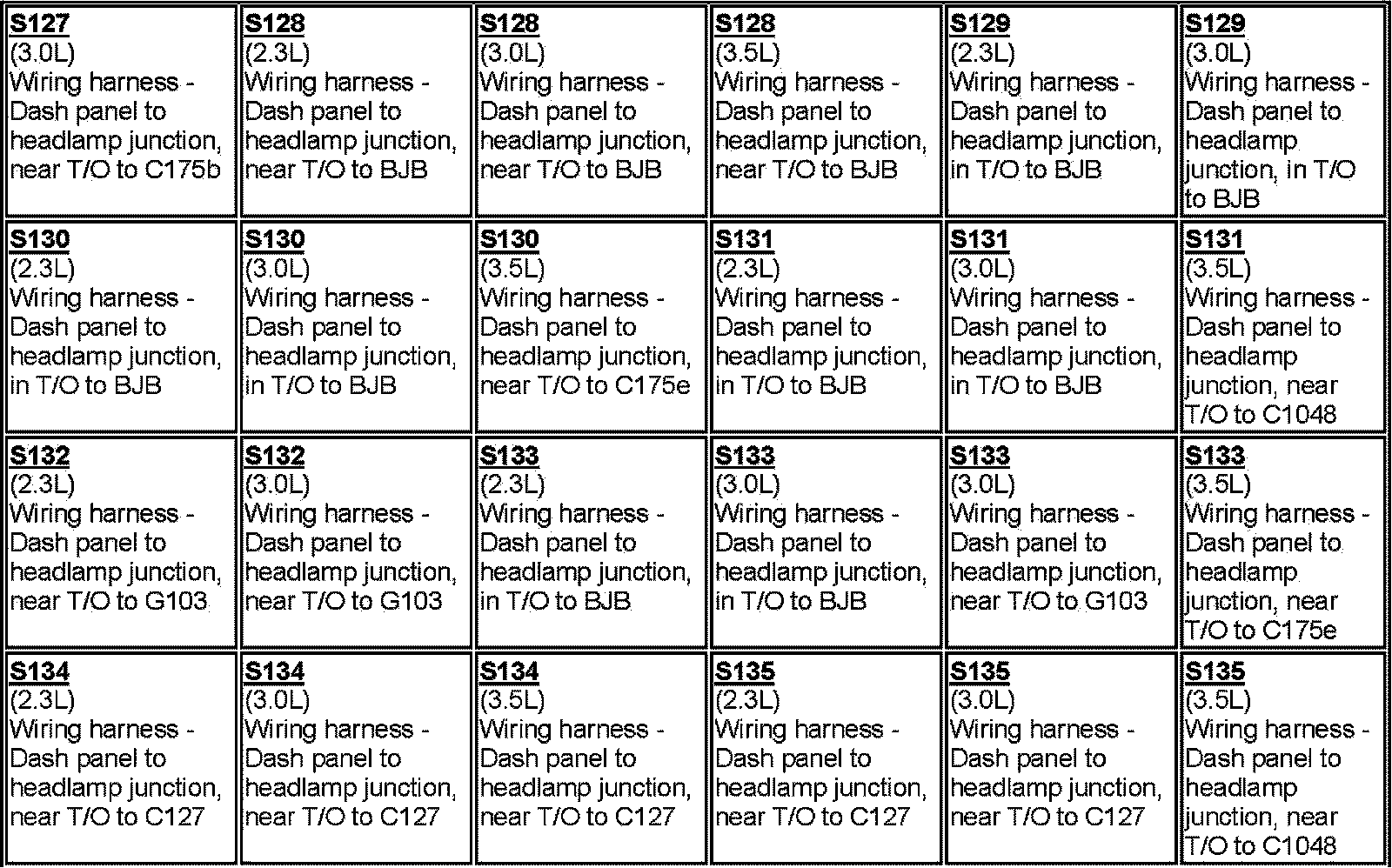

S127-S135:

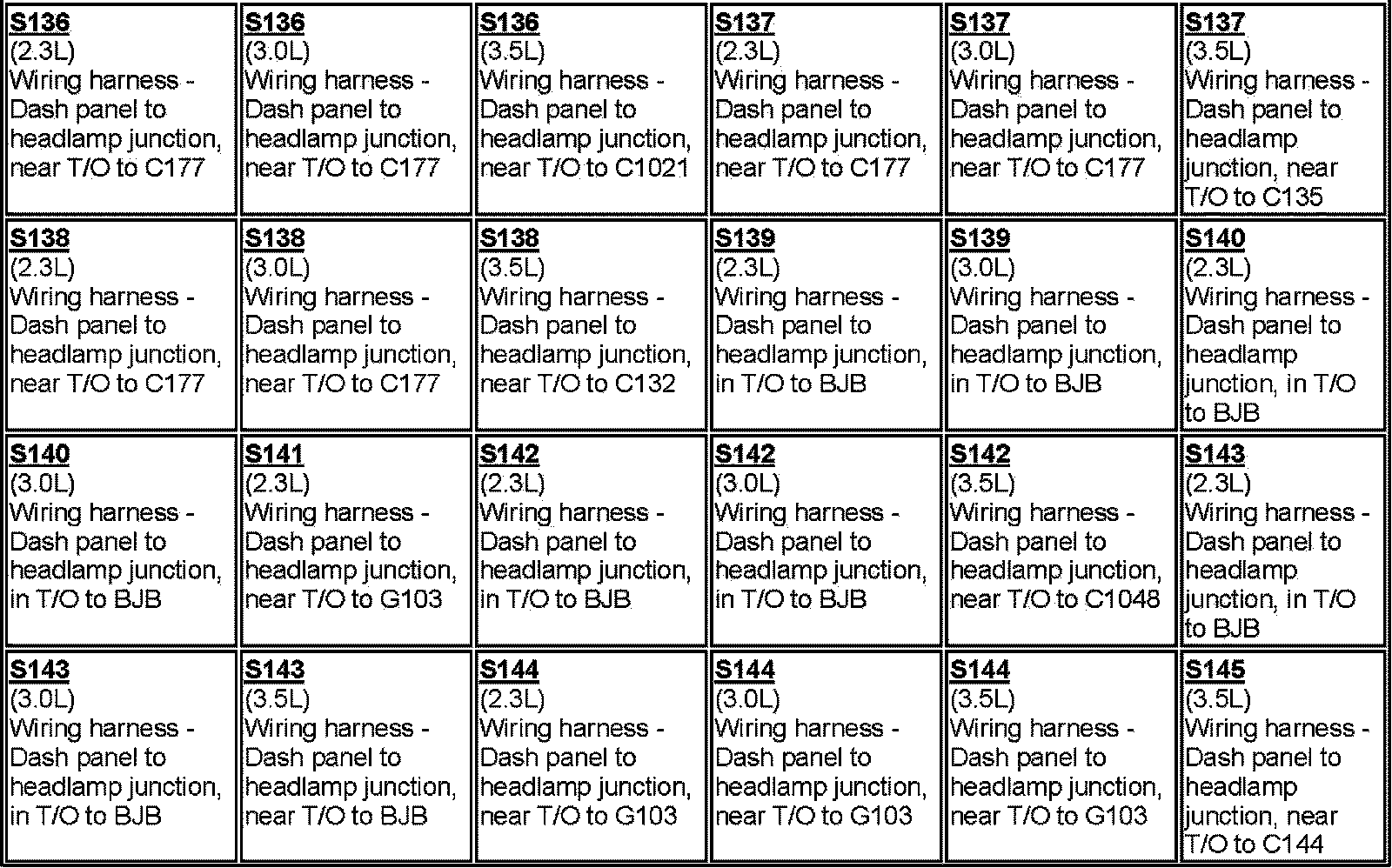

S136-S145:

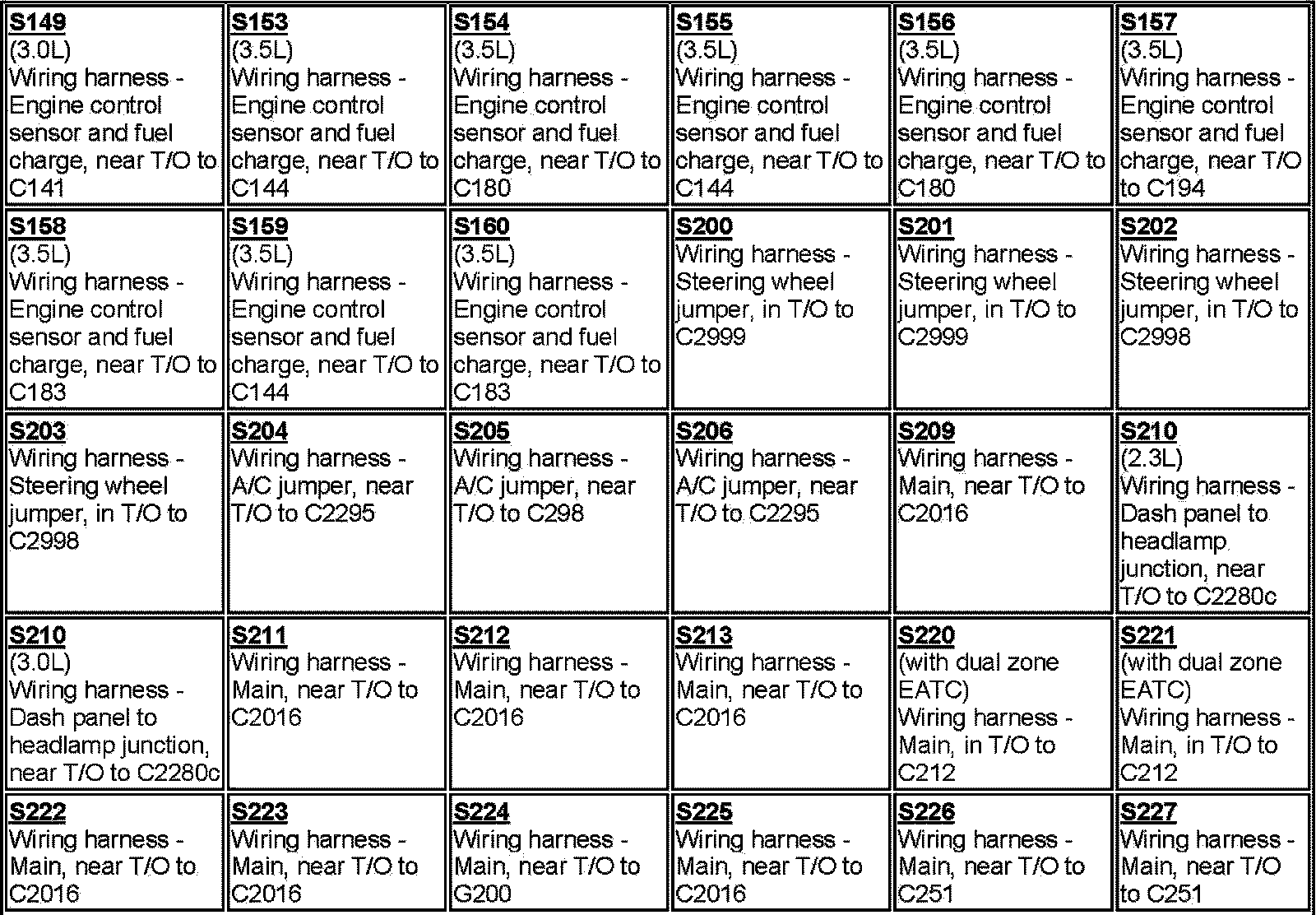

S149-S227:

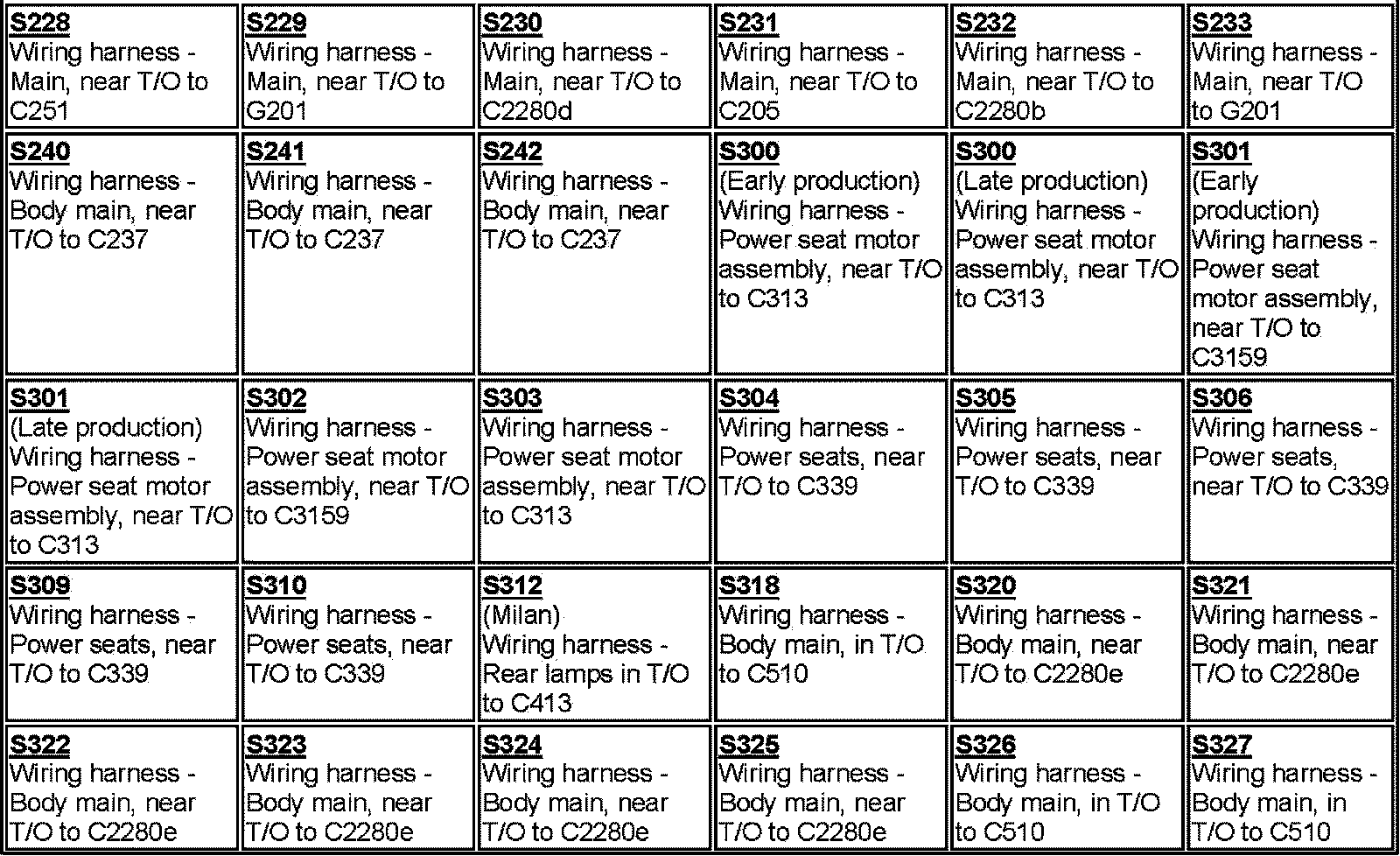

S228-S327:

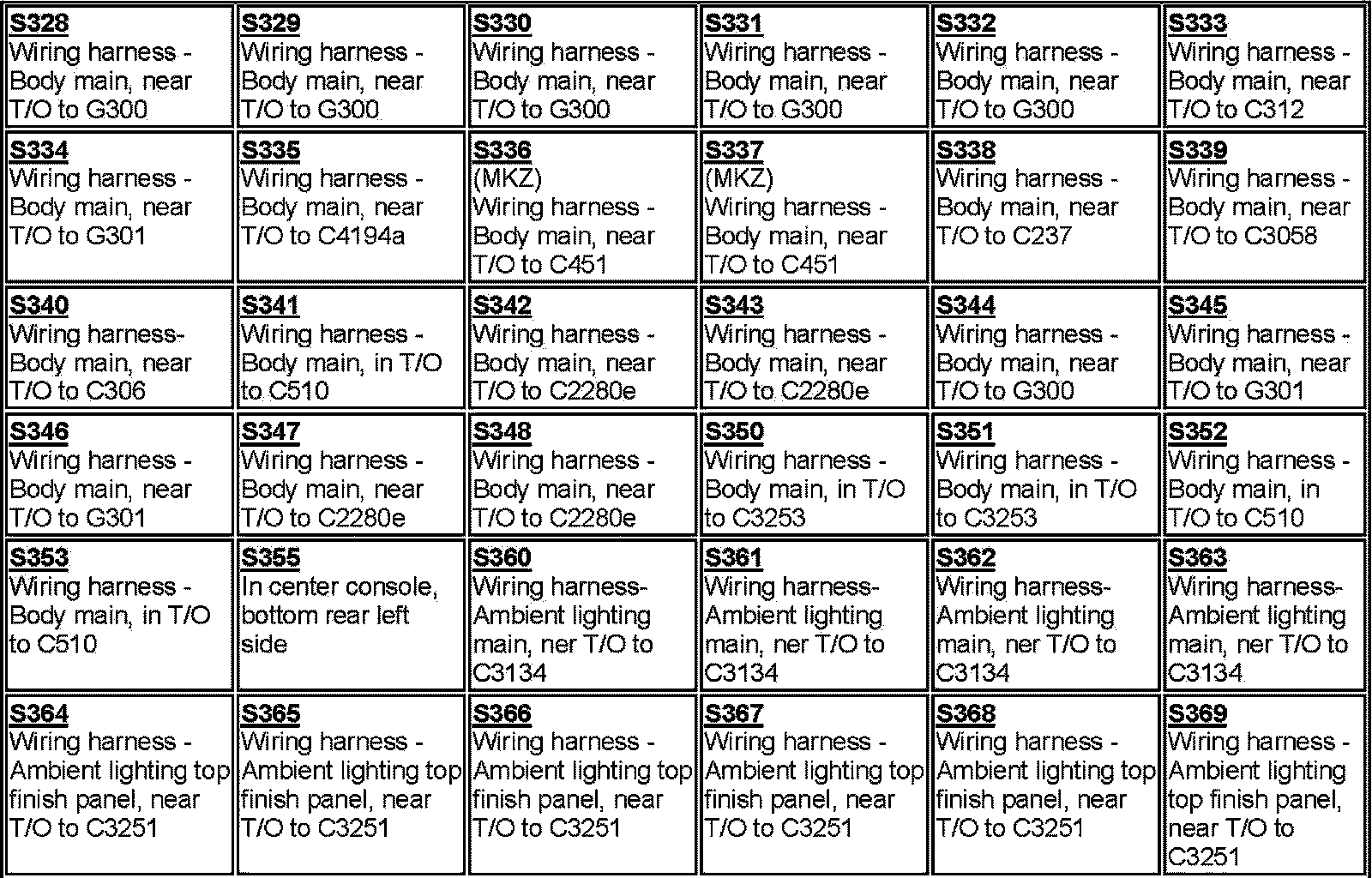

S328-S369:

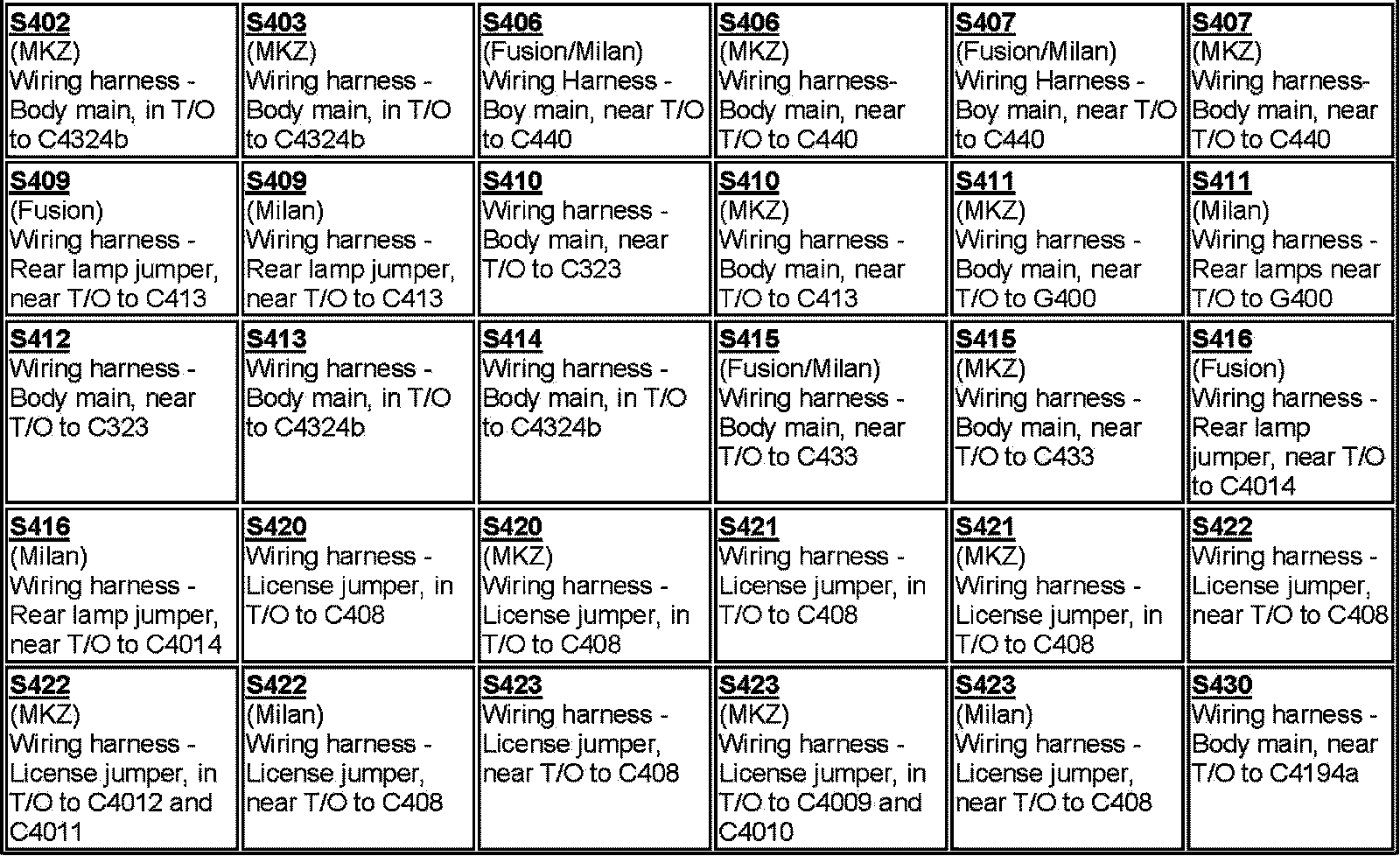

S402-S430:

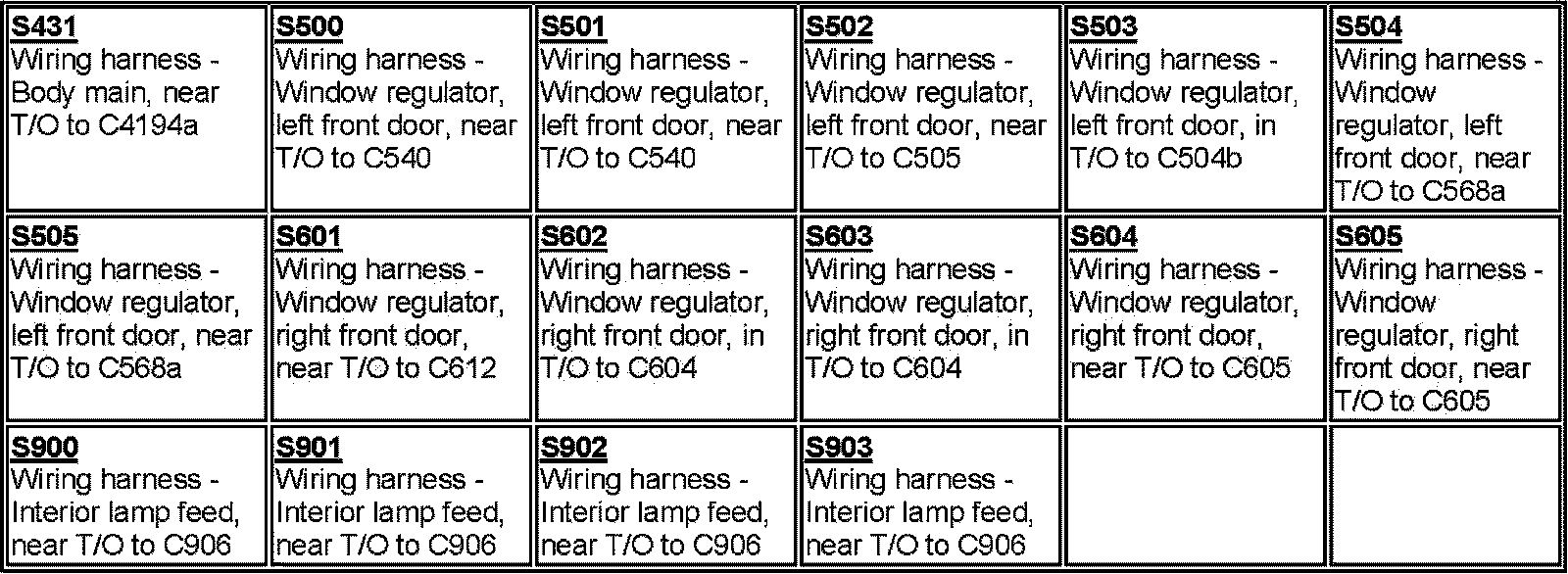

S431-S903:
