Fuel Tank and Filler Pipe - Exploded View

Fuel Tank and Filler Pipe - Exploded View

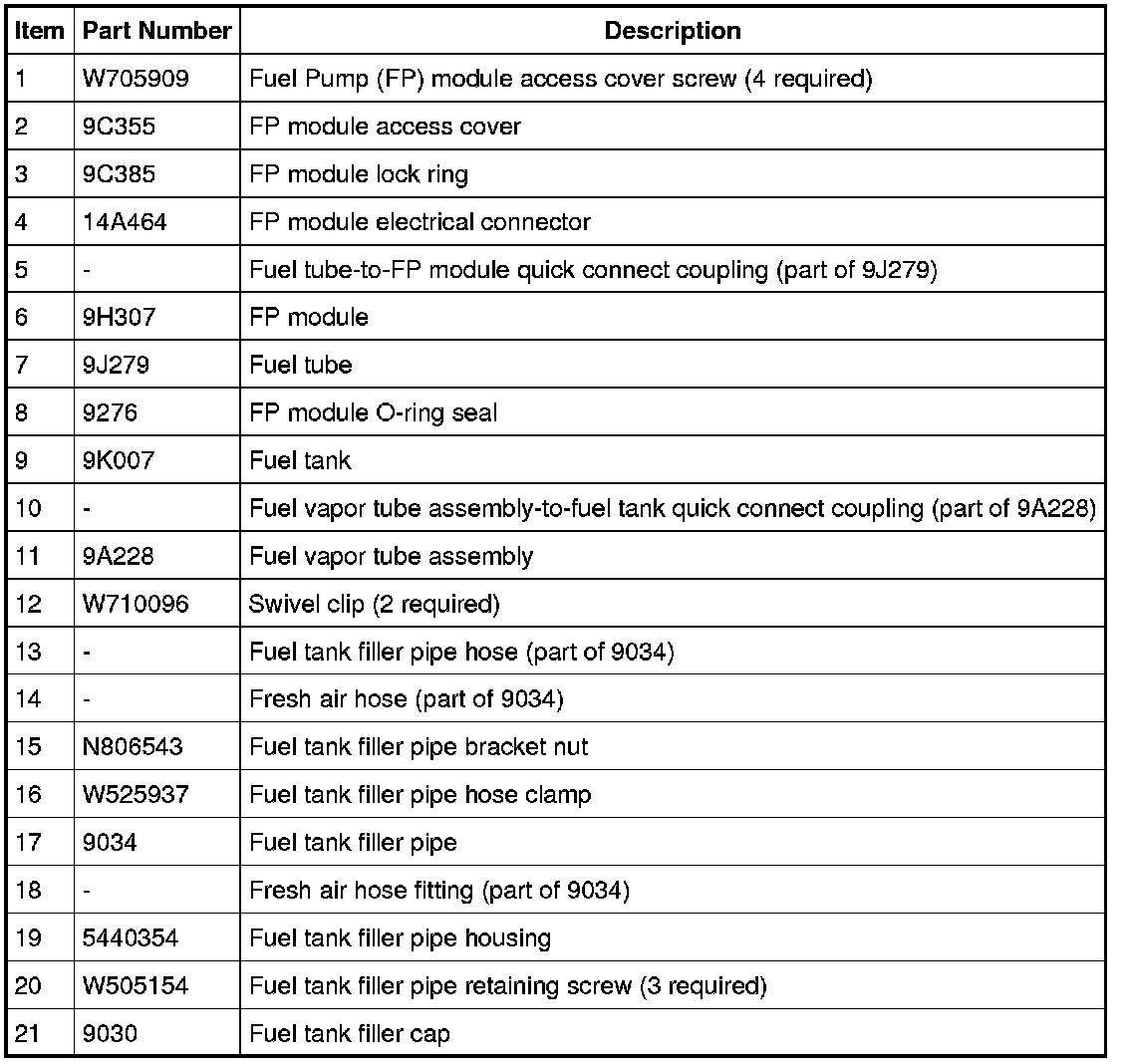

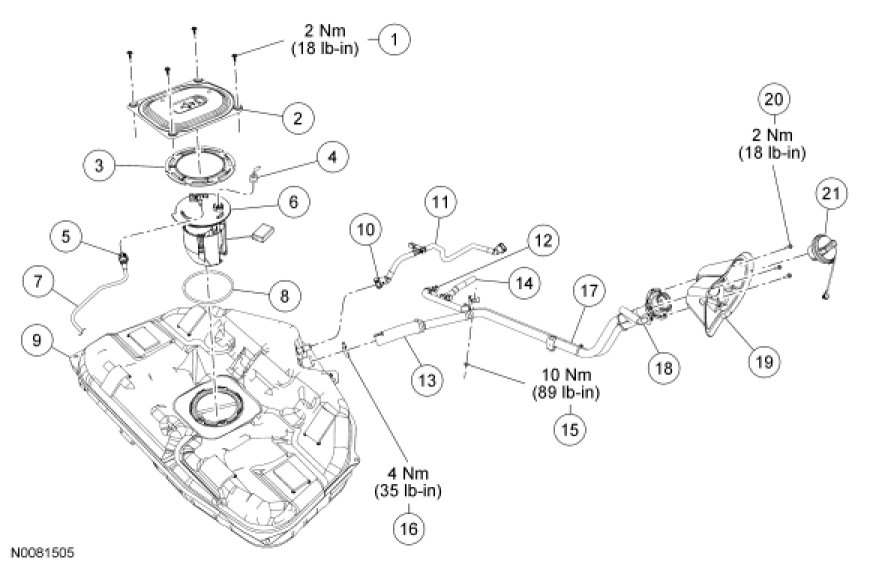

Front Wheel Drive (FWD) Vehicles (View 1 of 2)

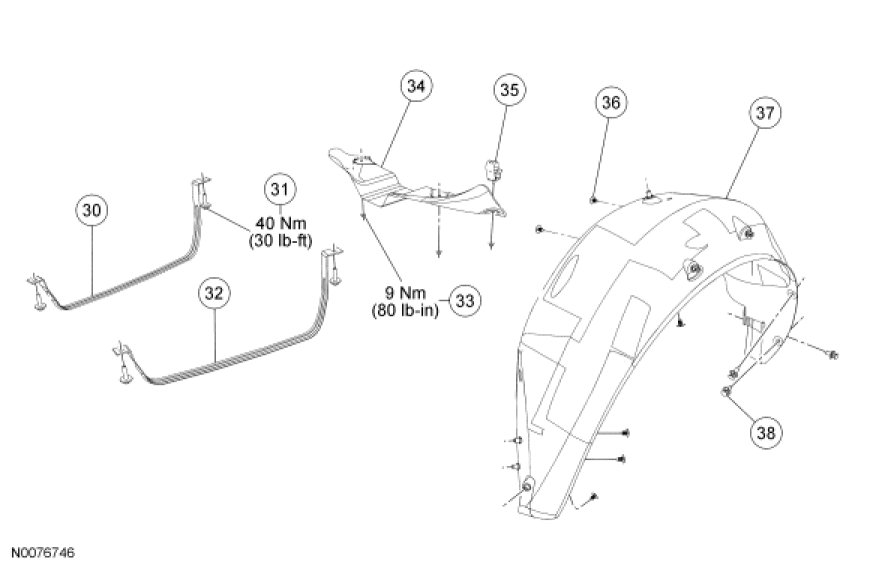

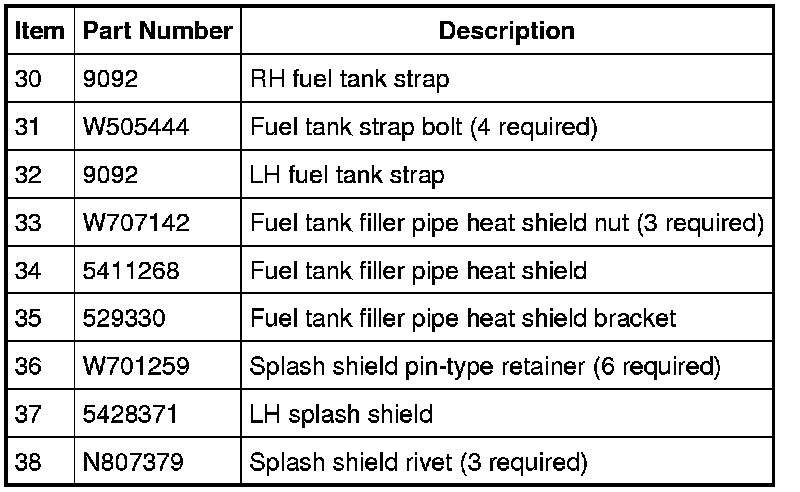

FWD Vehicles (View 2 of 2)

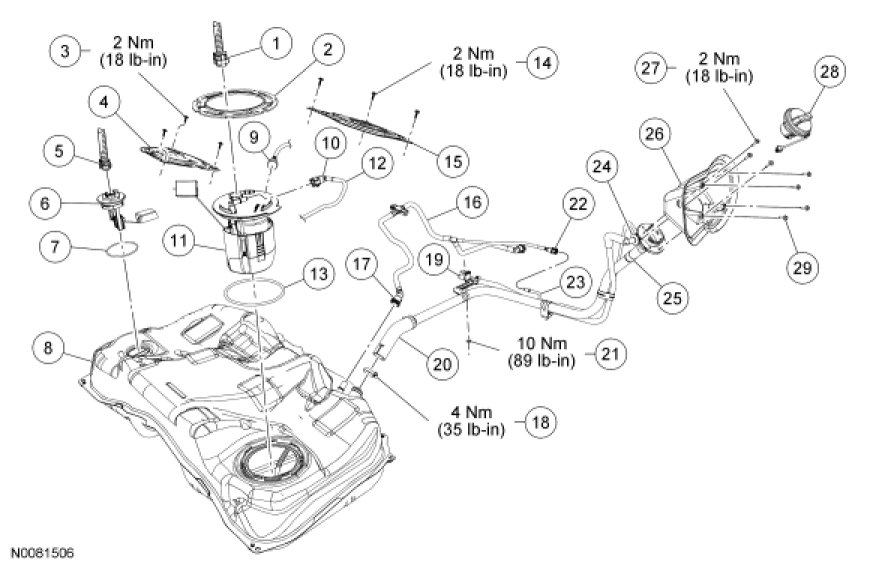

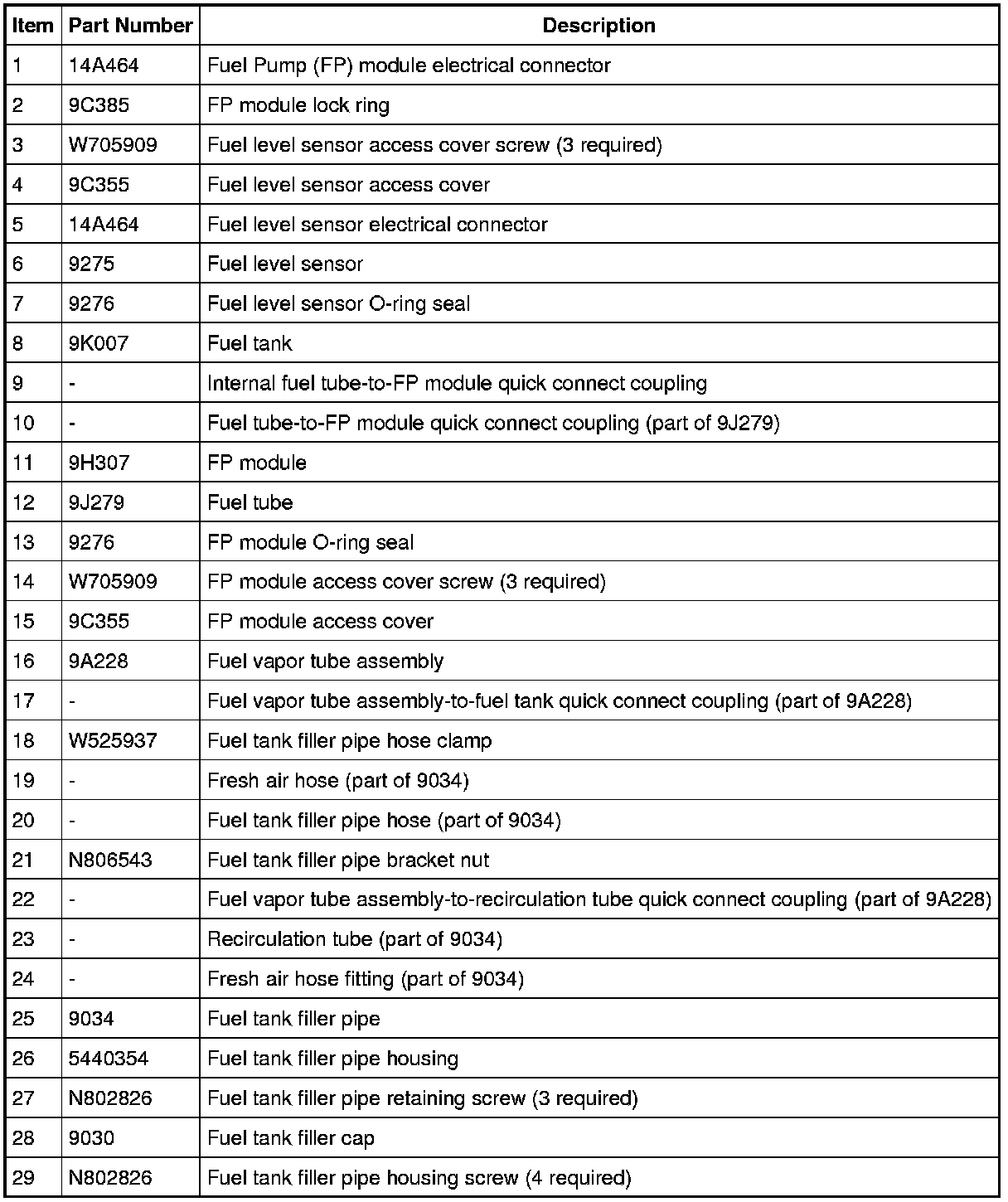

All-Wheel Drive (AWD) Vehicles (View 1 of 2)

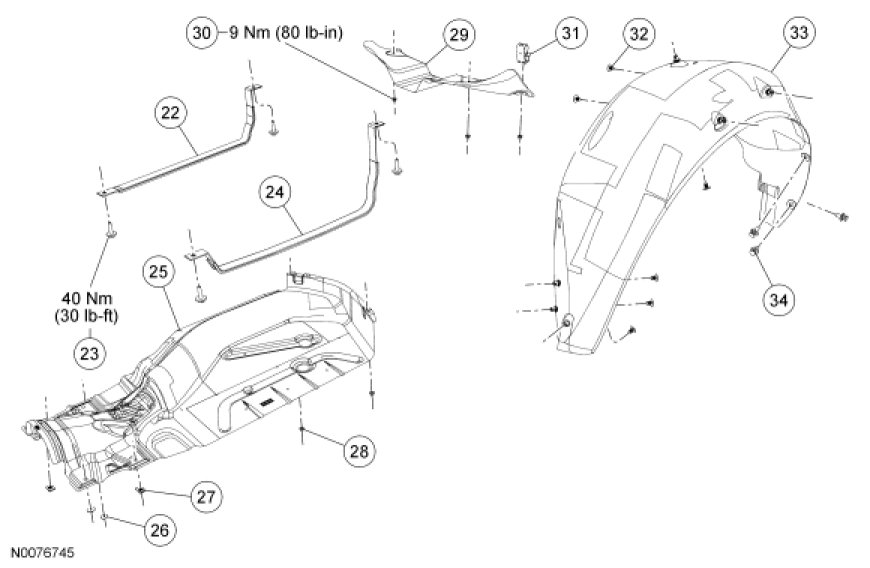

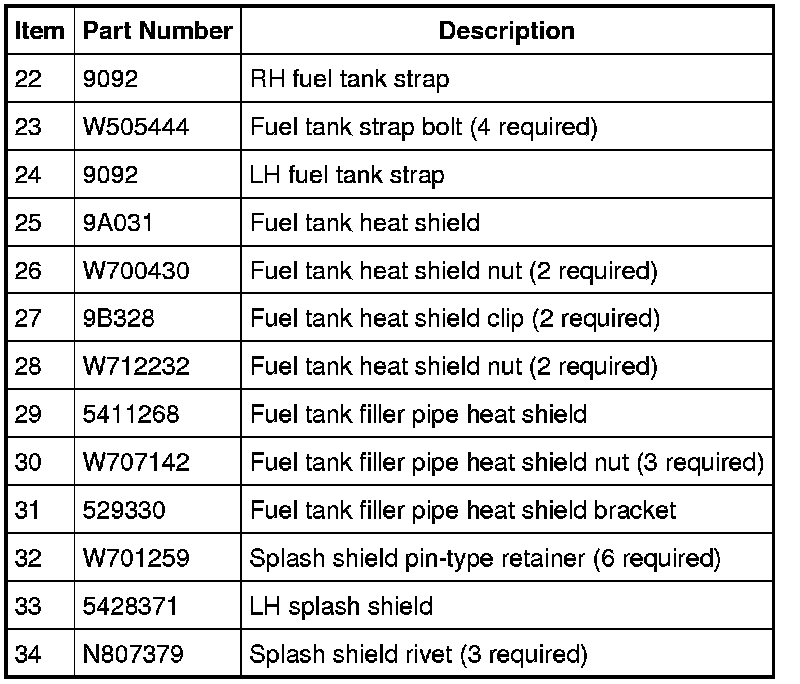

AWD Vehicles (View 2 of 2)









1. For additional information, refer to the procedures.
