Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor













Removal and Installation

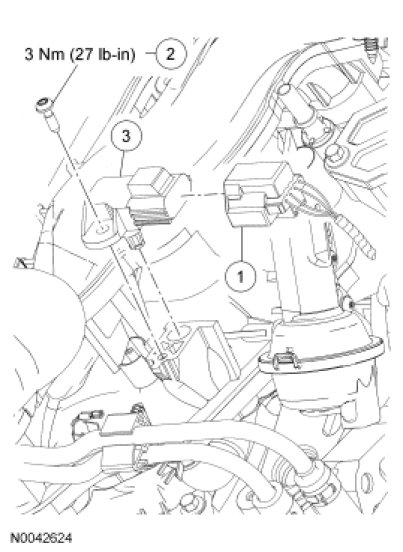

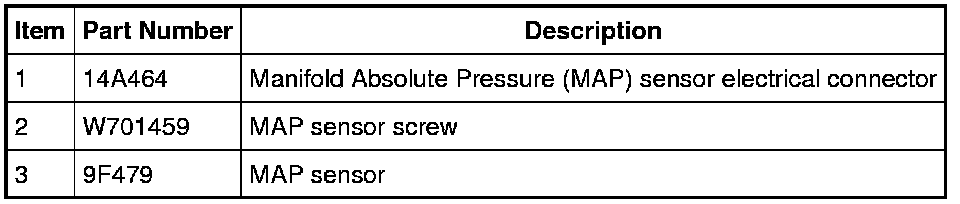

1. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.

2. Remove the screw and the MAP sensor.
- To install, tighten to 3 Nm (27 lb-in).

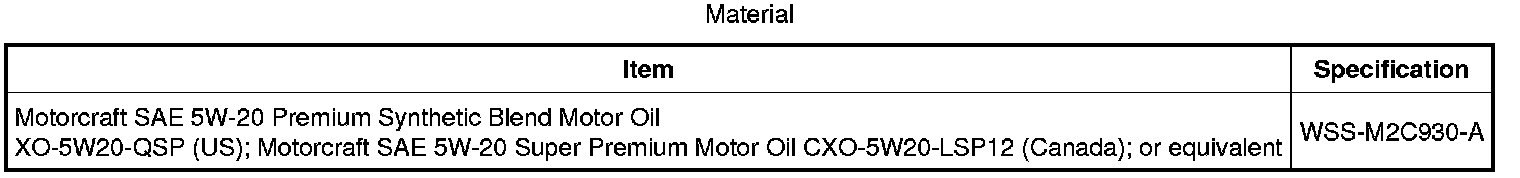

3. NOTE: Lubricate the MAP sensor O-ring seal with clean engine oil.

To install, reverse the removal procedure.
