QE - Electronic Throttle Control (ETC) System
PINPOINT TEST QE: ELECTRONIC THROTTLE CONTROL (ETC) SYSTEM

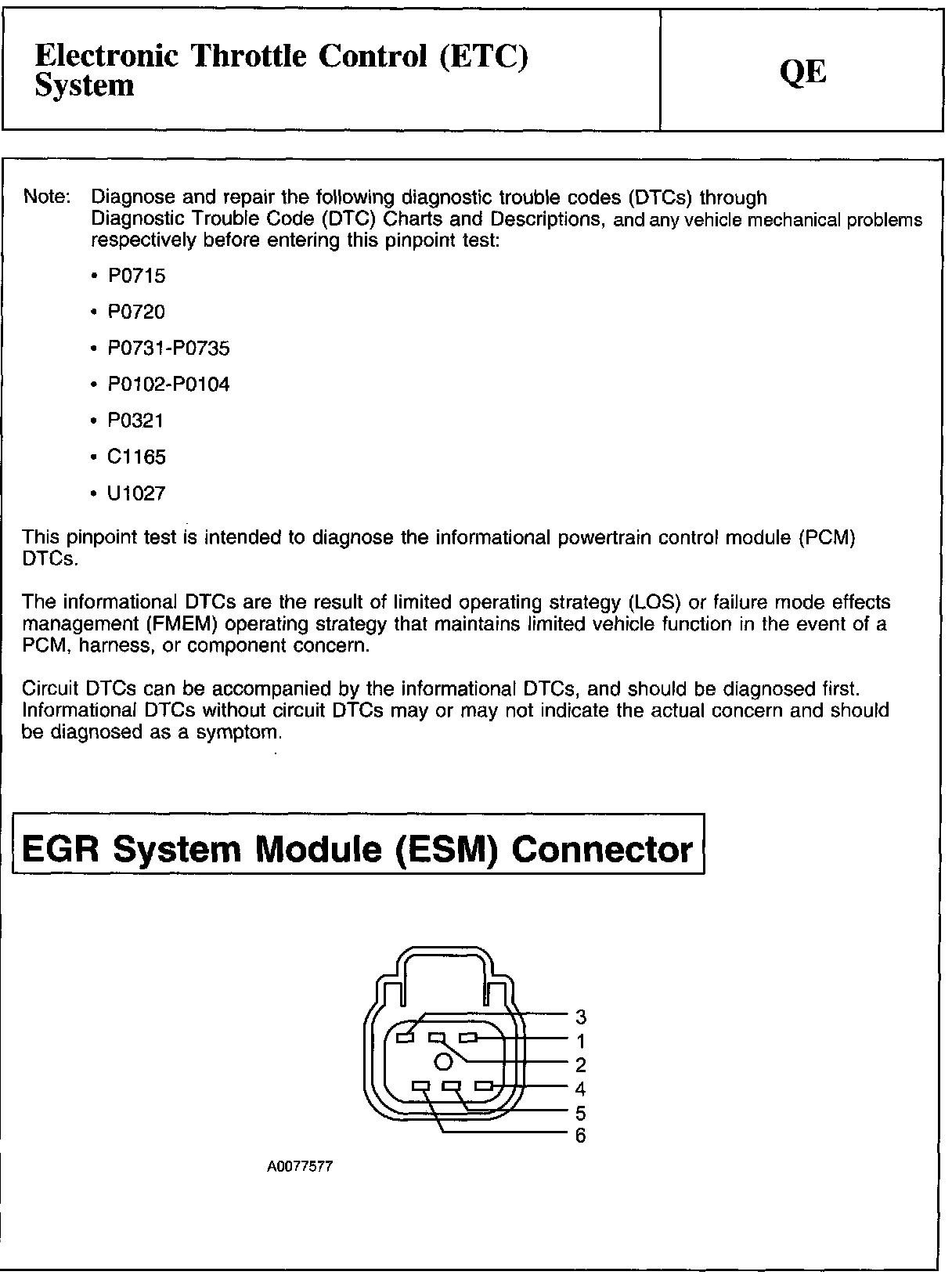

Note And EGR System Module Connector:

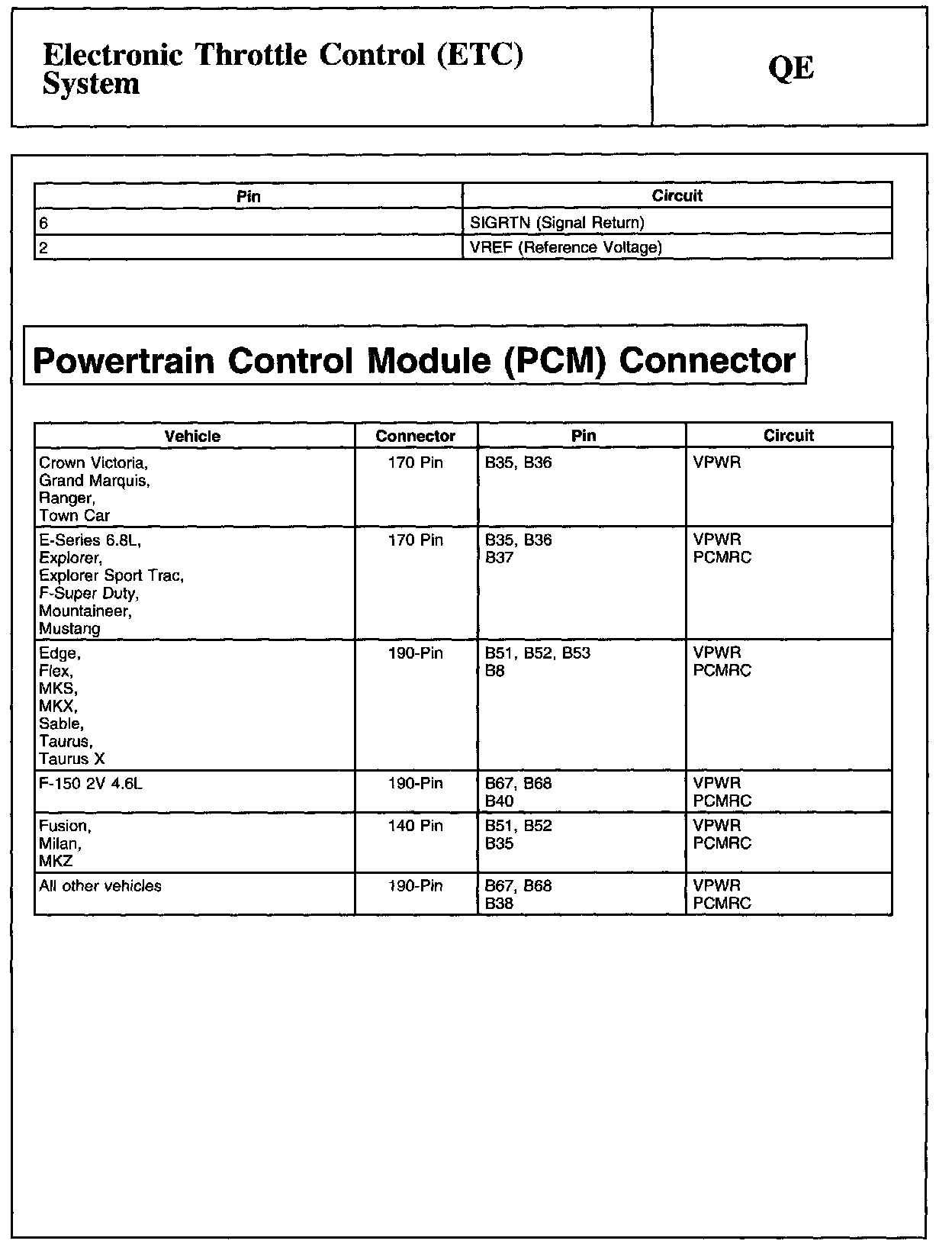

Powertrain Control Module Connector:

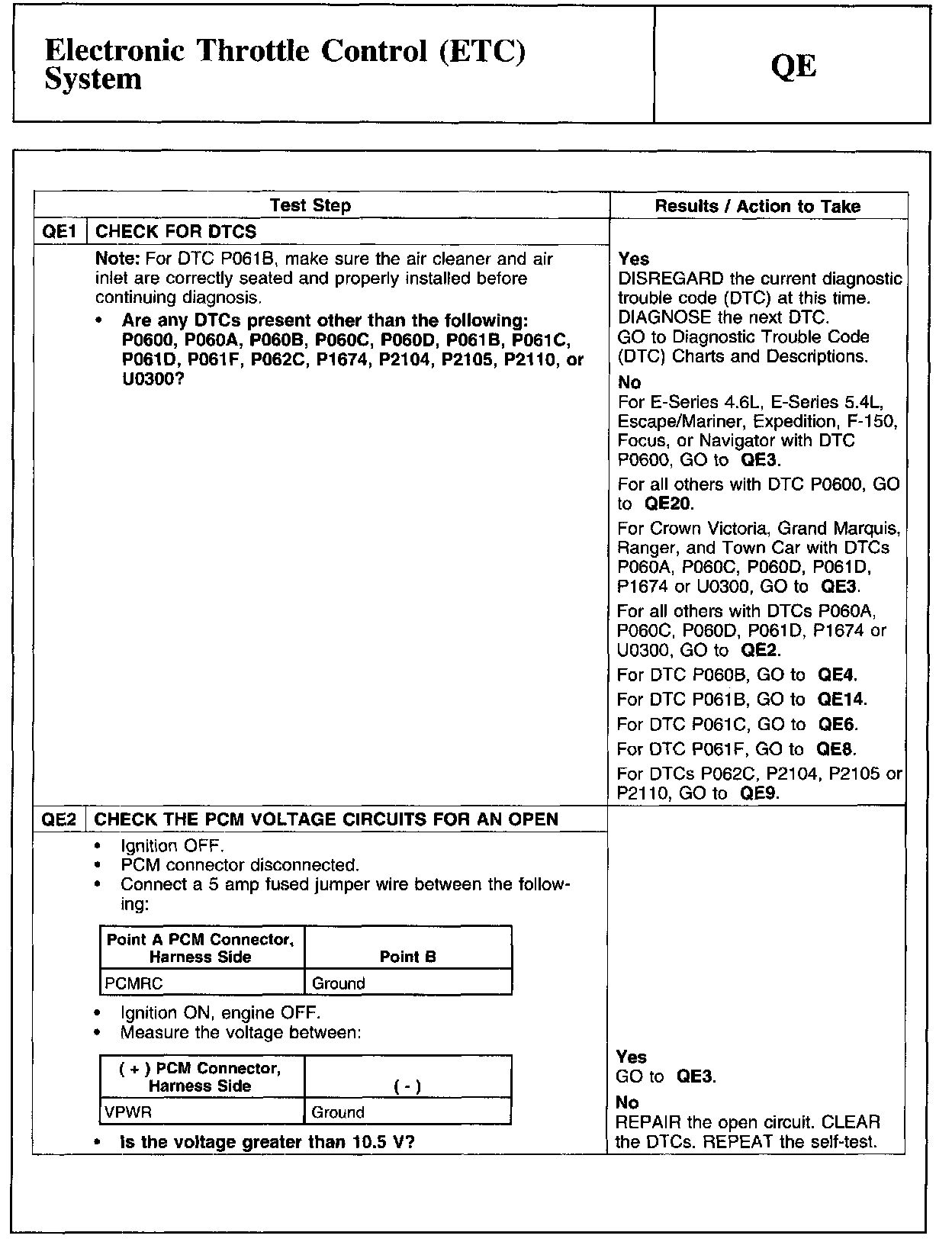

QE1-QE2:

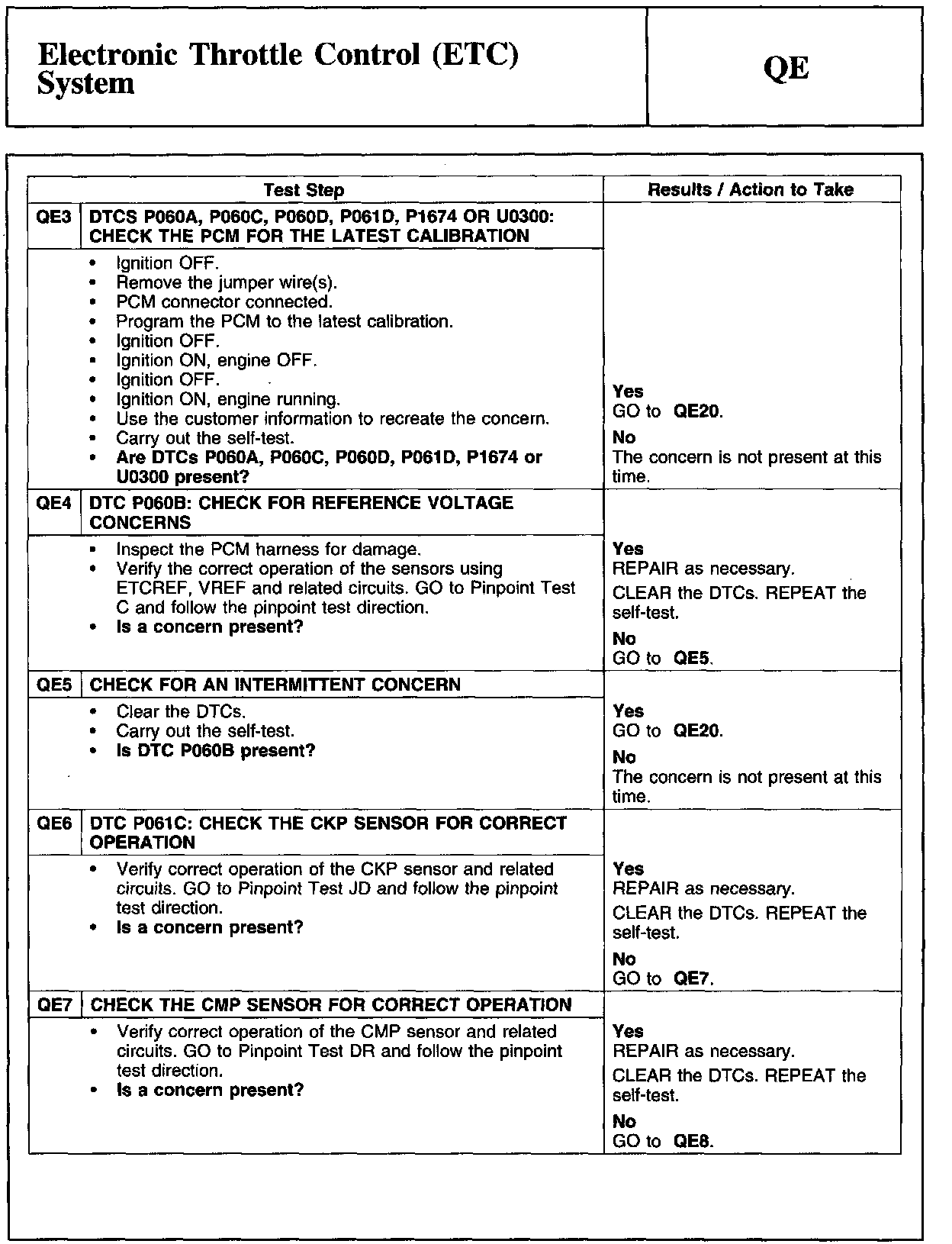

QE3-QE7:

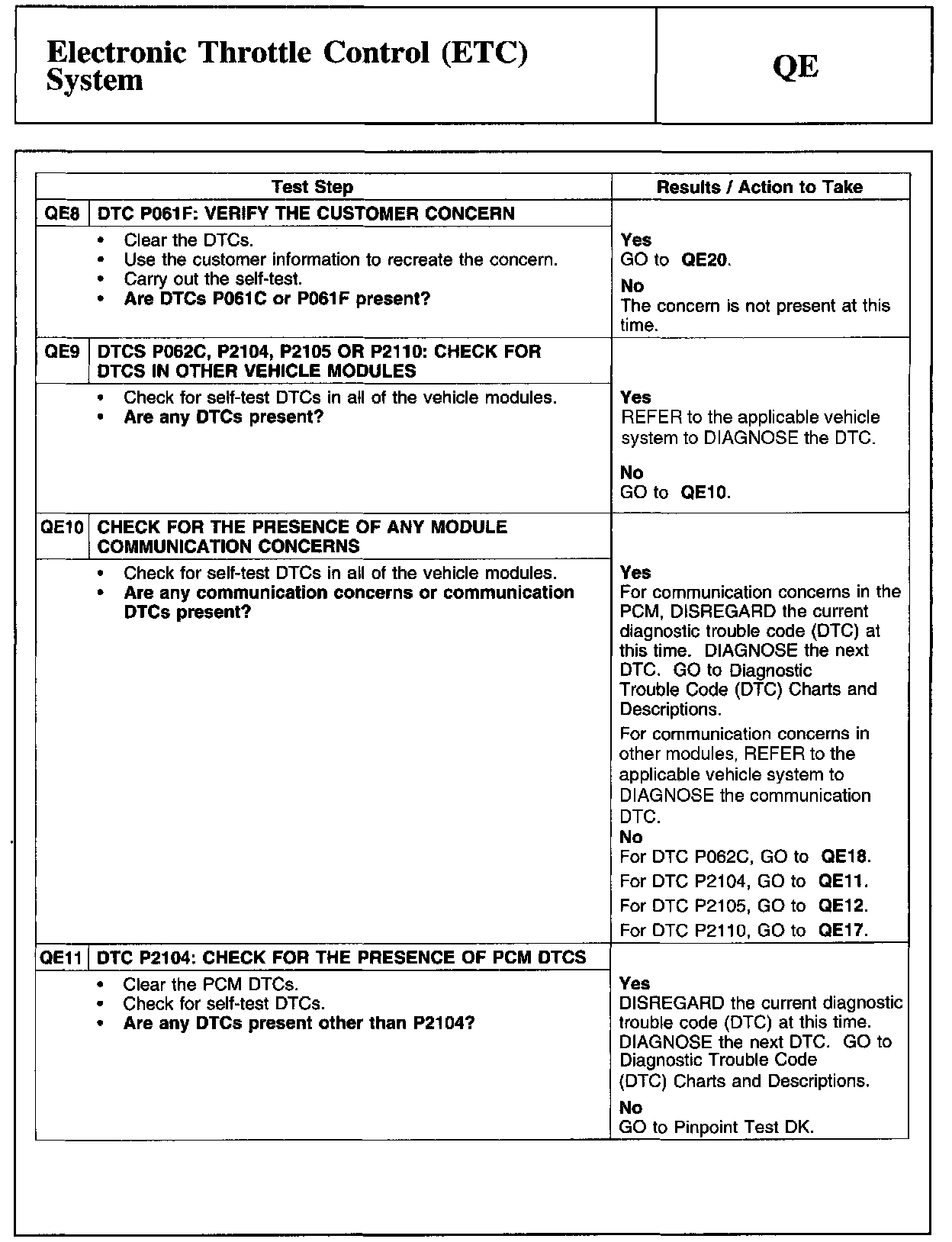

QE8-QE11:

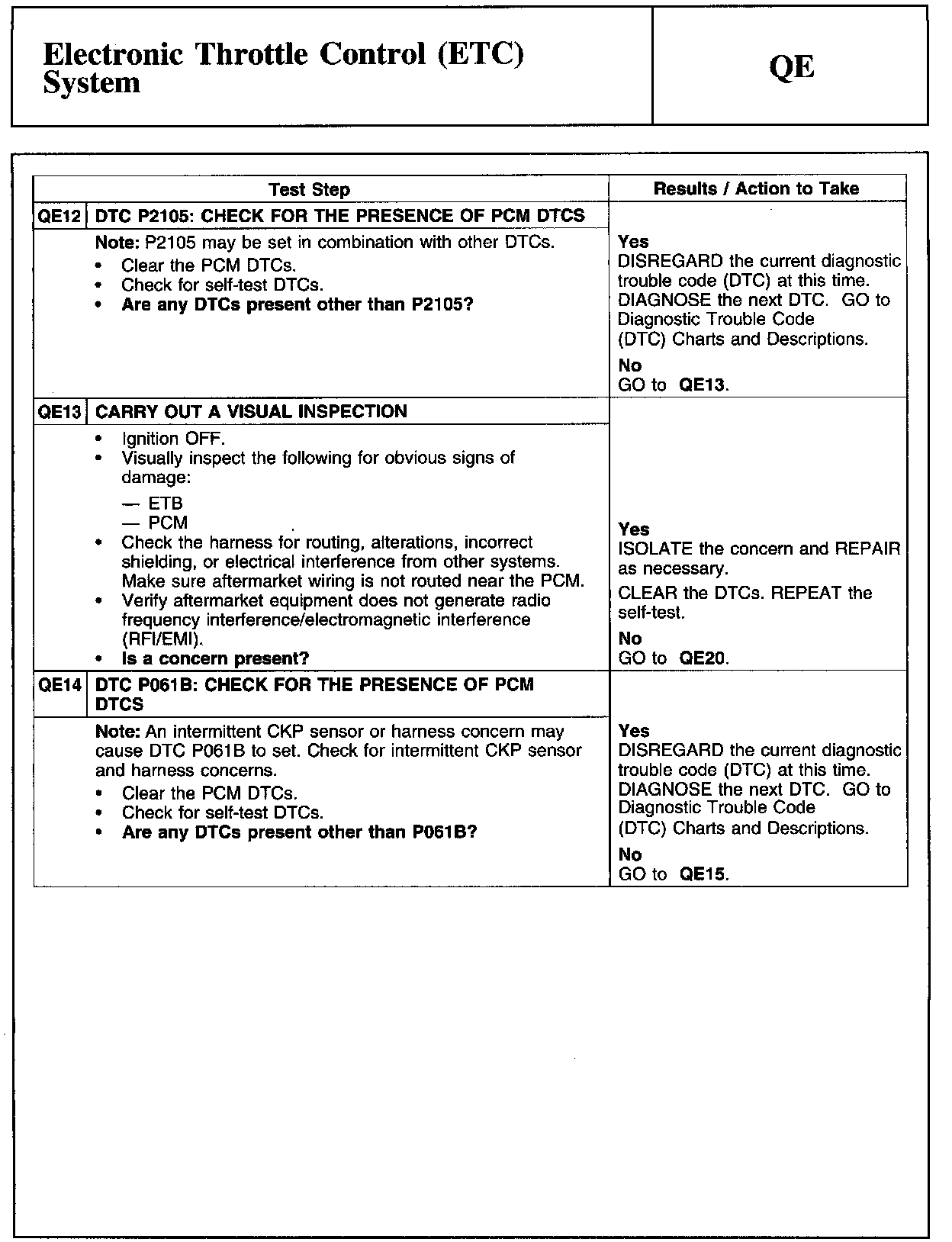

QE12-QE14:

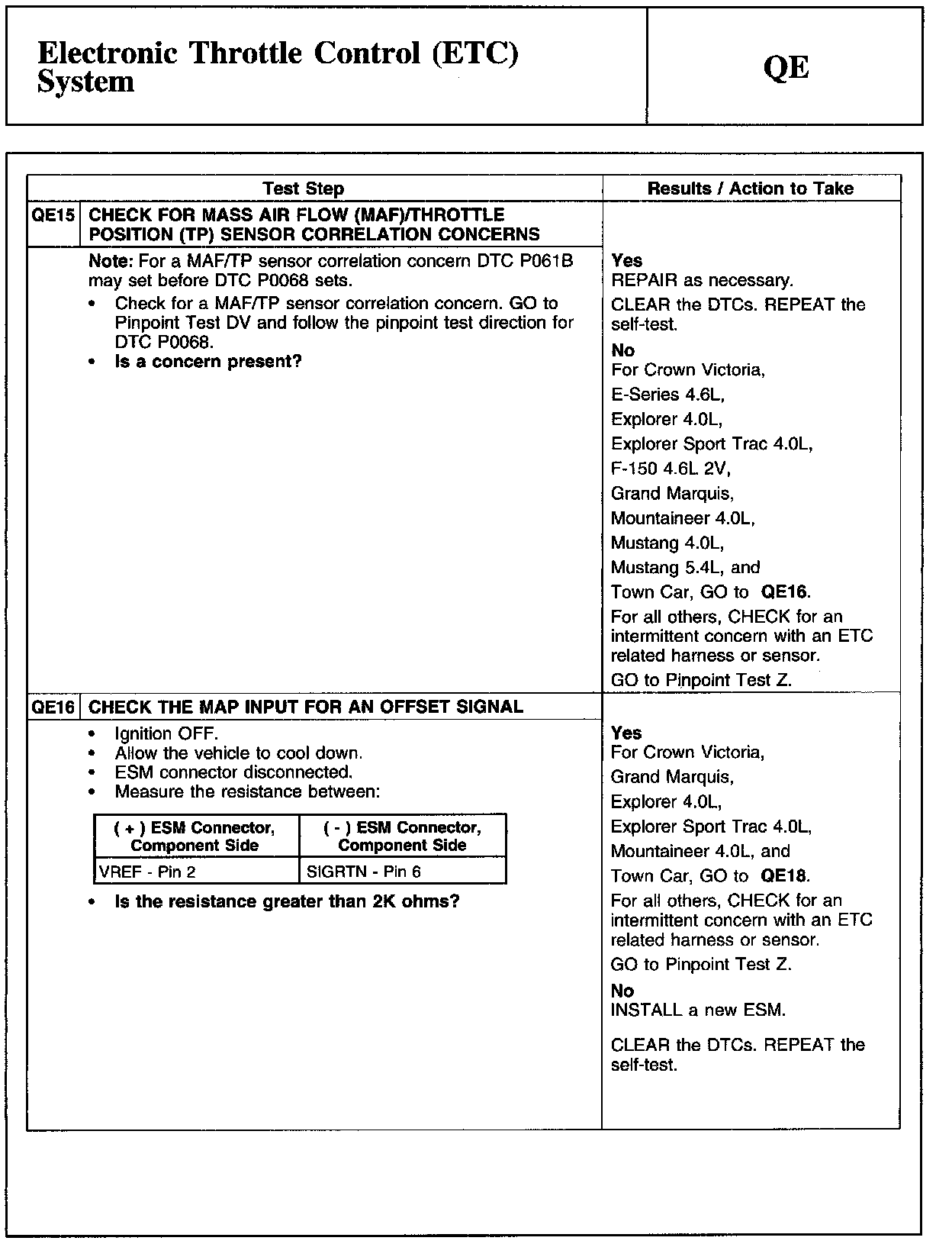

QE15-QE16:

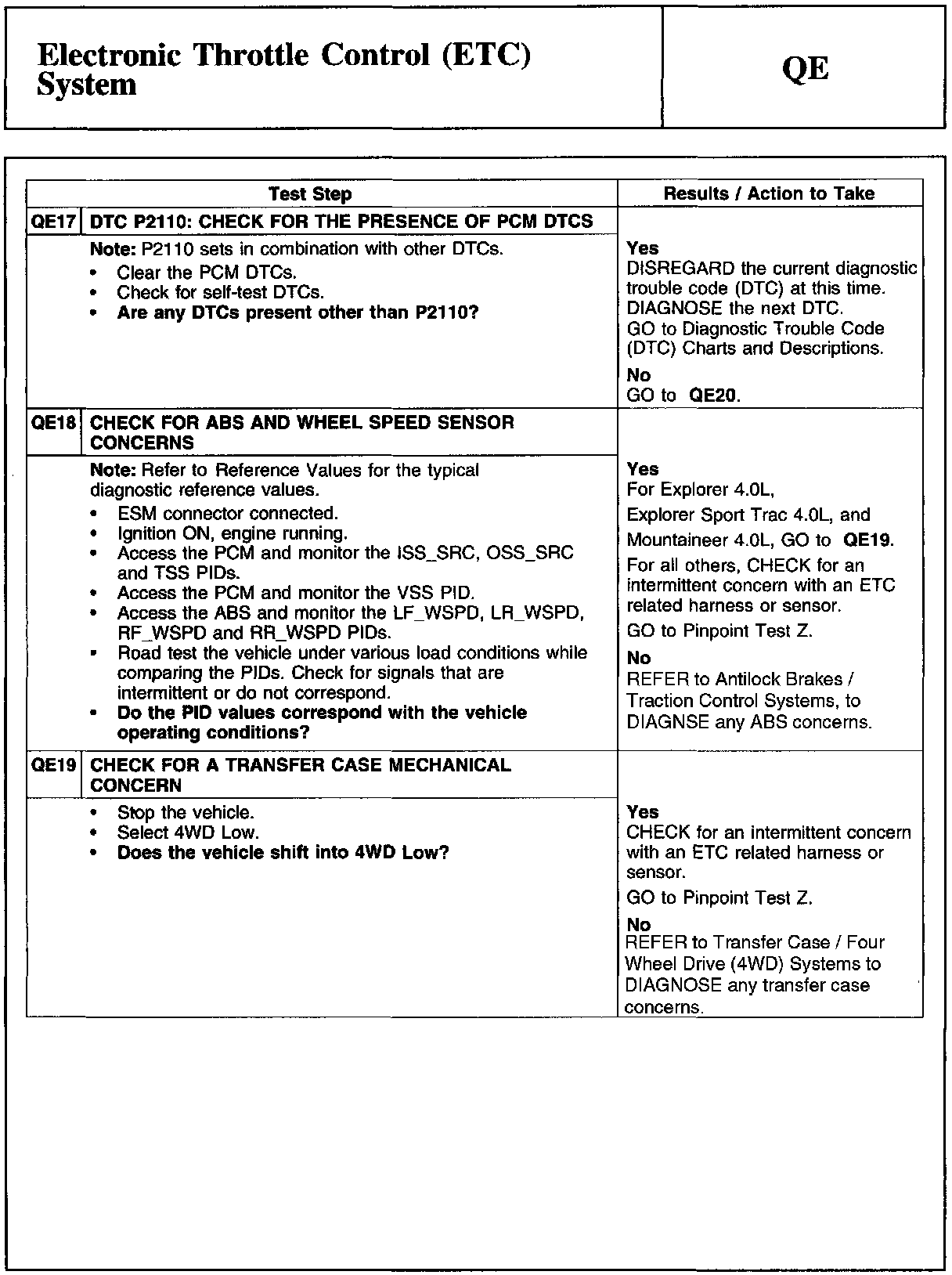

QE17-QE19:

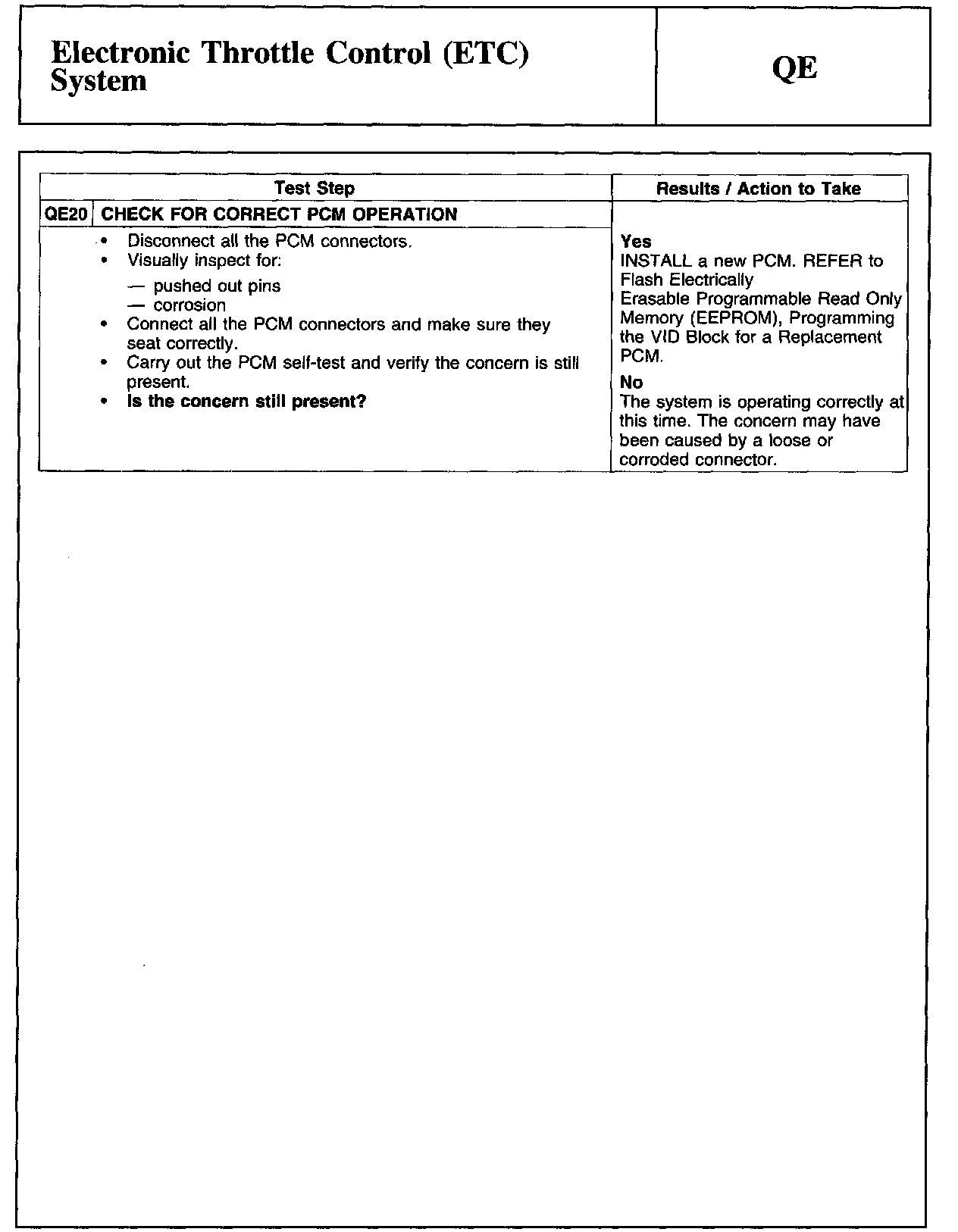

QE20:
