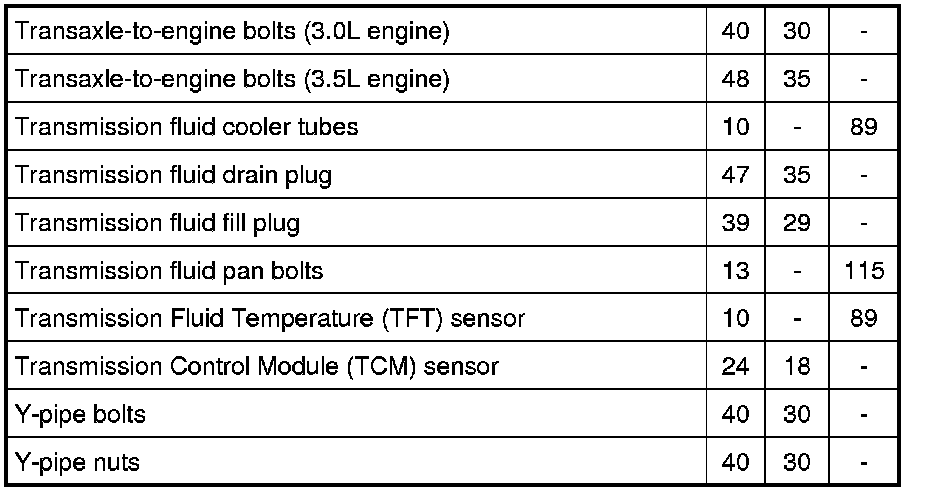

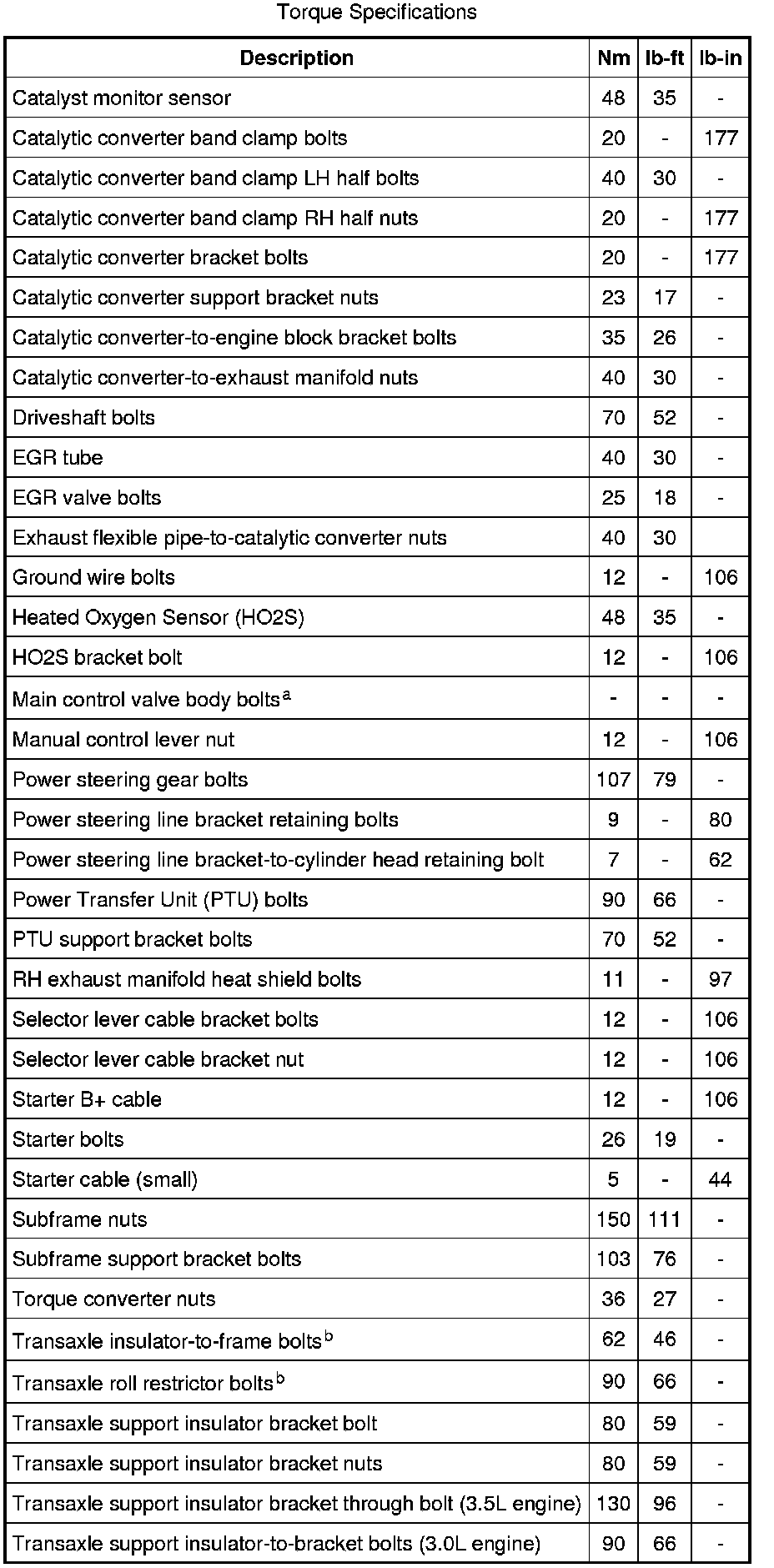

Torque Specifications

a Refer to the procedure.

b When reinstalling fasteners originally coated with loctite, clean the fasteners with a wire brush prior to applying new threadlock. Apply threadlock and sealer to threads of the bolt.
