Using Output State Control and Accessing PIDs

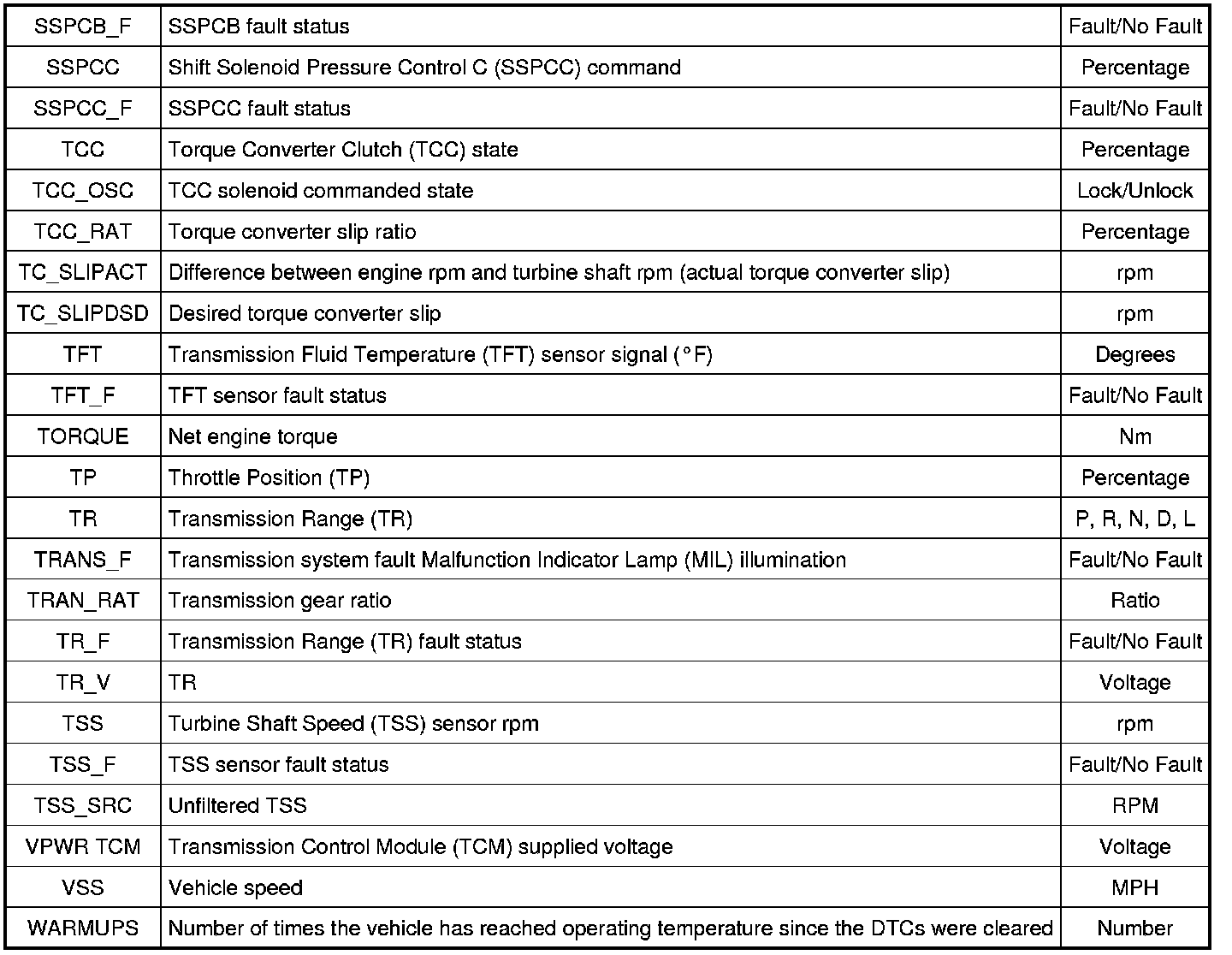

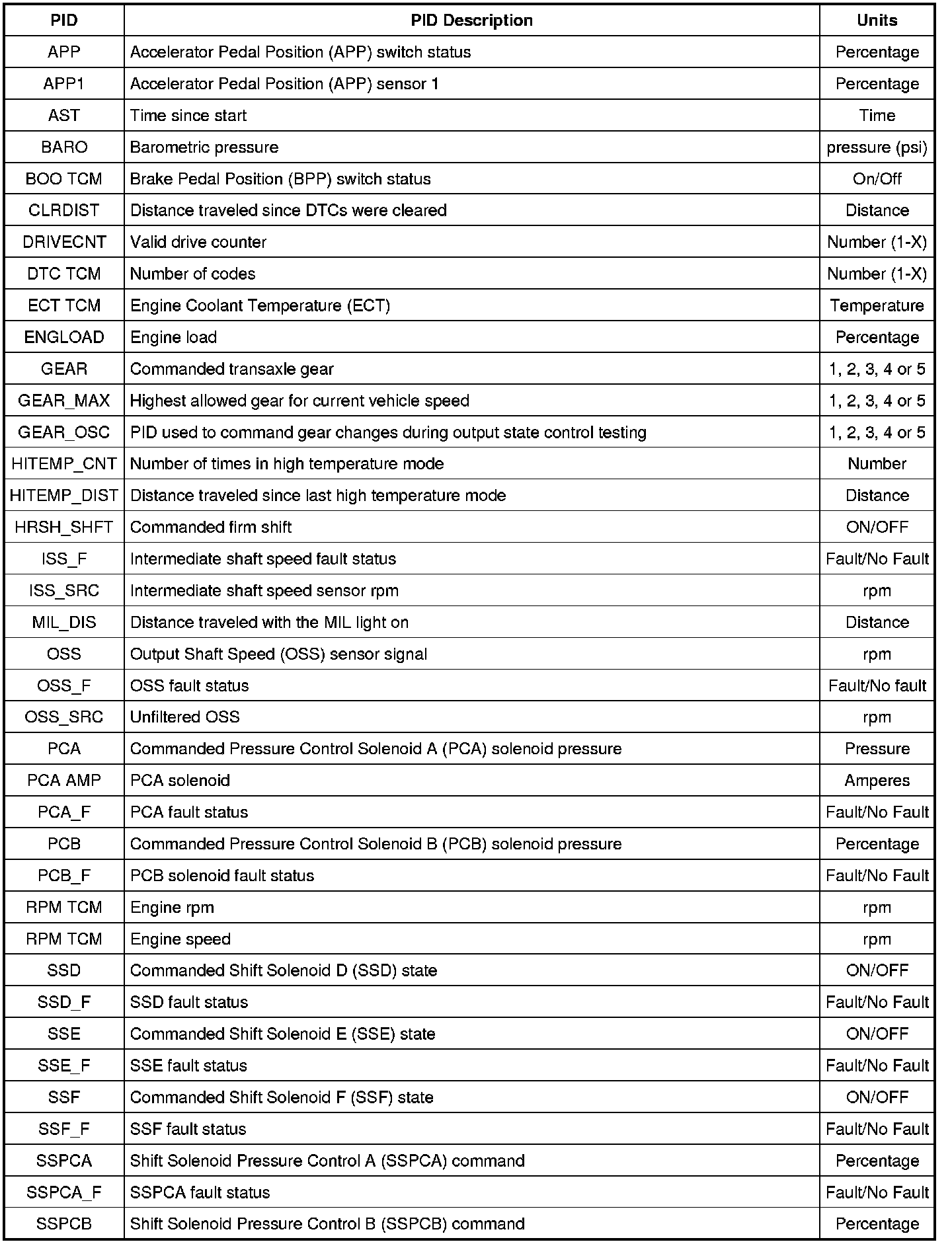

Diagnostic Parameters Identification (PID) Chart


Using Output State Control and Accessing PIDs

To confirm that the output state control value was sent by the scan tool and the PCM has accepted the output state control substitution, a corresponding PID for each output state control parameter must be monitored. Additional PIDs should be monitored to help the technician adequately diagnose the transmission.
