Symptom Related Diagnostic Procedures




Glass, Frames and Mechanisms

Symptom Chart

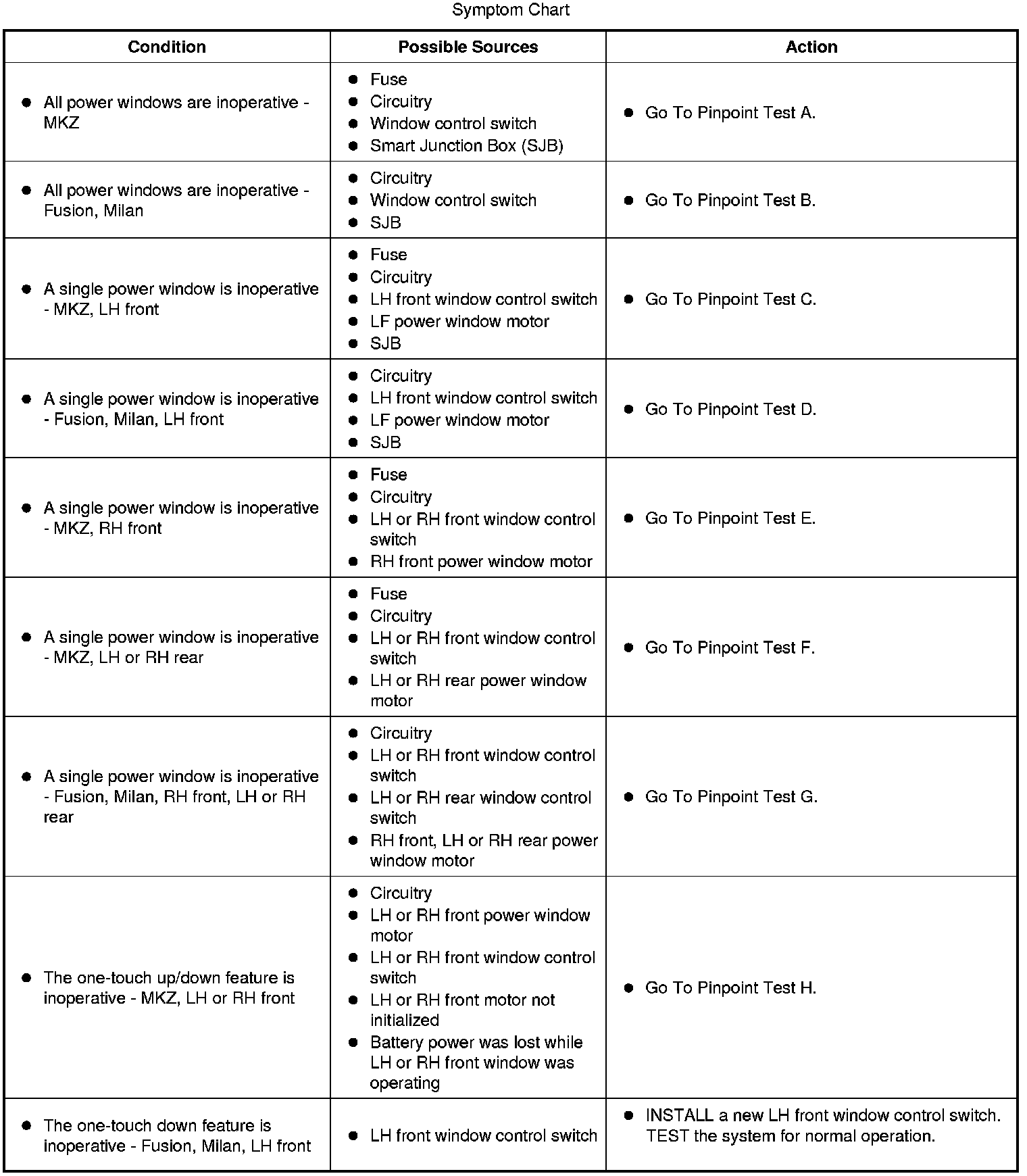

Symptom Chart (Part 1):

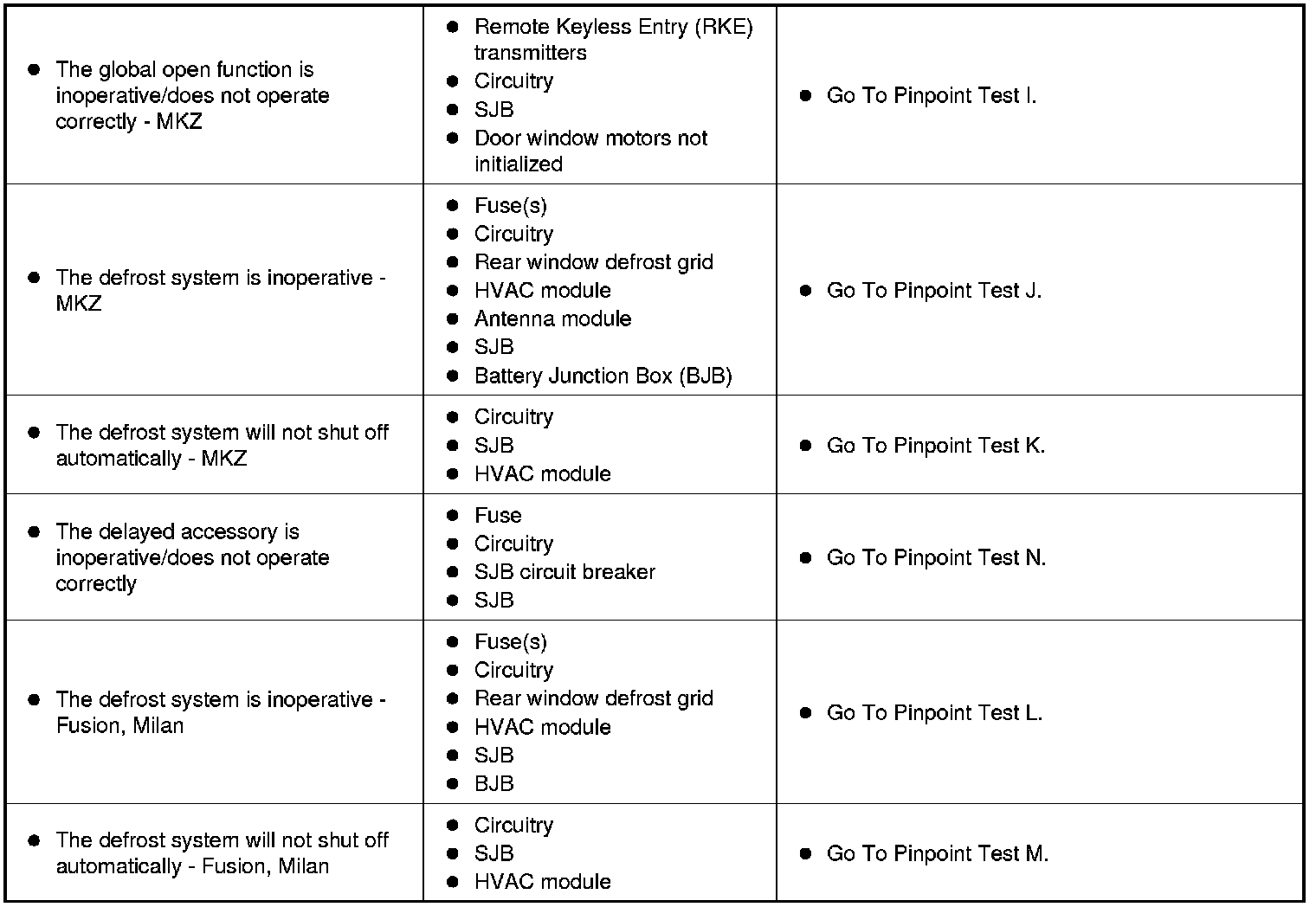

Symptom Chart (Part 2):
