Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor

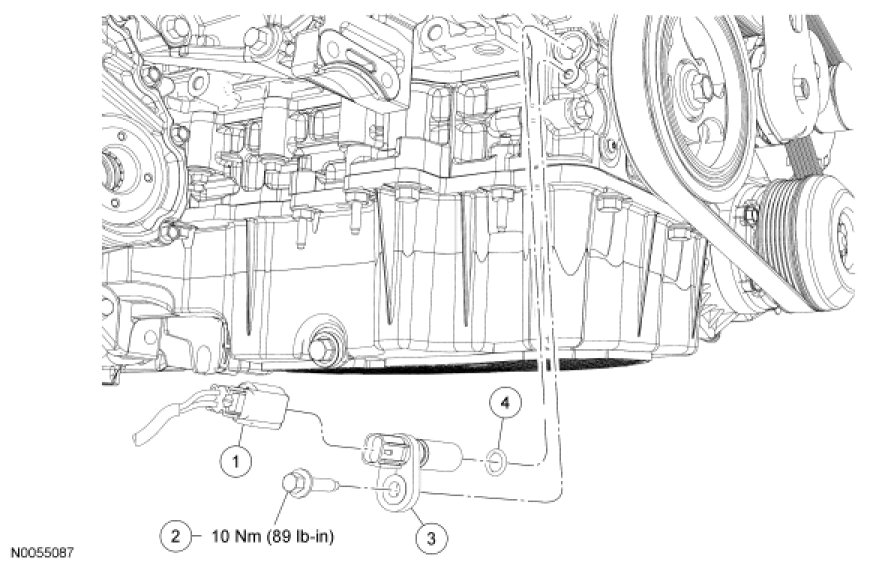

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

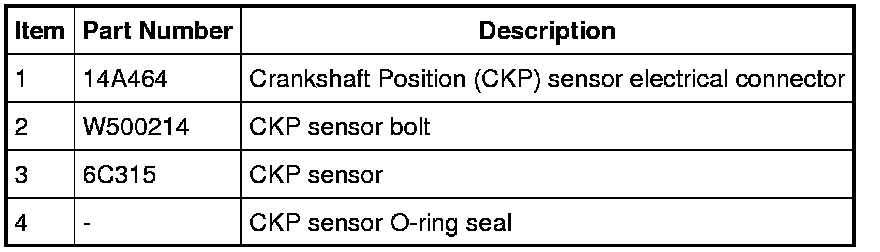

2. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

3. Remove the bolt and the CKP.
- To install, tighten to 10 Nm (89 lb-in).

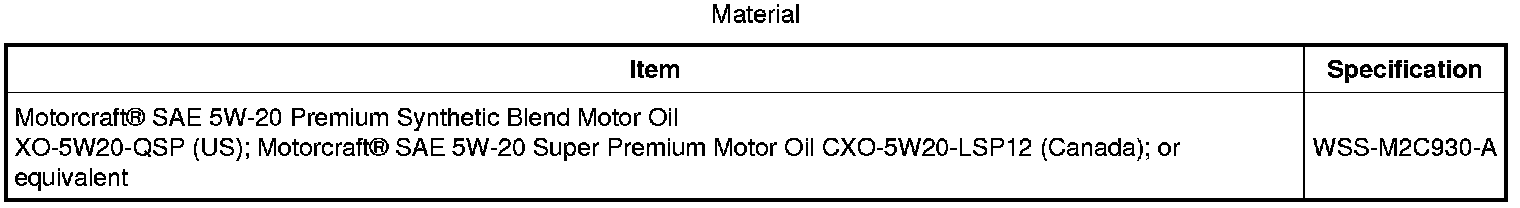

4. NOTE: Lubricate the CKP O-ring seal with clean engine oil.

To install, reverse the removal procedure.
