Powertrain Control Module (PCM): Notes

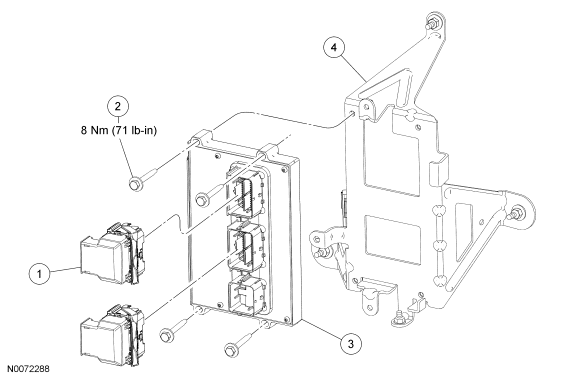

Fig 1: Exploded View Of Powertrain Control Module (PCM) With Torque Specification
GF0029450Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCM electrical connector (2 required)
2 W505428 PCM bolt (4 required)
3 12A650 PCM
4 12A692 PCM bracket
